SiBE05-312 Indoor Unit
Removal Procedure 113
2

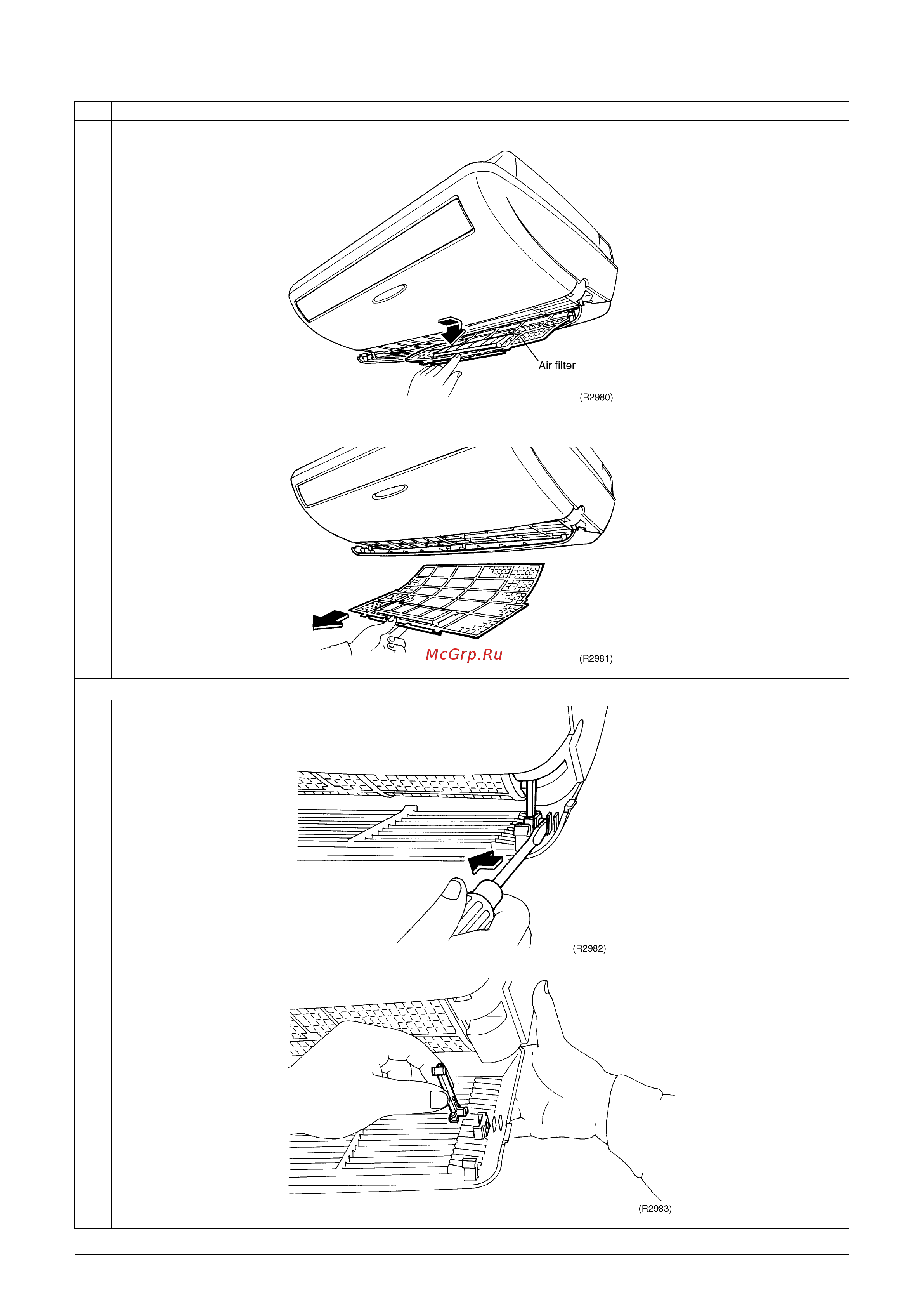

Holding the tab at the
center of filter frame,
pull the air filter forward.
3
Remove the air filter by
pulling along the slide
guide.
Installing filters can be done
easily by sliding-in along the
slide guide.
3. Remove the front grille.
1
Disengage the two
hooks (left and right
sides), using screw
driver.
Step Procedure Points
