Indoor Unit SiBE05-312
126 Removal Procedure
1.9 Removal of the Heat Exchanger
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
Be sure to conduct pump
down operation before
disassembling refrigerant
pipe.
To prevent the heat
exchanger from falling down,
the service work should be
done by two persons.

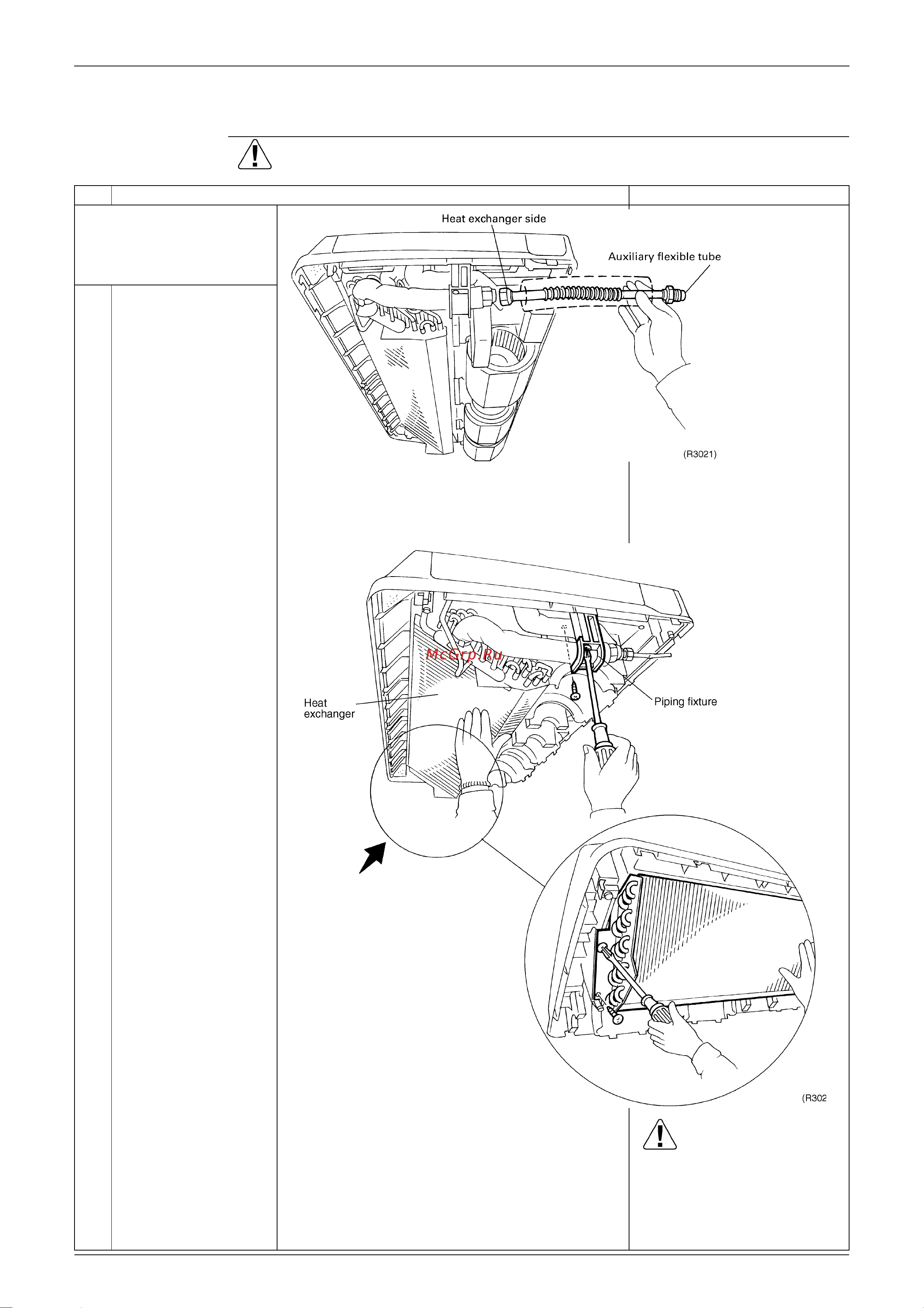

1
Disconnect the pipe at
the heat exchanger side
for the auxiliary flexible
tube.
2
Remove the two screws
for piping fixture.
Caution
When removing or reinstalling
heat exchanger, be sure to
wear protective gloves or
wrap heat exchanger with
cloths. (Fins can cut fingers.)
3
Remove the two screws
at the pipe header side
of the heat exchanger.
