SiBE05-312 Indoor Unit
Removal Procedure 125
3

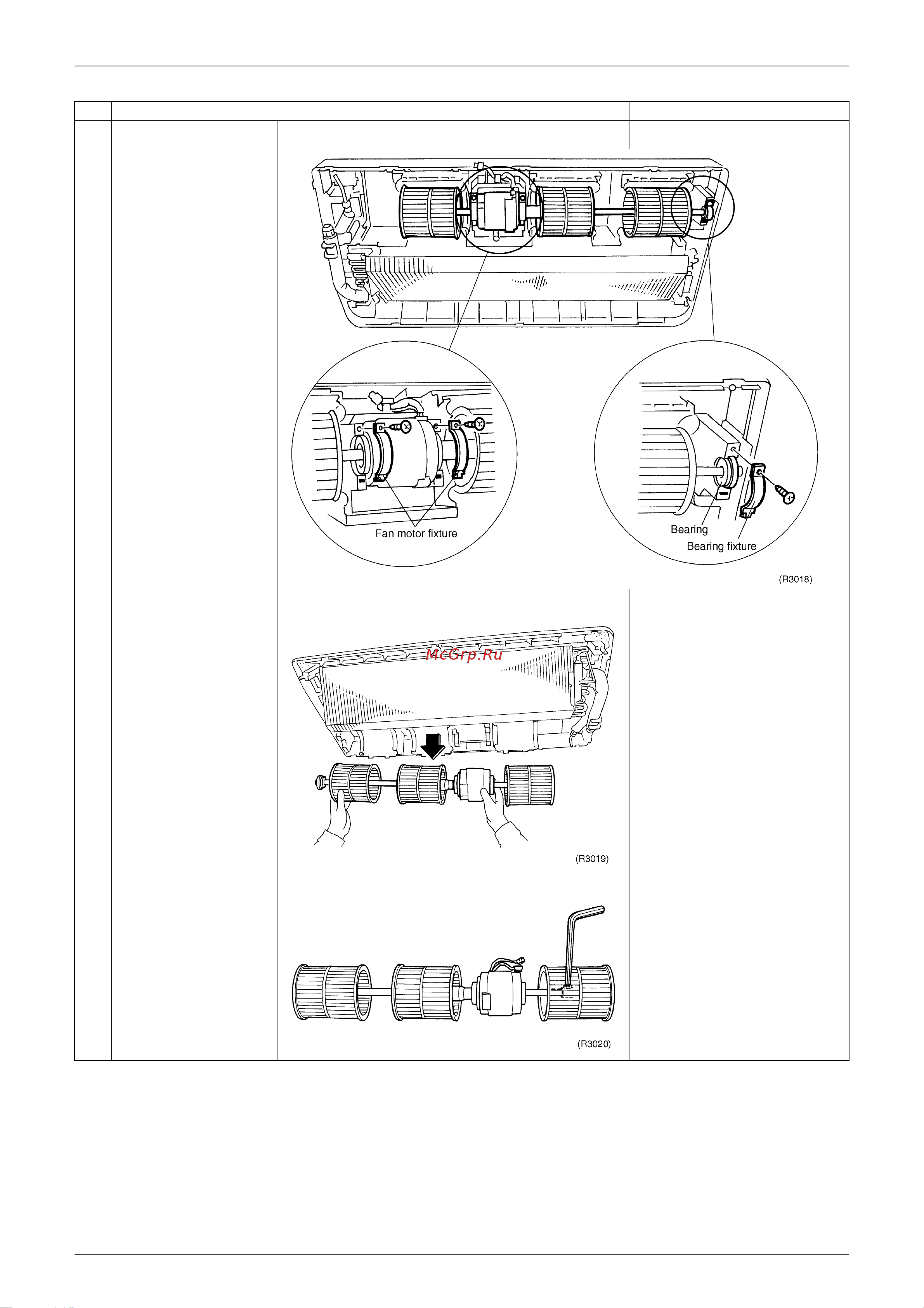

Remove the two screws
to remove fan motor
fixtures.
4
Remove the bearing
fixture.
5
Loosen the shaft
supporting section
using a hexagonal
wrench (for M6) to
remove the fan motor.
