Indoor Unit SiBE05-312
118 Removal Procedure

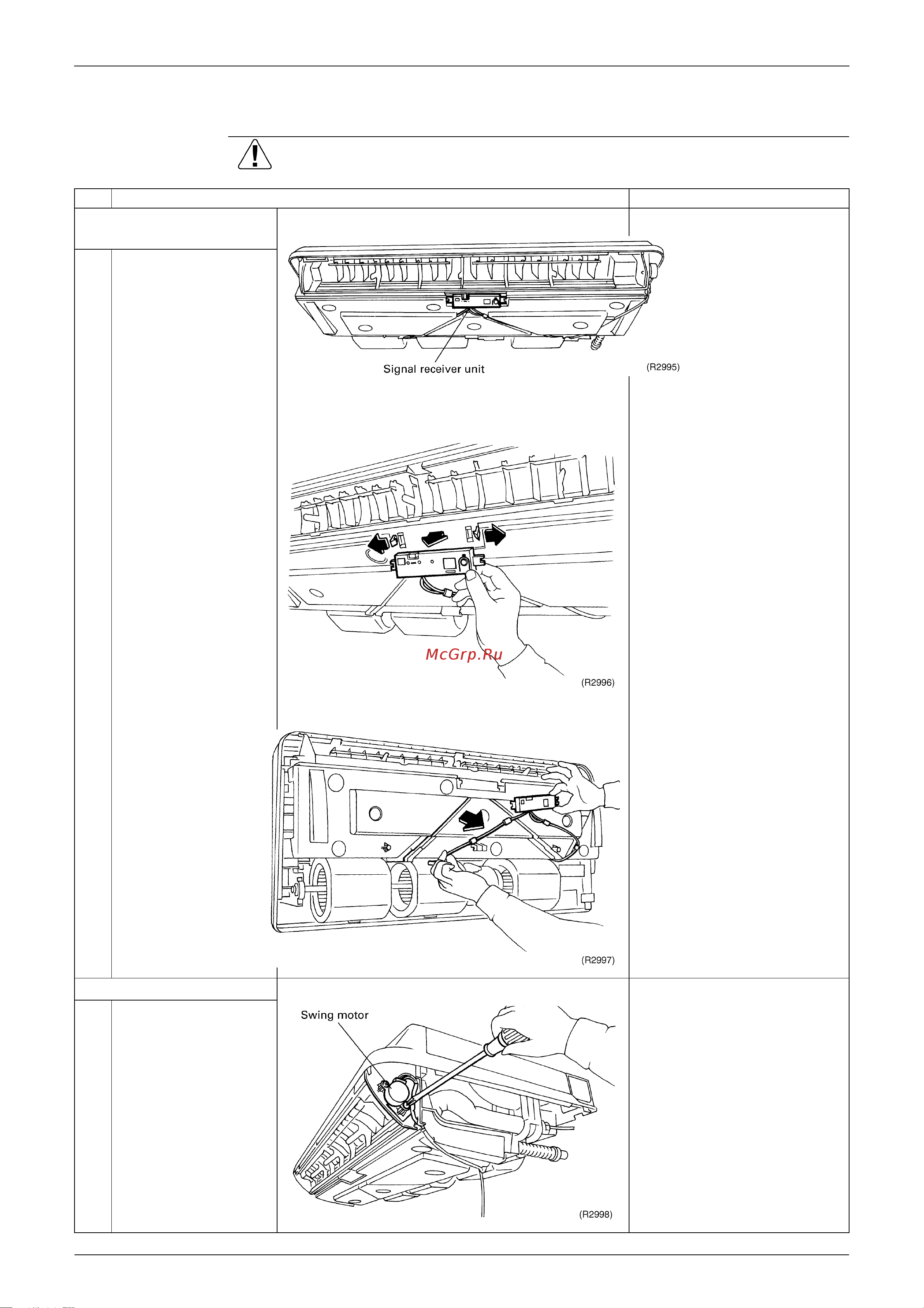

1.4 Removal of the Signal Receiver Unit / Swing Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1. Remove the signal
receiver unit.
1
Disengage the two
hooks (left and right
sides) to remove the
signal receiver unit.
2
Remove the wire
harness of the signal
receiver from the
groove.
Note:
Rearrange the wire harness in
position as it was when
reassembling signal receiver
unit.
2. Remove the swing motor.
1
Remove the two screws
holding the swing motor
in place.
