SiBE05-312 Instruction
System Configuration 57
2.8 HOME LEAVE Operation
16

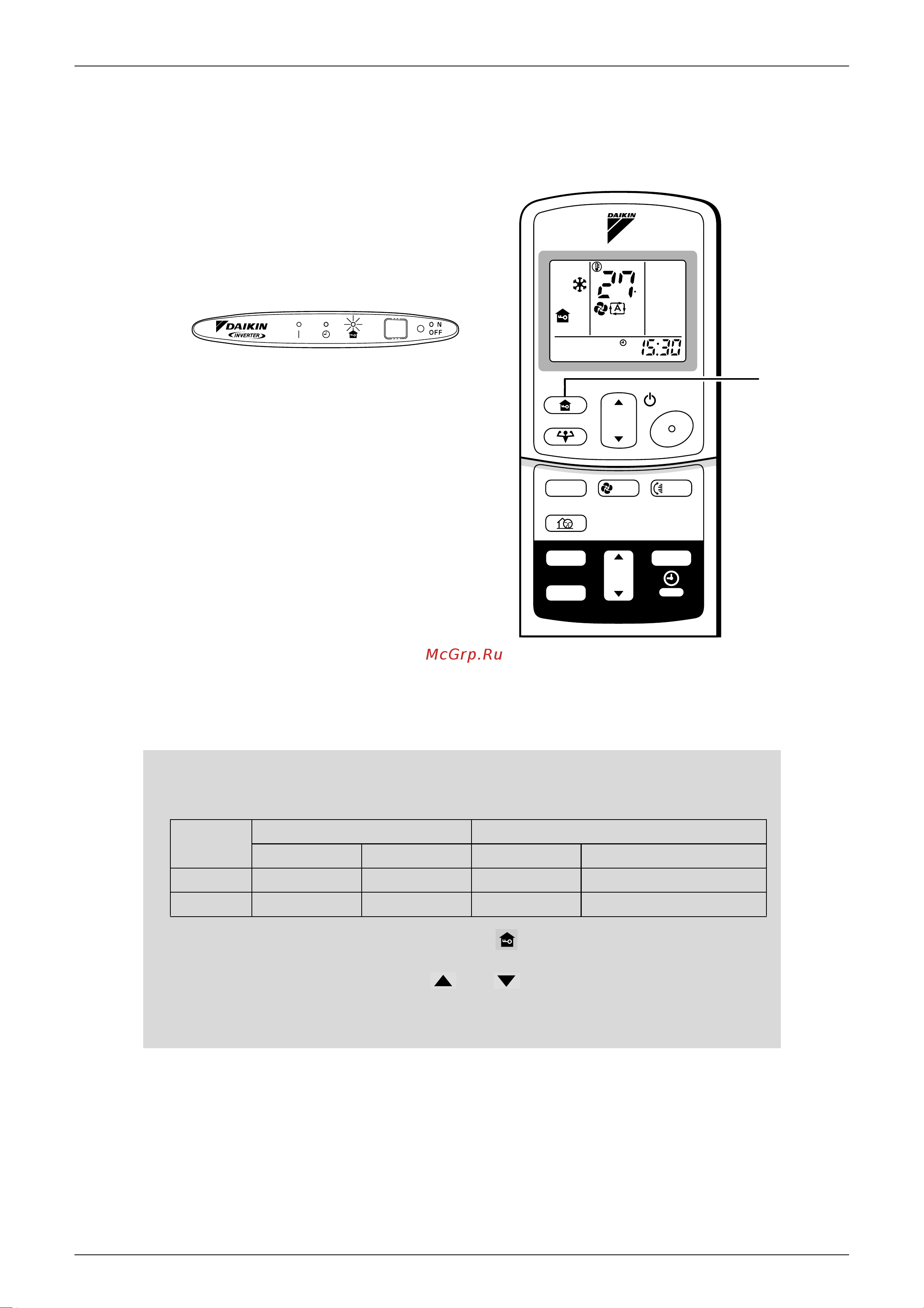

HOME LEAVE operation is a function which allows you to record
your preferred temperature and air flow rate settings.
■
To start HOME LEAVE
operation
1. Press “HOME LEAVE button” .
• The HOME LEAVE lamp lights up.
■
To cancel HOME LEAVE
operation
2. Press “HOME LEAVE button” again.
• The HOME LEAVE lamp goes off.
Before using HOME LEAVE operation.
■
■■
■
To set the temperature and air flow rate for HOME LEAVE operation
When using HOME LEAVE operation for the first time,
please
set the temperature and air flow rate
for HOME LEAVE operation. Record your preferred temperature and air flow rate.
1. Press “HOME LEAVE button”. Make sure “” is displayed in the remote control-
ler display.
2. Adjust the set temperature with “” or “” as you like.
3. Adjust the air flow rate with “FAN” setting button as you like.
Home leave operation will run with these settings the next time you use the unit. To change
the recorded information, repeat steps 1 – 3.
C
TEMP
ON/OFF
POWERFUL
HOME LEAVE
MODE
TIMER
FAN
SWING
SILENT
ON
CANCEL
OFF
1, 2
Initial setting Selectable range
temperature Air flow rate temperature Air flow rate
Cooling 25
°
CAUTO18-32
°
C 5 step, AUTO and SILENT
Heating 25
°
CAUTO10-30
°
C 5 step, AUTO and SILENT
