SiBE05-312 Indoor Unit
Removal Procedure 123
6

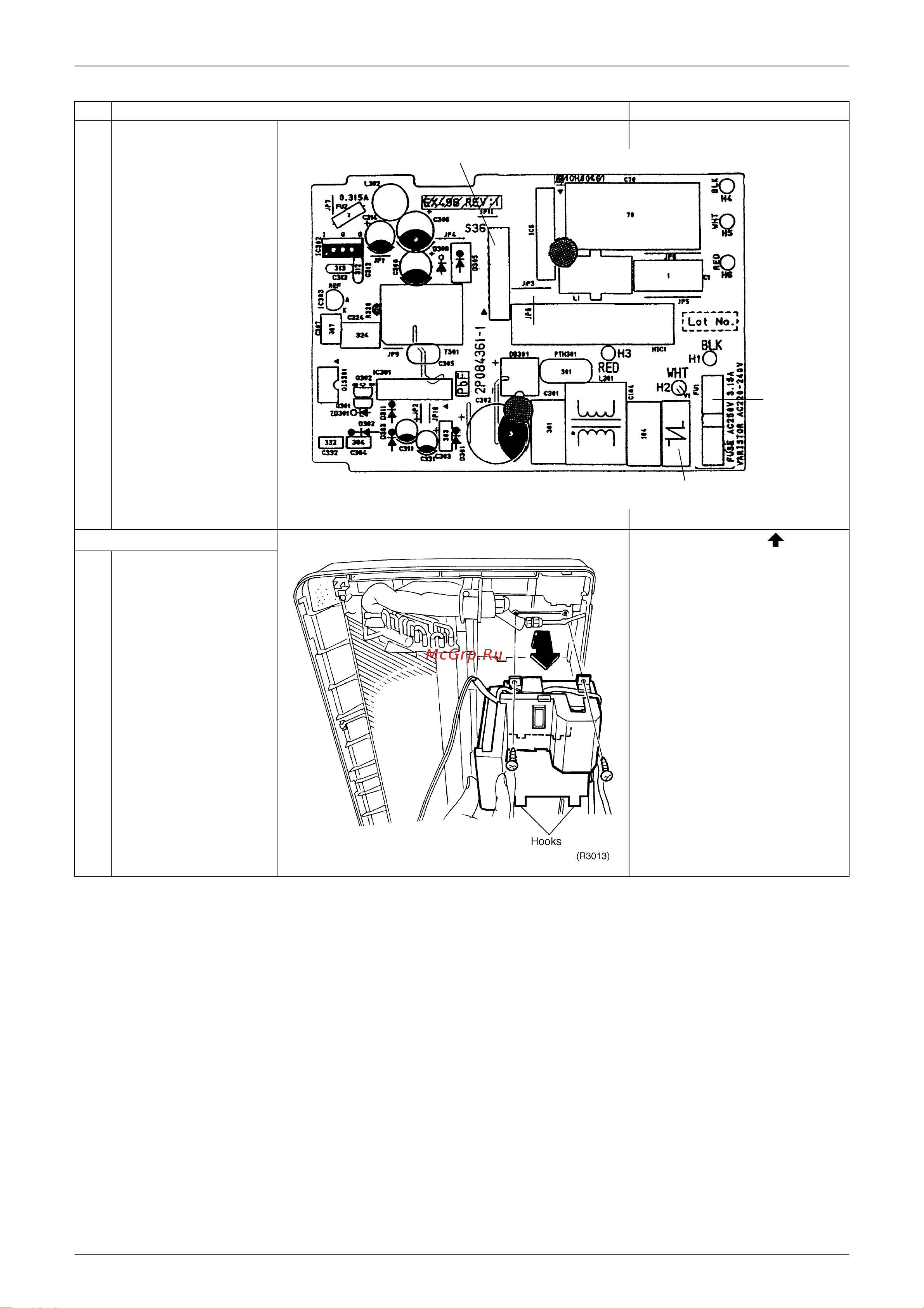

The illustration shows
the power supply PCB
(indoor unit).
2. Remove the electrical box.
Slide the box to
direction first to disengage
hooks.
1
Remove the two
screws. Remove the
electrical box by sliding
it to disengage the
hooks located at the
opposite side of the
box.
Step Procedure Points
S36
FU1
V1
(R2959)
