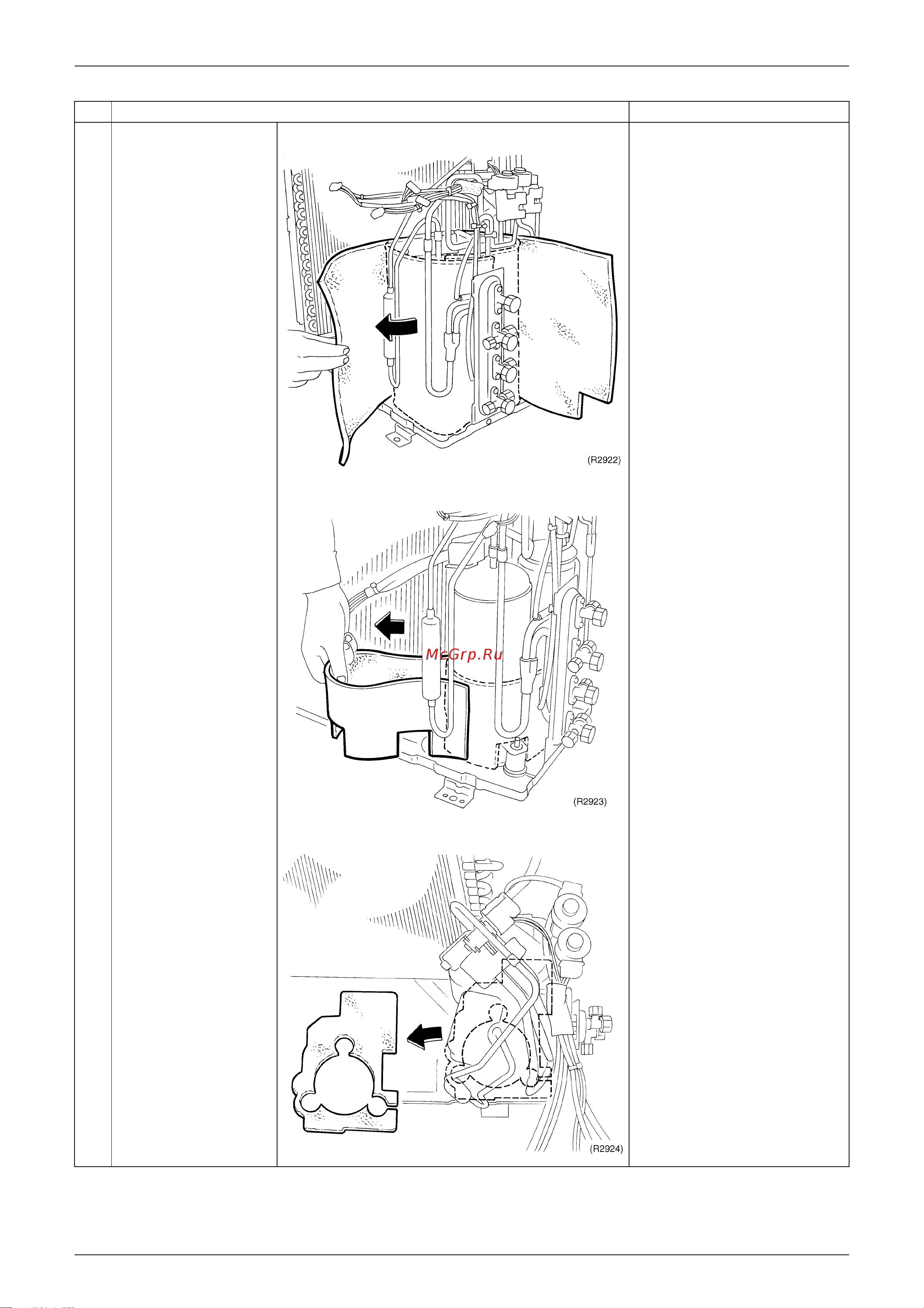

SiBE12-314 Outdoor Unit
Removal Procedure 151
Step
Procedure Points
7
Remove the sound
blanket (side-inner A).
8
Remove the sound
blanket (side-inner B).
9
Remove the sound
blanket (bottom).
