SiBE12-314 Printed Circuit Board Connector Wiring Diagram
Printed Circuit Board Connector Wiring Diagram 23
1.4 Outdoor Unit
Name of Connector
Note: Other Designations

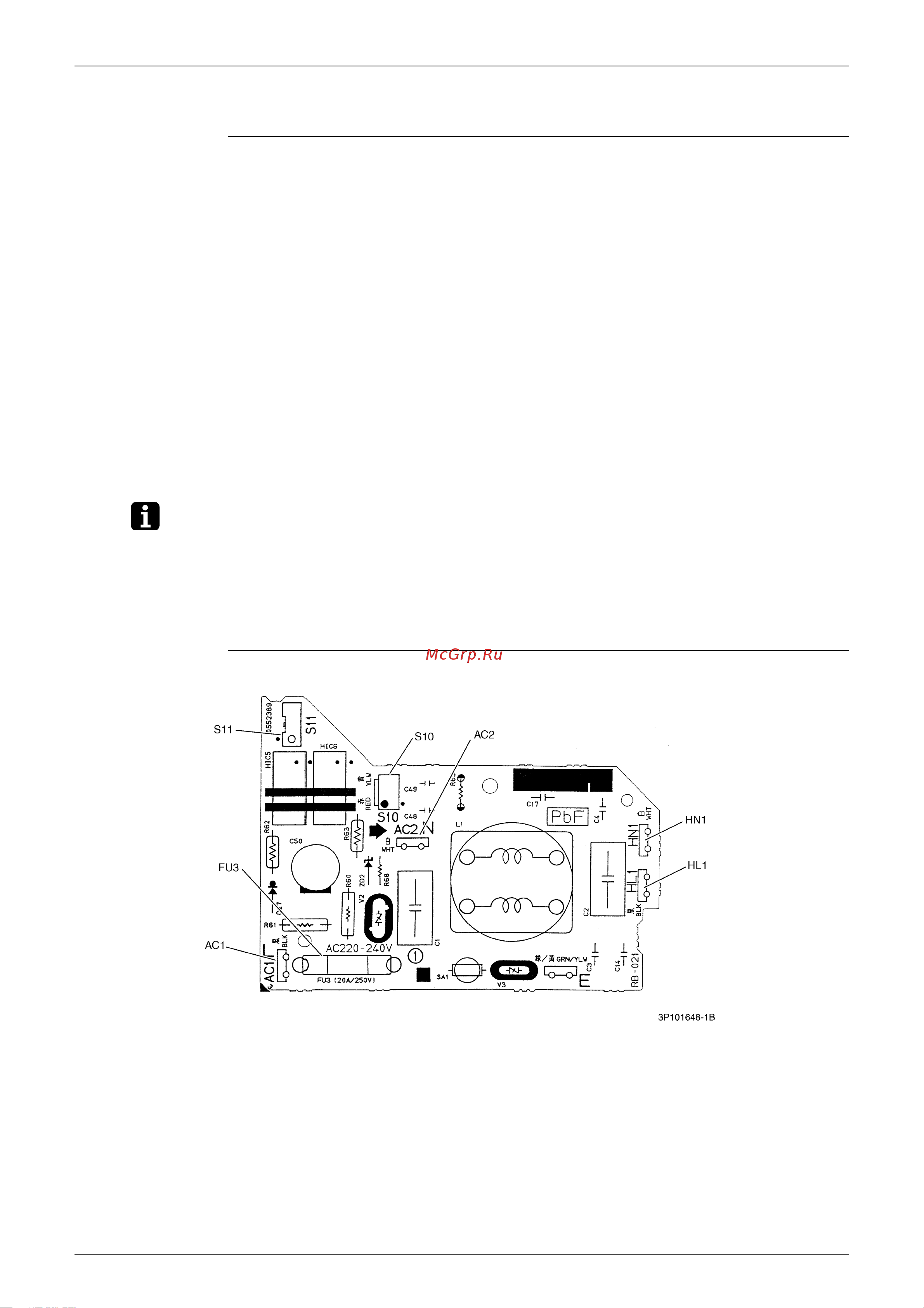

Filter PCB (PCB 1) Detail
1) S10, S45, AC1, AC2 Connector for terminal strip
2) S11, HL1, HN1 Connector for control PCB
3) S12, HL2, HN2 Connector for filter PCB
4) S20 Connector for electronic expansion valve coil A port
5) S21 Connector for electronic expansion valve coil B port
6) S30 Connector for compressor
7) S70 Connector for fan motor
8) S80 Connector for four way valve coil
9) S90 Connector for thermistor
(outdoor air, heat exchanger, and discharge pipe)
10)S91 Connector for thermistor (gas pipe and liquid pipe)
11)S93 Connector for fin thermistor
12)HC3, HC4 Connector for capacitor
13)HR3, HR4 Connector for reactor
1) LED A Service Monitor LED (Green)
2) FU2 Fuse (3.15A/250V)
3) FU3 Fuse (20A/250V)
4) DB1 Diode bridge
