Printed Circuit Board Connector Wiring Diagram SiBE12-314
20 Printed Circuit Board Connector Wiring Diagram
1.2 Docut Connected Type
Name of Connectors
Note: Other designations

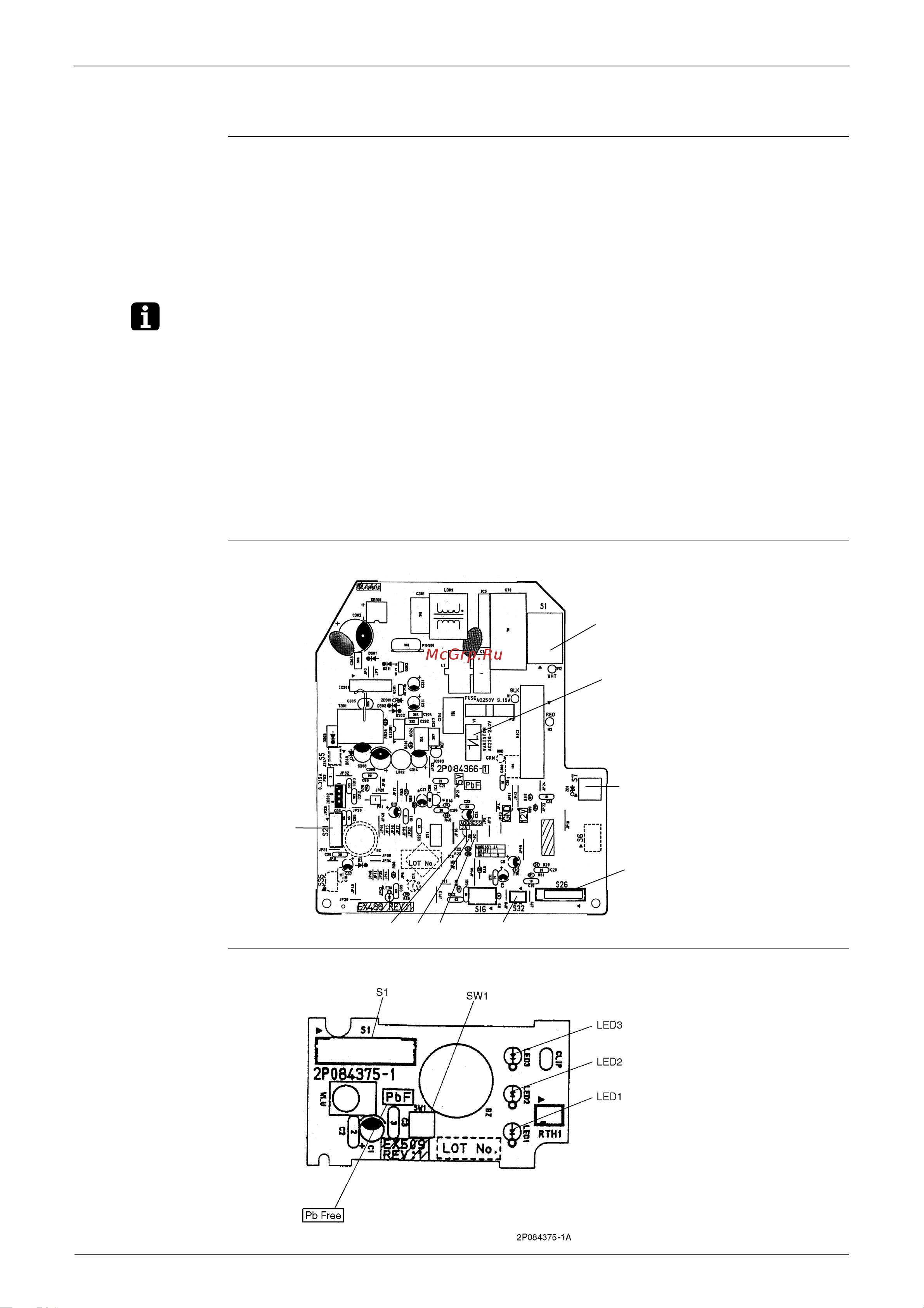

Control PCB Detail (PCB 1)
Display PCB Detail (PCB 2)
1) S1 (on PCB 1) Connector for fan motor
2) S1 (on PCB 2) Connector for control PCB
3) S7 Connector for fan motor
4) S21 Connector for centralized control
5) S26 Connector for display PCB
6) S32 Connector for room temp/heat exchanger thermistor
1) V1 Varistor
2) JA ADDRESS SETTING JAMPER
JB Fan speed setting when compressor is OFF on thermostat.
JC Power failure recovery function.
∗
Refer to page 261 for more detail.
3) SW1 OPERATION SWITCH
4) LED1 LED for operation (Green)
5) LED2 LED for timer (Yellow)
6) LED3 LED for Howe Leave Operations (Red)
S1
V1
S7
S26
S32JCJBJA
S21
2P084366-2H
