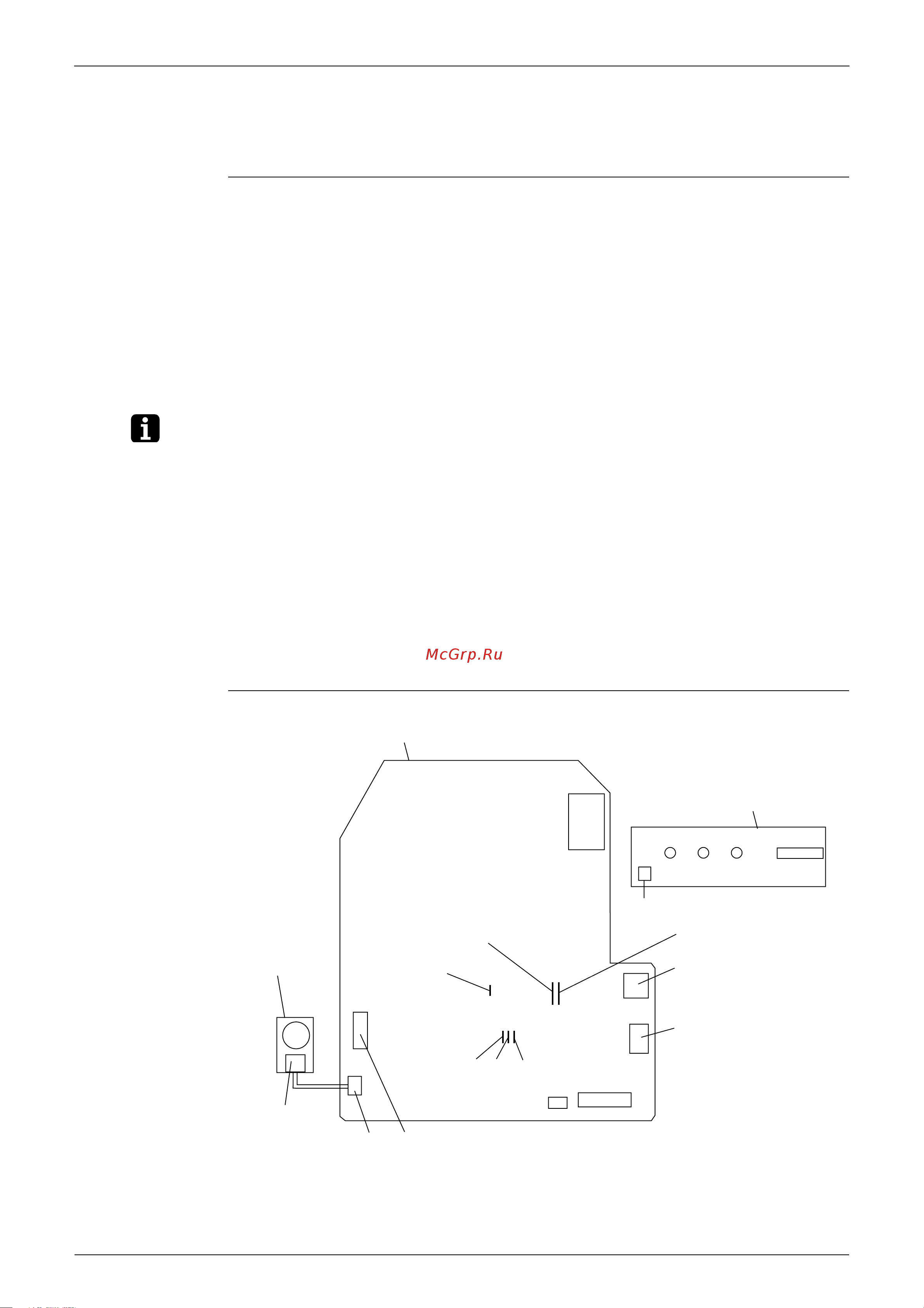

Printed Circuit Board Connector Wiring Diagram SiBE12-314
18 Printed Circuit Board Connector Wiring Diagram
1. Printed Circuit Board Connector Wiring Diagram
1.1 Wall Mounted Type
Name of Connector
Note: Other designations
Outline of PCB
1) S1 Connector for fan motor
2) S6 Connector for swing motor (Horizontal Flap)
3) S7 Connector for fan motor
4) S21 Connector for centralized control
5) S26 Connector for signal receiver PCB
6) S27 Connector for control PCB
7) S32 Connector for room temp. / heat exchanger thermistor
8) S35 Connector for Intelligent Eye Sensor PCB
1) V1 Varistor
2) JA ADDRESS SETTING JAMPER
JB Fan speed setting when compressor is OFF on thermostat.
JC Power failure recovery function.
∗
Refer to page 261 for more detail.
3) SW7 OPERATION SWITCH
4) LED1 LED for operation (Green)
5) LED2 LED for timer (Yellow)
6) LED3 LED for Home Leave Operation (Red)
GRN YLW RED
LED1 LED2 LED3
Signal receiver PCB (2)
S27
SW7
Control PCB (1)
S1
S7
S6
S26
S32
S35 S21
S36
Intelligent eye
sensor PCB (3)
5V check Jumper
(JP21)
Ground (JP11)
12V check Jumper
(JP12)
JA JB JC
(R2507)
