SiBE12-314 Printed Circuit Board Connector Wiring Diagram
Printed Circuit Board Connector Wiring Diagram 21
1.3 Foor / Ceiling Suspended Dual Type
Name of Connector
Note: Other designations

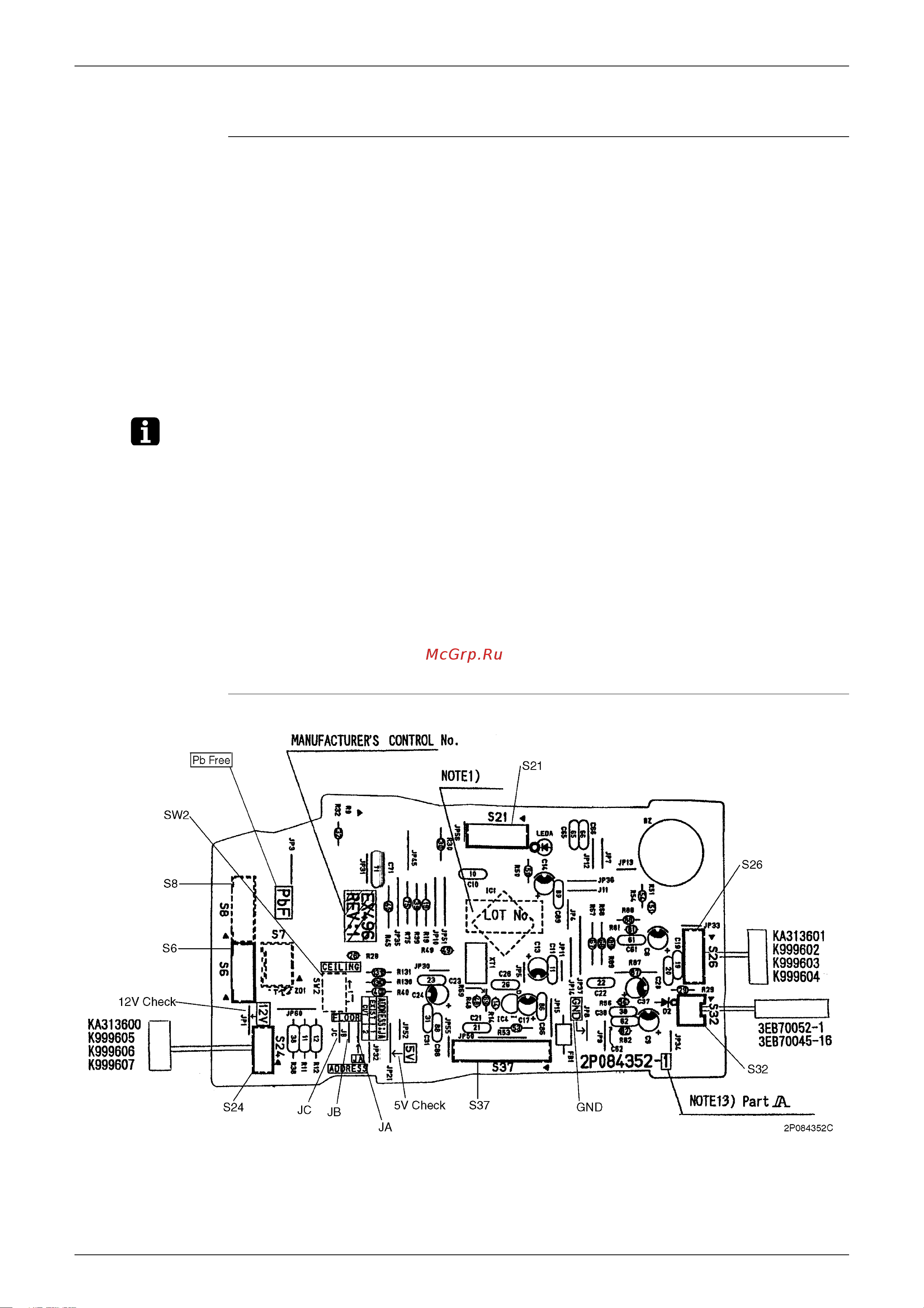

Control PCB (PCB1) Detail
1) S6 Connector for swing motor (Horizontal Swing)
2) S7 Connector for fan motor
3) S8 Connector for swing motor (Vertical Swing)
4) S21 Connector for centralized control
5) S24 Connector for display PCB
6) S25, 27, 36 Connector for control PCB
7) S26 Connector for signal receiver PCB
8) S31 Connector for room temp. thermistor
9) S32 Connector for heat exchanger thermistor
10) S37 Connector for power supply PCB
1) V1 Varistor
2) JA ADDRESS SETTING JAMPER
JB Fan speed setting when compressor is OFF on thermostat.
JC Power failure recovery function.
3) SW1 Operation Switch
4) SW2 Select Switch Ceiling or Floor
5) LED1 LED for operation (Green)
6) LED2 LED for timer (Yellow)
7) LED3 LED for Howe Leave Operation (Red)
