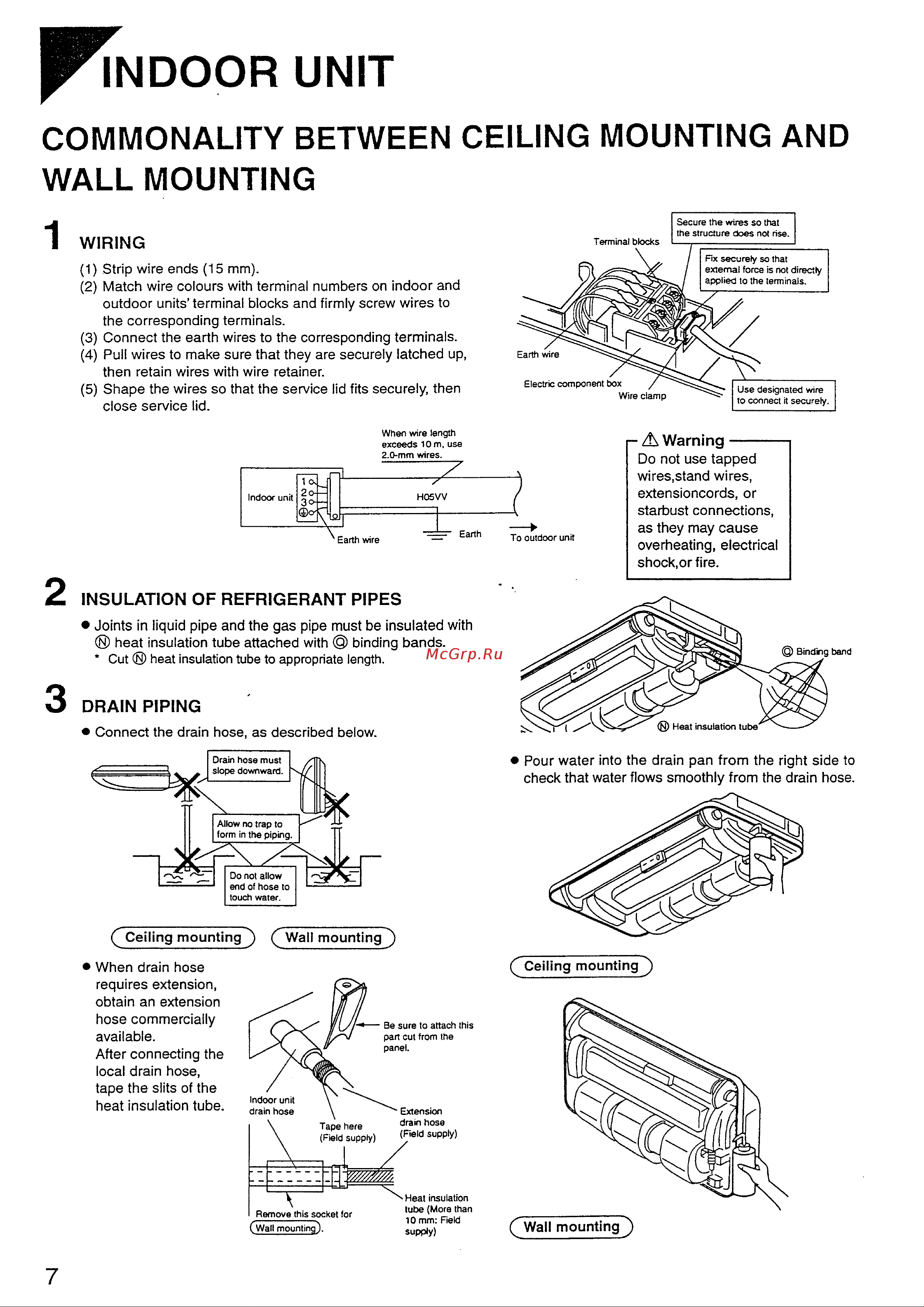

INDOOR UNIT COMMONALITY BETWEEN CEILING MOUNTING AND WALL MOUNTING WIRING 1 Strip wire ends 15 mm 2 Match wire colours with terminal numbers on indoor and outdoor units terminal blocks and firmly screw wires to the corresponding terminals 3 Connect the earth wires to the corresponding terminals 4 Pull wires to make sure that they are securely latched up then retain wires with wire retainer 5 Shape the wires so that the service lid fits securely then close service lid When wire length exceeds 10 m use 2 0 mm wires 2 A Warning Do not use tapped wires stand wires extensioncords or starbust connections as they may cause overheating electrical shock or fire INSULATION OF REFRIGERANT PIPES Joints in liquid pipe and the gas pipe must be insulated with N heat insulation tube attached with binding bands Cut heat insulation tube to appropriate length 3 DRAIN PIPING Connect the drain hose as described below Pour water into the drain pan from the right side to check that water flows smoothly from the drain hose When drain hose requires extension obtain an extension hose commercially available After connecting the local drain hose tape the slits of the heat insulation tube Be sure to attach this part cut from the panel Indoor unit drain hose Tape here Field supply Remove this socket for Wall mounting 7 Extension drain hose Field supply Heat insulation tube More than 10 mm Field supply
