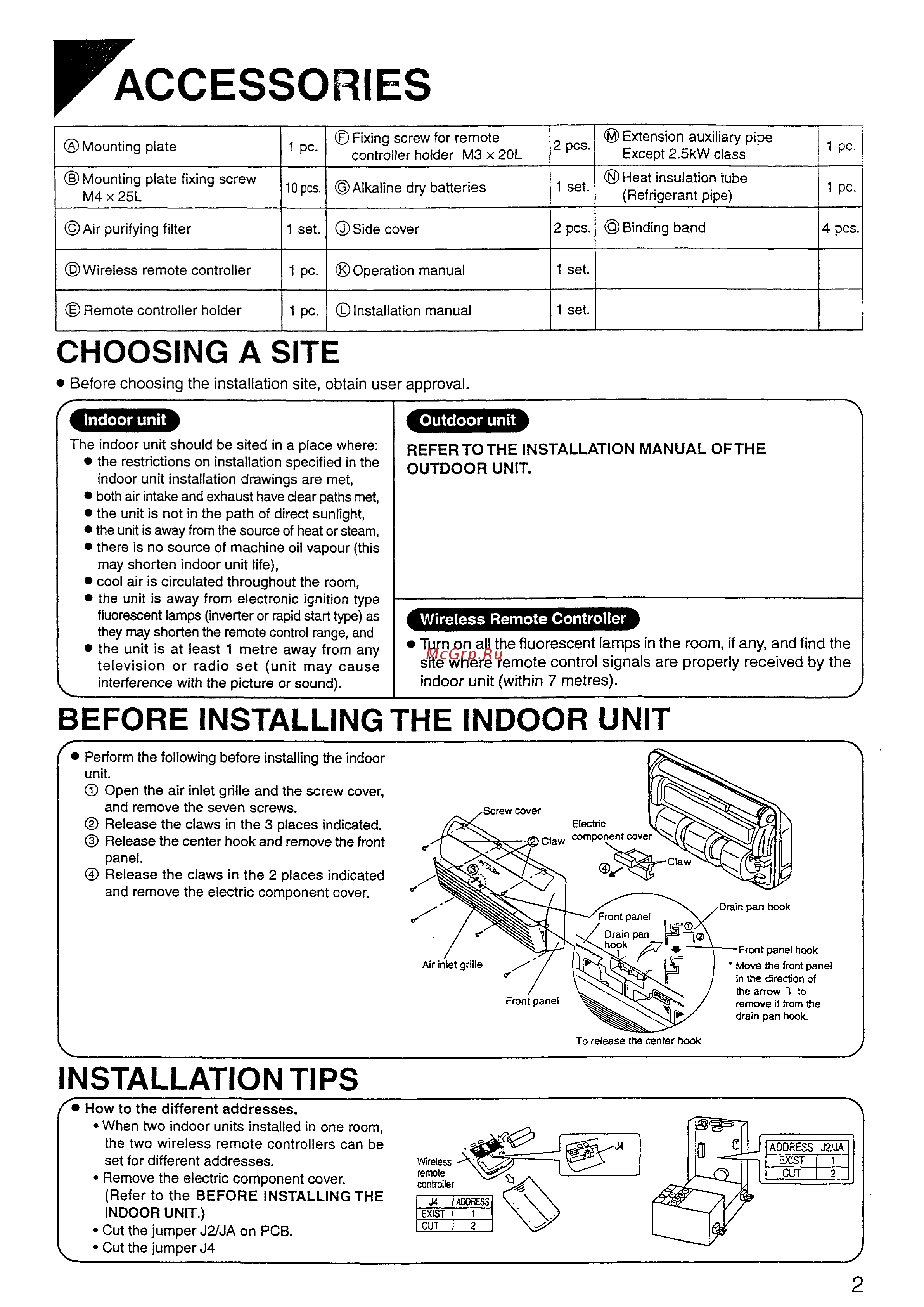

ACCESSORIES Fixing screw for remote controller holder M3 x 20L 2 pcs Mounting plate 1 pc Mounting plate fixing screw M4 x 25L 10 pcs Alkaline dry batteries 1 set Air purifying filter 1 set Side cover 2 pcs Wireless remote controller 1 pc Operation manual 1 set Remote controller holder 1 pc Installation manual 1 set Extension auxiliary pipe Except 2 5kW class Heat insulation tube Refrigerant pipe Binding band 1 pc 1 pc 4 pcs CHOOSING A SITE Before choosing the installation site obtain user approval K Indoor unit The indoor unit should be sited in a place where the restrictions on installation specified in the indoor unit installation drawings are met both air intake and exhaust have clear paths met the unit is not in the path of direct sunlight the unit is away from the source of heat or steam there is no source of machine oil vapour this may shorten indoor unit life cool air is circulated throughout the room the unit is away from electronic ignition type fluorescent lamps inverter or rapid start type as they may shorten the remote control range and the unit is at least 1 metre away from any television or radio set unit may cause interference with the picture or sound Outdoor unit REFER TO THE INSTALLATION MANUAL OF THE OUTDOOR UNIT Turn on all the fluorescent lamps in the room if any and find the site where remote control signals are properly received by the indoor unit within 7 metres BEFORE INSTALLING THE INDOOR UNIT Perform the following before installing the indoor unit Open the air inlet grille and the screw cover and remove the seven screws Release the claws in the 3 places indicated 3 Release the center hook and remove the front panel Release the claws in the 2 places indicated and remove the electric component cover INSTALLATION TIPS How to the different addresses When two indoor units installed in one room the two wireless remote controllers can be set for different addresses Remove the electric component cover Refer to the BEFORE INSTALLING THE INDOOR UNIT Cut the jumper J2 JA on PCB Cut the jumper J4 2
