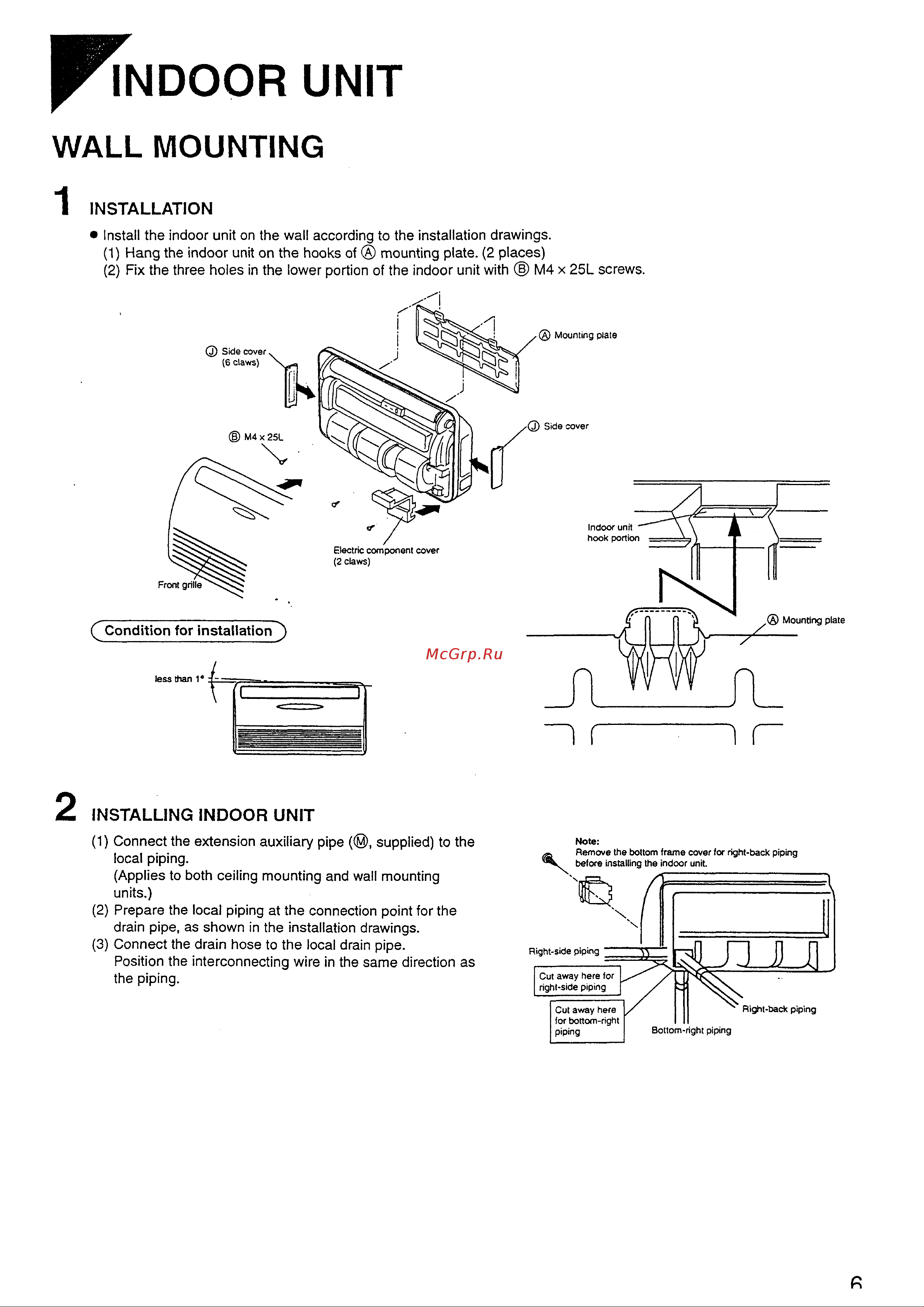

INDOOR UNIT WALL MOUNTING INSTALLATION Install the indoor unit on the wall according to the installation drawings 1 Hang the indoor unit on the hooks of mounting plate 2 places 2 Fix the three holes in the lower portion of the indoor unit with B M4 x 25L screws INSTALLING INDOOR UNIT 1 Connect the extension auxiliary pipe M supplied to the local piping Applies to both ceiling mounting and wall mounting units 2 Prepare the local piping at the connection point for the drain pipe as shown in the installation drawings 3 Connect the drain hose to the local drain pipe Position the interconnecting wire in the same direction as the piping Note A
