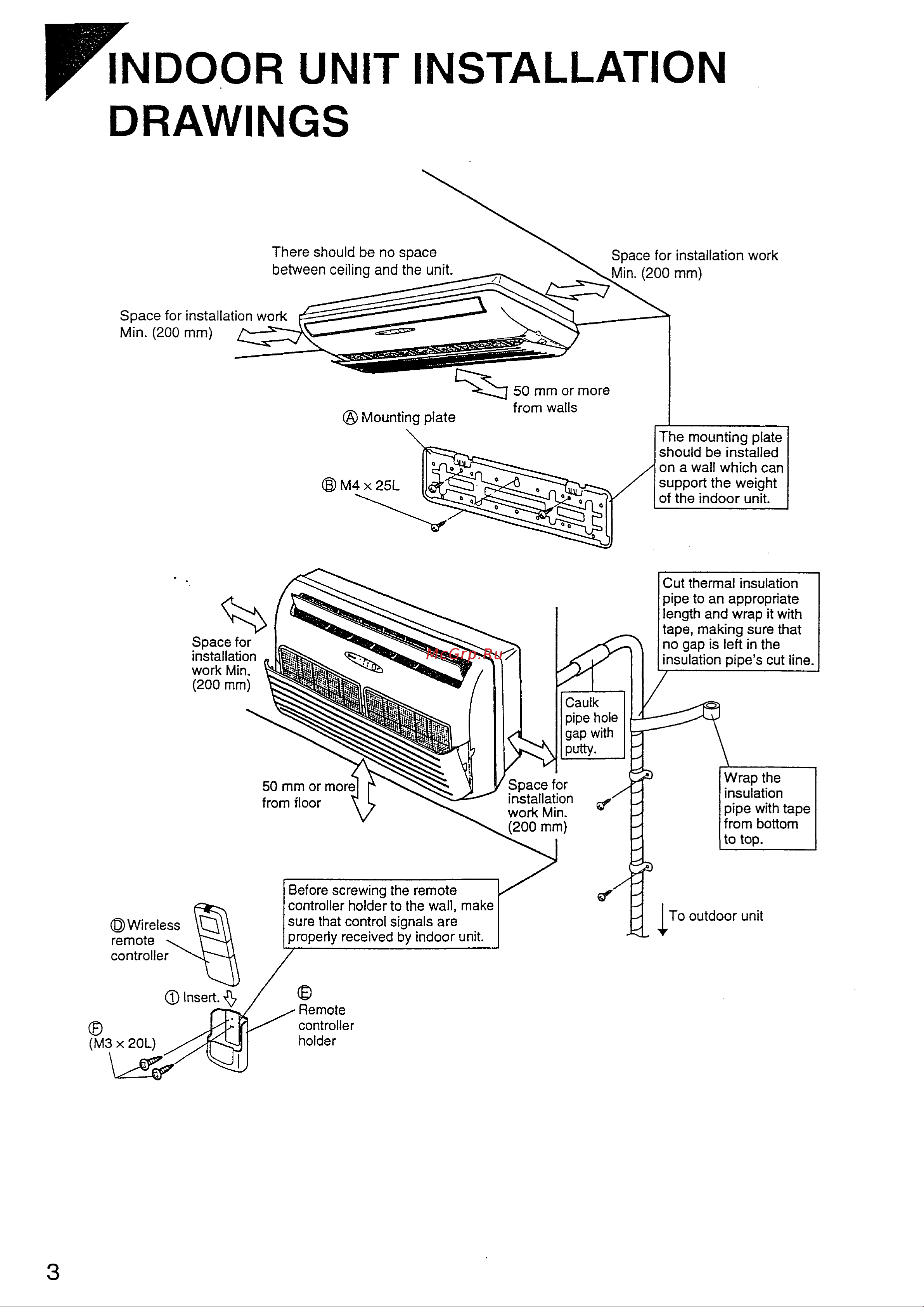

INDOOR UNIT INSTALLATION DRAWINGS There should be no space between ceiling and the unit Space for installation work Min 200 mm Space for installation work Min 200 mm Mounting plate 50 mm or more from walls The mounting plate should be installed on a wall which can support the weight of the indoor unit M4 x 25L Cut thermal insulation pipe to an appropriate length and wrap it with tape making sure that no gap is left in the insulation pipe s cut line Space for installation work Min 200 mm Caulk pipe hole gap with putty 50 mm or more from floor Wireless remote controller D Insert M3 x 20L 3 Before screwing the remote controller holder to the wall make sure that control signals are properly received by indoor unit Remote controller holder Space for installation work Min 200 mm Wrap the insulation pipe with tape from bottom to top To outdoor unit
