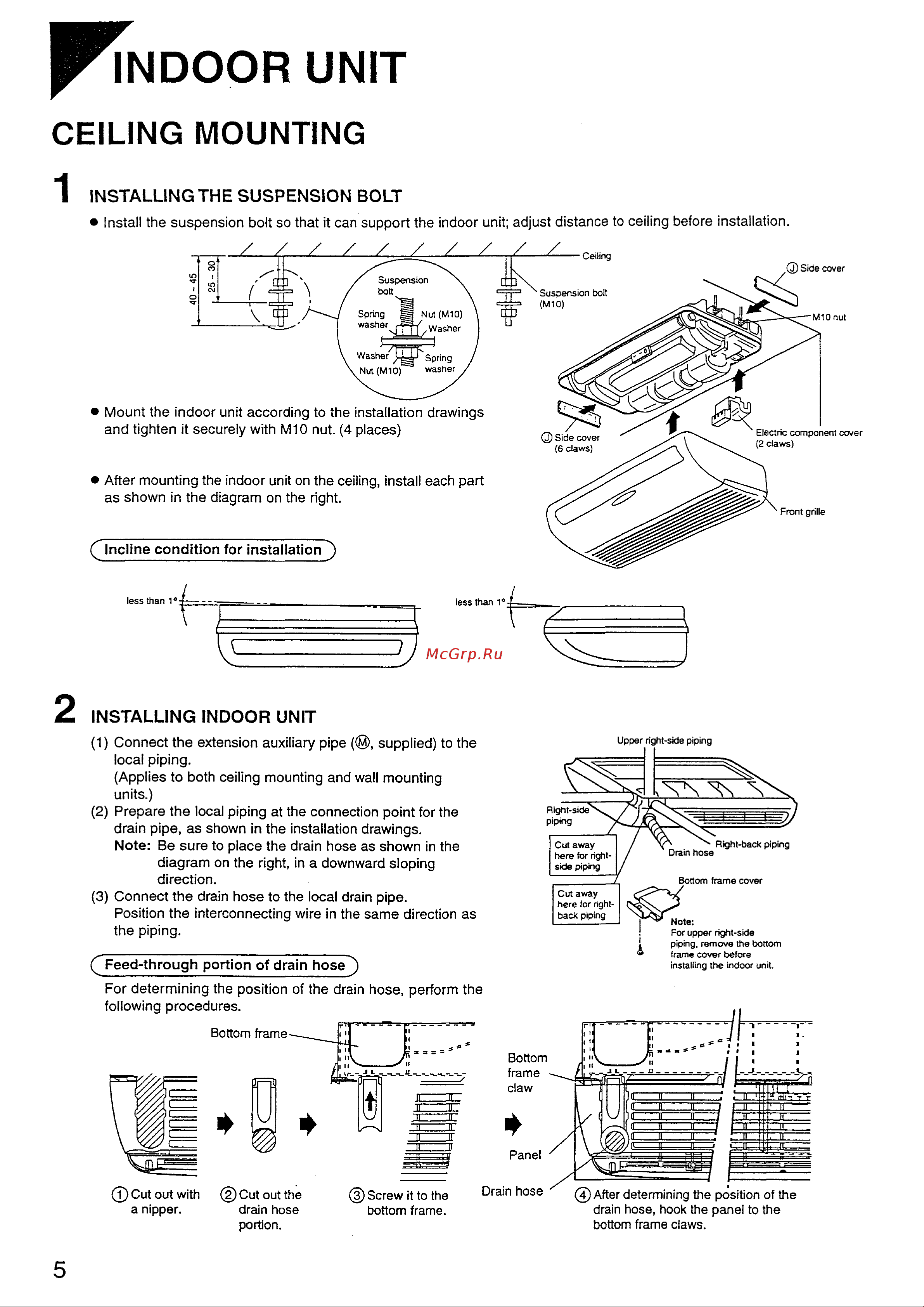

INDOOR UNIT CEILING MOUNTING INSTALLING THE SUSPENSION BOLT Install the suspension bolt so that it can support the indoor unit adjust distance to ceiling before installation Mount the indoor unit according to the installation drawings and tighten it securely with M10 nut 4 places After mounting the indoor unit on the ceiling install each part as shown in the diagram on the right Q Incline condition for installation 2 INSTALLING INDOOR UNIT 1 Connect the extension auxiliary pipe supplied to the local piping Applies to both ceiling mounting and wail mounting units 2 Prepare the local piping at the connection point for the drain pipe as shown in the installation drawings Note Be sure to place the drain hose as shown in the diagram on the right in a downward sloping direction 3 Connect the drain hose to the local drain pipe Position the interconnecting wire in the same direction as the piping Q Feed through portion of drain hose Upper right side piping installing the indoor unit For determining the position of the drain hose perform the following procedures T Cut out with 5 Cut out the 3 Screw it to the Drain hose a nipper drain hose bottom frame portion 5 After determining the position of the drain hose hook the panel to the bottom frame claws
