Installation and maintenance manual
16
Daikin Altherma EHS(X/H)
Daikin Solar tank with integrated interior heat pump unit
008.1420744 – 06/2015
3 x Set-up and installation
● Install the Daikin Altherma EHS(X/H) at the installation site.
– Recommended clearances (fig. 3-5):
From the wall (s1): ≥200 mm.
From the ceiling (X): ≥1200 mm, minimum 480 mm.
– Carefully transport the Daikin Altherma EHS(X/H), use the
han
dles.
– When setting up the unit in a cabinet, behind panels or in
other restricted conditions, sufficient ventilation (e.g.,
using ventilation gratings) must be ensured.
● If necessary, install the o
ptional backup heater (EKBUxx) into
the Daikin Altherma EHS(X/H) (fig. 3-5).
Observe the assembly and operating manual supplied with
the ac
cessory ( for tightening torque see chapter 9.3).

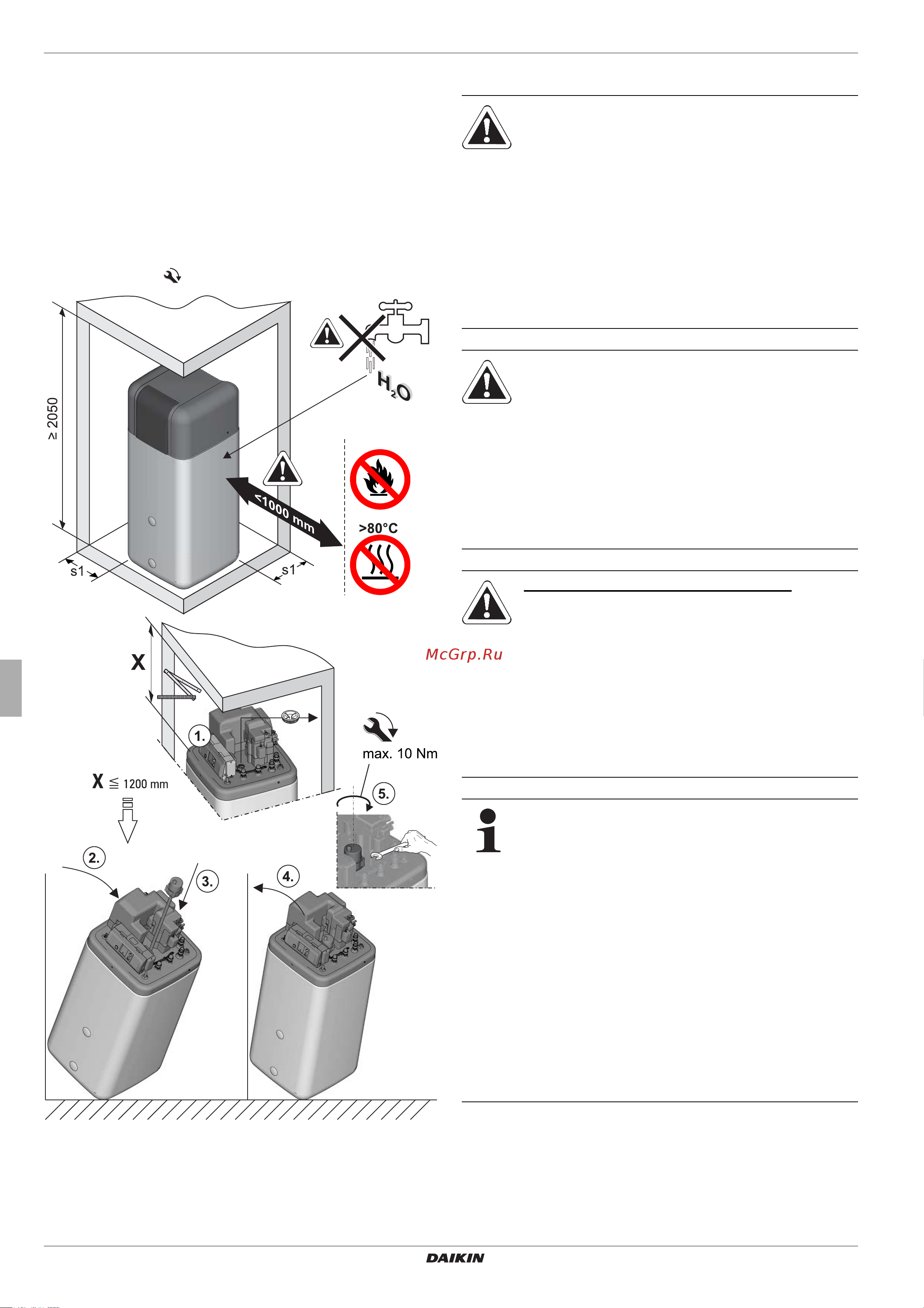

Fig. 3-5 Installation (shown using a Daikin Altherma EHS(X/H)...P50A
with integration of the optional back-up heater)
3.3 Water connection
CAUTION!
If the Daikin Altherma EHS(X/H) is connected to a
heating system with steel pipes, radiators or non-dif-
fusion-proof floor heating pipes, slurry and swarf could
enter the hot water storage tank and cause
blockages, local overheating or corrosion.
● Fl
ush the feed pipes before filling the heat
exchanger.
● Rinse out the heat distribution network (in the
existing heating system).
● In
stall the dirt filter or sludge separator into the
heating return flow (see chapter 1.5.5).
CAUTION!
If the Daikin Altherma EHS(X/H) is connected to a cold
water line, where steel pipes are used, chips can
enter the special steel corrugated pipe heat exchanger
and remain there. This can lead to contact corrosion
damage and subsequently to leakage.
● Fl
ush the feed pipes before filling the heat
exchanger.
● In
stall contamination filter in the cold water feed
(see chapter 1.5.5).
ONLY DAIKIN ALTHERMA EHS(X/H) ... B
CAUTION!
If the h
eat exchanger for charging the pressurised
solar system (fig. 3-1 / fig. 3-2, item 8+9) has an ex-
ternal heating unit (e
.g. wood-burning boiler) con-
nected to it, an excessive flow temperature at these
connections can damage or destroy the Daikin
Altherma EHS(X/H)B.
● Th
e feed flow temperature of the external heater
should be limited to max. 95 °C.
In accordance with EN 12828 you must install a safety
valve at or in the immediate vicinity of the heat
exchanger, with which you can limit the maximum per-
missible operating pressure in the heating system.
T
here should be no hydraulic blocking elements
between the heat generator and the safety valve.
Any steam or heating water which may escape must be
diverted by a suitable blow-off line with constant gradi-
ent in a frost-protected, safe and observable manner.
A diaphragm expansion vessel of adequate dimensions
and pr
e-set for the heating system must be connected
to the Daikin Altherma EHS(X/H). There should be no
hydraulic blocking elements between the heat genera-
tor and the diaphragm expansion vessel.
Daikin recommends integrating a mechanical manom-
eter for the filling of th
e heating system.
