7 x Errors, malfunctions and messages
E198 —
Flow measure-
ment not plausible
Flow sensor FLS,
3-way diverter valve
3UVB1
Error occurs if the 3-way diverter valve 3
UVB1 is in the Bypass po-
sition, the device-internal circulation pump is running, but the vol-
umetric flow measurement is too low.
Minimum water flow required:
– Operating mode "Heating": 600 l/h
– Operating mode "Cooling": 840 l/h
– Automatic defrosting function (
) active: 1020 l/h
– Air in heating system.
● Vent.
– Device-internal circulation pump not running.
● Check electrical connection and control settings. If the
circulation pump is defective, replace it.
– Flow sensor FLS contaminated, blocked.
● Check, clean.
– Flow sensor FLS defective.
– Valve drive for 3-way diverter valve 3UVB1 defective.
● Ch
eck, replace.
E200 —
Communication
fault
Electrical components
Modbus communication between RoCon BM1 and switchboard
A1P i
s disrupted.
– Check RTX-AL4 switch board.
– Cabling or connections, poor contact.
● Ch
eck, replace
E8005 —
Water pressure in
the heatin
g system
too low
Pressure sensor DS
Water pressure has fallen below the minimum permissible value.
– Too little water in the heating system.
● Check heating system for leakage, refill water.
– Pressure sensor DS defective.
● Ch
eck, replace.
E8100 — Communication Electrical components
Modbus initialisation also failed after heat pump start-up.
Circuit board A1P defective.
● Che
ck, replace.
E9000 —
Temporary internal
message
—
Not relevant to proper system operation.
W8006 —
Pressure loss
warn
ing
Pressure sensor DS
Warning message: Maximum permissible pressure drop
exceeded.
Too little water in the heating system.
● Check
heating system for leakage, refill water.
W8007 —
Water pressure in
the heating system
too high
Warning message: Water pressure has exceeded the maximum
permissibl
e value.
– Membrane expansion vessel defective or incorrect pressure
set.
● Ch
eck, replace.
– Setting for the [Max Pressure] parameter too low.
● If necessary, set
parameter. If setting correct,
Drain water to reduce the system pressure.
Tab. 7-2 Error codes on the main control unit of Altherma EHS(X/H)
Respect the maximum tightening torque of the temper-
ature sensor (see chapter 9.3 "Tightening torque").
Code Malfunction /
Error message
Component/Designation Causes and possible error correction
Display Internal
Содержание
- Indoor unit for air water heat pumps daikin altherma integrated solar unit p.1
- Installation and maintenance manual p.1
- Malfunctions 43 p.3
- Tightening torque 63 p.3
- Emergency operation 54 p.3
- Temporary shutdown 35 p.3
- List of keywords 67 p.3
- Electrical connection 7 p.3
- Technical data 58 p.3
- List of contents p.3
- Dimensions and connections 3 p.3
- Start up 31 p.3
- Laying coolant lines 29 p.3
- Design and components p.3
- Set up and installation 13 p.3
- Intended use p.3
- Decommissioning 35 p.3
- Set up 5 p.3
- Instructions for operating safety p.3
- Circuit diagram daikin altherma ehs x h 64 p.3
- Service and maintenance 38 p.3
- Initial commissioning 31 p.3
- Characteristic lines 61 p.3
- Safety 4 p.3
- Hydraulic system connection 55 p.3
- Avoid danger p.3
- Removing the protective cover 38 p.3
- General 38 p.3
- Activities to be performed annually 38 p.3
- Recognising errors correcting malfunctions 42 p.3
- Final shutdown 37 p.3
- Filling the system with water 30 p.3
- Re commissioning 33 p.3
- Filling and topping up the storage tank 40 p.3
- Product description 7 p.3
- Filling and topping up the heating system 41 p.3
- Pressure test and filling the coolant circuit 30 p.3
- Fault codes 47 p.3
- Observing instructions p.3
- Errors malfunctions and messages 42 p.3
- Water connection 6 p.3
- Notes 65 p.3
- Warning signs and explanation of symbols p.3
- Monitoring and configuration dip switch 53 p.3
- Equipment data 58 p.3
- X safety p.4
- Warning signs and explanation of symbols p.4
- Validity p.4
- Special warning signs p.4
- Safety p.4
- Relevant documents p.4
- Observing instructions p.4
- Meaning of the warnings p.4
- Handling instructions p.4
- Intended use p.5
- Instructions for operating safety p.5
- Electrical installation p.5
- Before working on the hydraulic system p.5
- Avoid danger p.5
- X safety p.5
- X safety p.6
- Working on cooling systems heat pump p.6
- Site of installation p.6
- Requirements for the heating water p.6
- Operation p.6
- Instructing the user owner p.6
- Heating system and sanitary connection p.6
- X product description p.7
- Top of unit p.7
- Product description p.7
- Design and components p.7
- X product description p.8
- Fig 2 2 design and components of the daikin altherma ehs x h p30a external view and internal design for legend descriptions see tab 2 1 p.8
- Device external and internal design daikin altherma ehs x h p30a p.8
- Device external and internal design daikin altherma ehs x h b p30a p.9
- X product description p.9
- Fig 2 3 design and components of the daikin altherma ehs x h b p30a external view and internal design for legend descriptions see tab 2 1 p.9
- X product description p.10
- Fig 2 4 design and components of the daikin altherma ehs x h p50a external view and internal design for legend descriptions see tab 2 1 p.10
- Device external and internal design daikin altherma ehs x h p50a p.10
- X product description p.11
- Fig 2 5 design and components of the daikin altherma ehs x h b p50a external view and internal design for legend descriptions see tab 2 1 p.11
- Device external and internal design daikin altherma ehs x h b p50a p.11
- X product description p.12
- X set up and installation p.13
- Set up and installation p.13
- Dimensions and connections p.13
- Daikin altherma ehs x h p30a p.13
- Daikin altherma ehs x h p50a p.14
- X set up and installation p.14
- Scope of delivery p.15
- X set up and installation p.15
- Set up p.15
- X set up and installation p.16
- Water connection p.16
- X set up and installation p.17
- Electrical connection p.17
- Connecting hydraulic lines p.17
- X set up and installation p.18
- Overall connection plan daikin altherma ehs x h p.18
- Fig 3 7 overall connection diagram for electrical connection during device installation p.18
- Explanation of symbols and abbreviations in this chap ter see tab 3 2 and tab 3 3 p.18
- The a1p circuit board comes pre connected to the unit no as sembly or connection work is necessary on the a1p circuit board p.19
- Terminal assignment for the rtx ehs circuit board p.19
- Terminal assignment for the rtx al4 circuit board p.19
- Position of the circuit boards p.19
- Connection assignment circuit board a1p p.19
- X set up and installation p.19
- X set up and installation p.20
- Removing the protective cover p.20
- Mains connection daikin altherma ehs x h p.20
- Connection assignment circuit board rocon bm1 p.20
- X set up and installation p.21
- Opening the control housing and establishing electrical connections p.21
- Connection of external temperature sensor rocon ot1 p.21
- Connection of erlq exterior heat pump unit p.21
- X set up and installation p.22
- External demand signal eds p.22
- Connection of an external switching contact p.22
- Connection variant 2 p.23
- Connection variant 1 p.23
- Connection of the electrical daikin backup heater ekbuxx p.23
- Connection of an external heat generator p.23
- X set up and installation p.23
- X set up and installation p.24
- Caution p.24
- X set up and installation p.25
- Daikin room station ehs157034 p.25
- Daikin mixer module ehs157068 p.25
- Connection optional daikin rocon system components p.25
- Connection of the daikin room thermostat p.25
- X set up and installation p.26
- Low tariff mains connection ht nt p.26
- Internet gateway daikin ehs157056 p.26
- Connection switch contacts aux outputs p.26
- Connection of the daikin fwxv 15 20 aveb p.26
- C onnection of the daikin fwxv 15 20 aveb p.26
- Symbols and legend keys on connection and circuit diagrams p.27
- Connection intelligent controller smart grid sg p.27
- X set up and installation p.27
- X set up and installation p.28
- X set up and installation p.29
- Laying coolant lines p.29
- X set up and installation p.30
- Pressure test and filling the coolant circuit p.30
- Filling the system with water p.30
- Filling the storage tank p.30
- Filling the hot water heat exchanger p.30
- Filling the heating system p.30
- Checking the water quality and adjusting the pressure gauge p.30
- Start up p.31
- Set the commissioning parameters p.31
- Requirements p.31
- L commissioning p.31
- Initial commissioning p.31
- X start up p.31
- X start up p.32
- Venting the internal heating circulation pump p.32
- Expert p.32
- X start up p.33
- Start up p.33
- Requirements p.33
- Re commissioning p.33
- Configuring screed program parameters only if necessary p.33
- Check minimum flow p.33
- Activating the parameter air purge p.33
- X start up p.34
- Without solar installation p.35
- Temporary shutdown p.35
- Draining the storage tank p.35
- Decommissioning p.35
- X decommissioning p.35
- X decommissioning p.36
- Only for the solar installation p.36
- Draining the heating circuit and hot water circuit p.36
- X decommissioning p.37
- Recommendations for disposal p.37
- Final shutdown p.37
- X service and maintenance p.38
- Service and maintenance p.38
- Removing the protective cover p.38
- Legal requirements p.38
- General p.38
- Activities to be performed annually p.38
- X service and maintenance p.39
- With kfe filling connection or with installed solar system see also chapter 5 p.40
- Filling and topping up the storage tank p.40
- X service and maintenance p.40
- Without installed solar system p.40
- X service and maintenance p.41
- Filling and topping up the heating system p.41
- X errors malfunctions and messages p.42
- Troubleshooting p.42
- Recognising errors correcting malfunctions p.42
- Read protocol p.42
- Errors malfunctions and messages p.42
- Current fault display p.42
- X errors malfunctions and messages p.43
- Malfunctions p.43
- X errors malfunctions and messages p.44
- X errors malfunctions and messages p.45
- X errors malfunctions and messages p.46
- Fault codes p.47
- X errors malfunctions and messages p.47
- X errors malfunctions and messages p.48
- X errors malfunctions and messages p.49
- X errors malfunctions and messages p.50
- X errors malfunctions and messages p.51
- X errors malfunctions and messages p.52
- Touching live parts can result in an electric shock and lead to potentially fatal injuries and burns p.53

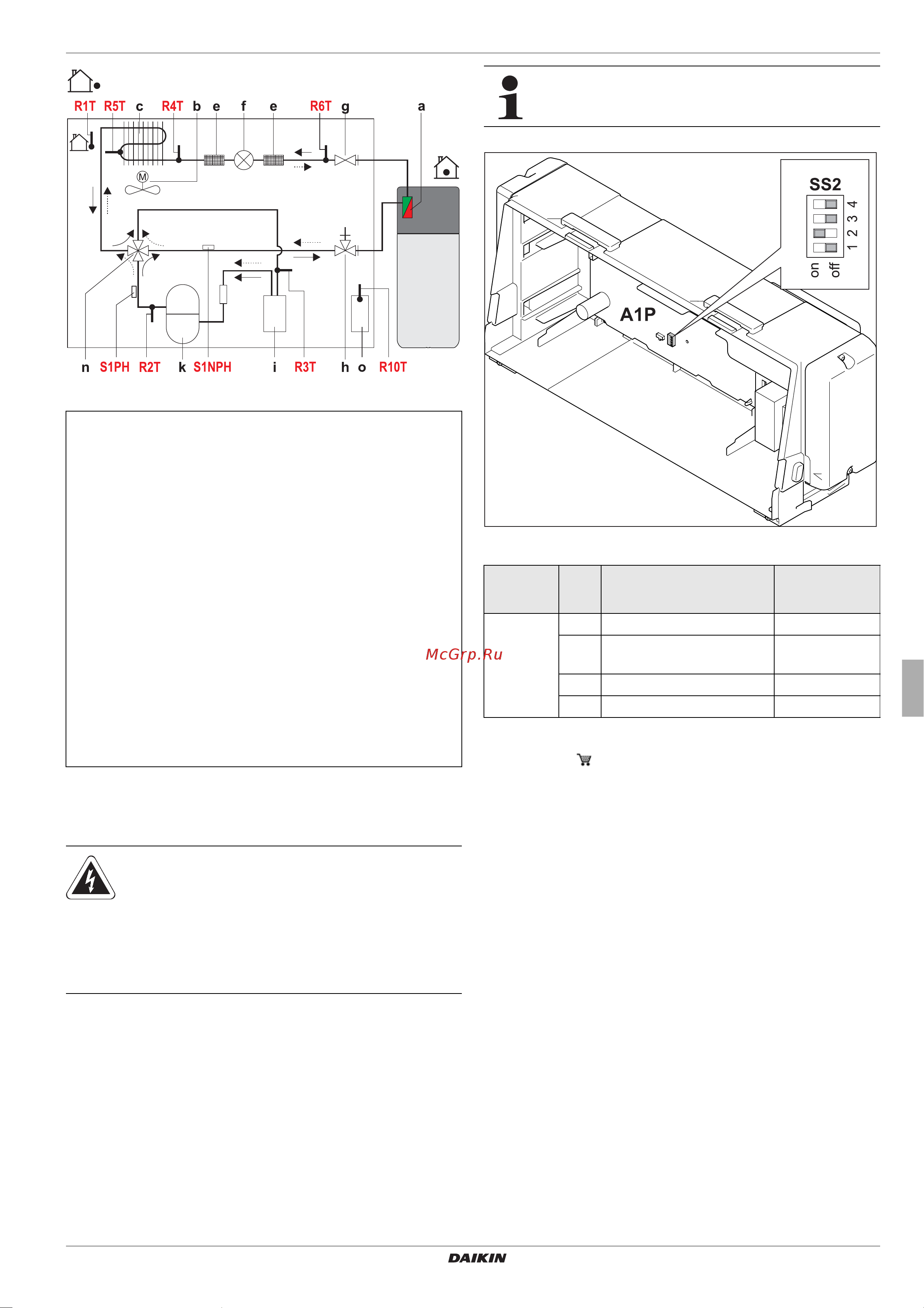

- Pump continuous running off p.53
- No designation factory setting p.53
- Monitoring and configuration dip switch p.53
- Domestic hot water gener ation on p.53
- Do not change off p.53
- Disconnect the system from the power supply open the control housing and remove the rocon bm1 board see chapter 3 check the dip switch setting on the a1p circuit board of the daikin altherma ehs x h adjust where necessary see tab 7 4 the factory preset may only be changed if e g an optional accessory was connected replace the rocon bm1 switch board close the control housing and reconnect the power supply p.53
- Dip switch settings are not recognised until a brief inter ruption to the power supply p.53
- Dip switch p.53
- Before beginning work on live parts disconnect all of the systems circuits from the power supply switch off main switch disconnect fuse and secure against unintentional restart p.53
- X errors malfunctions and messages p.53
- Warning p.53
- X errors malfunctions and messages p.54
- Emergency operation p.54
- X hydraulic system connection p.55
- Hydraulic system connection p.55
- X hydraulic system connection p.56
- X hydraulic system connection p.57
- X technical data p.58
- Technical data p.58
- Equipment data p.58
- Daikin altherma ehs x h p30a p.58
- X technical data p.59
- X technical data p.60
- Daikin altherma ehs x h p50a p.60
- Characteristic lines p.61
- X technical data p.61
- Sensor characteristic lines p.61
- X technical data p.62
- Sensor resistance in ohm p.62
- Sensor output frequency in hz p.62
- Pt 1000 p.62
- Measured temperature in c p.62
- Measured flow in l min p.62
- M l min p.62
- Fls sensor flow temperature p.62
- 14 229 hz p.62
- X technical data p.63
- Tightening torque p.63
- Characteristic curves for pumps p.63
- Fig 9 8 circuit diagram daikin altherma ehs x h for legend see tab 3 3 p.64
- Circuit diagram daikin altherma ehs x h p.64
- X technical data p.64
- X notes p.65
- X notes p.66
- X list of keywords p.67
- Numerics p.67
- List of keywords p.67
Похожие устройства
-
Daikin EVLQ08CAV3Руководство по применению для установщика -
Daikin EVLQ08CAV3Справочное руководство для монтажника
-
Daikin EVLQ08CAV3Общие правила техники безопасности -
Daikin EVLQ08CAV3Инструкция по монтажу -
Daikin EVLQ05CAV3Справочное руководство для монтажника
-
Daikin EVLQ05CAV3Руководство по применению для установщика
-
Daikin EVLQ05CAV3Общие правила техники безопасности
-
Daikin EVLQ05CAV3Инструкция по монтажу
-
Daikin EHYKOMB33AA3Справочное руководство для монтажника -
Daikin EHYKOMB33AA3Руководство по применению для установщика -
Daikin EHYKOMB33AA3Руководство по эксплуатации -
Daikin EHYKOMB33AA2Руководство по применению для установщика
Discover essential troubleshooting tips and maintenance guidelines for integrated heat pump systems. Ensure optimal performance and resolve common error messages effectively.
