3 x Set-up and installation

EKHWP300/500A

Hot water storage tank for air-water heat pumps and solar panels

4PW55928-1

Installation instructions

3.2 Set-up

• Remove the packaging and dispose of it in an environmentally sound manner.

• Transport the hot water storage tank carefully, using the handles provided.

• Install the hot water storage tank at the installation site. Recommended wall distance of 200 mm must be observed.

3.3 Installation

3.3.1 Scope of delivery

– Hot water storage tank EKHWP300A or EKHWP500A

– Connection kit for air-water heat pump EKHBRD*

3.3.2 Overview of connections

CAUTION!

• Only erect the EKHWP300/500A hot water storage tank if a ground load-bearing capacity of

1050 kg/m² plus safety factor is guaranteed. The ground must be flat and level.

• Erection outdoors is only possible to a limited extent. The storage tank must not be exposed to

continuous direct sunlight, as the UV radiation and the effects of the weather will damage the plastic.

• The EKHWP300/500A hot water storage tank must be protected from frost.

• Make sure that the supply company does not provide corrosive domestic water.

– Suitable water treatment may be required.

Incorrect set-up and installation would render the manufacturer's guarantee void.

If you have questions, please contact our Technical Customer Service.

1 Solar: Flow (1“ union nut)

2 Cold water supply (1“ male)*

3 Hot water (1“ male)*

4 Storage tank charging flow (1“ male)*

5 Storage tank charging return (1“ male)*

6 Solar support return (EKHWP500A only) (1“ male)*

7 Solar support flow (EKHWP500A only) (1“ male)*

10 Storage tank ( polypropylene double walled jacket with PUR hard foam

heat insulation)

17 Not used

19 Fill level indicator

21 Sensor pocket for tank temperature sensor

25 Type plate

26 Safety overflow connection (Tr. 32x3 male)

* Recommended accessory: EKSGB non-return valves (2 ea.)

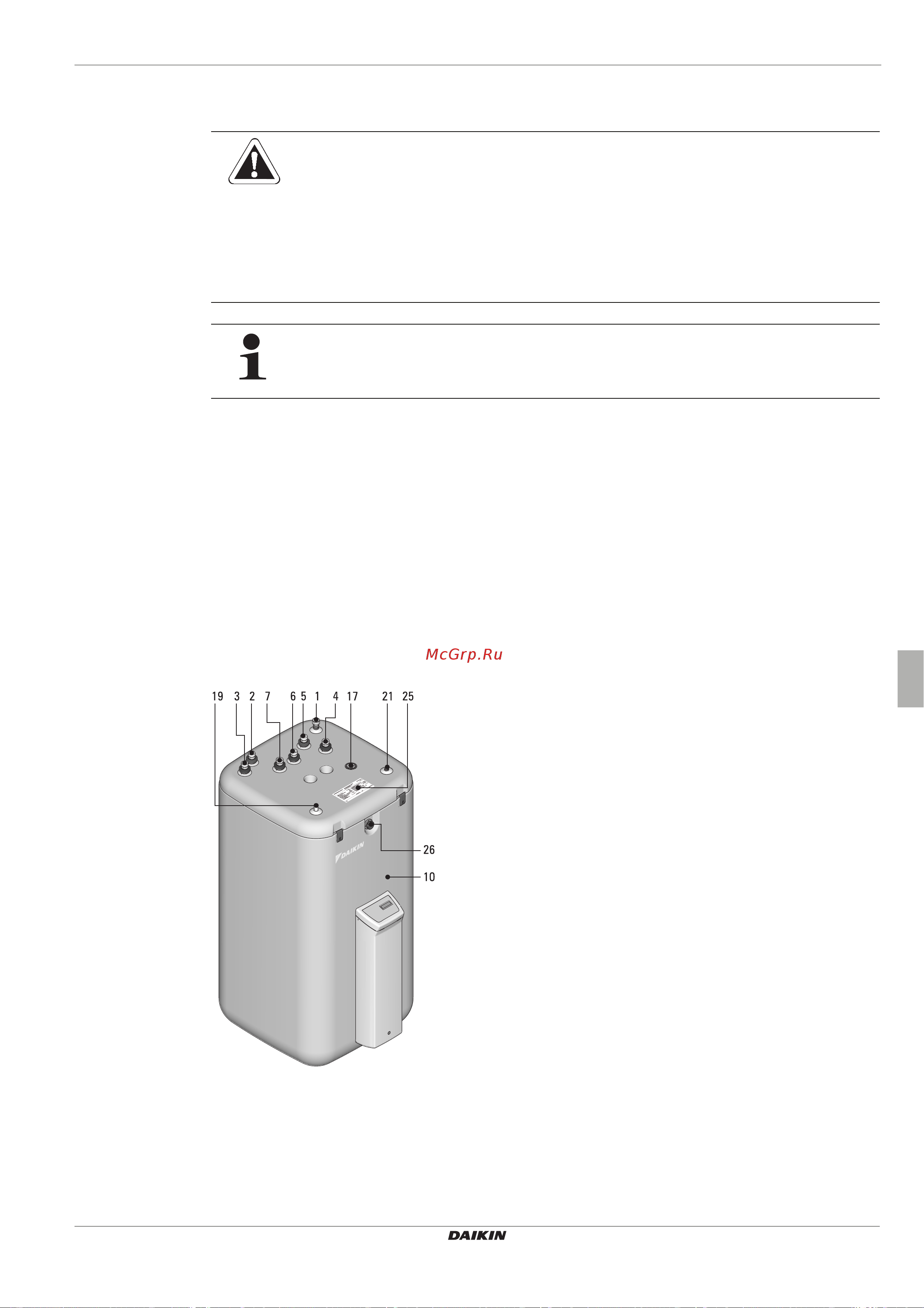

Fig. 3-3 External connections (shown on EKHWP500A)
