3 x Set-up and installation
Installation instructions
16
EKHWP300/500A
Hot water storage tank for air-water heat pumps and solar panels
4PW55928-1
• Connect the flexible hoses as shown in Fig 3-13.
First remove the blanking plug on the return connection on the unit.
1 Plan view (top)
2 Elevation
3 Rear cladding
A1 Flow hose
A2 Return hose
B Sealing plug with gasket
CClamps
DClamp
E Mounting bracket for 3-
way diverter valve with
fixing screws
I Sealing lip for transition
on rear panel housing
J Grommet for cable
transition on rear panel
housing
K Thermistor for hot water
storage tank

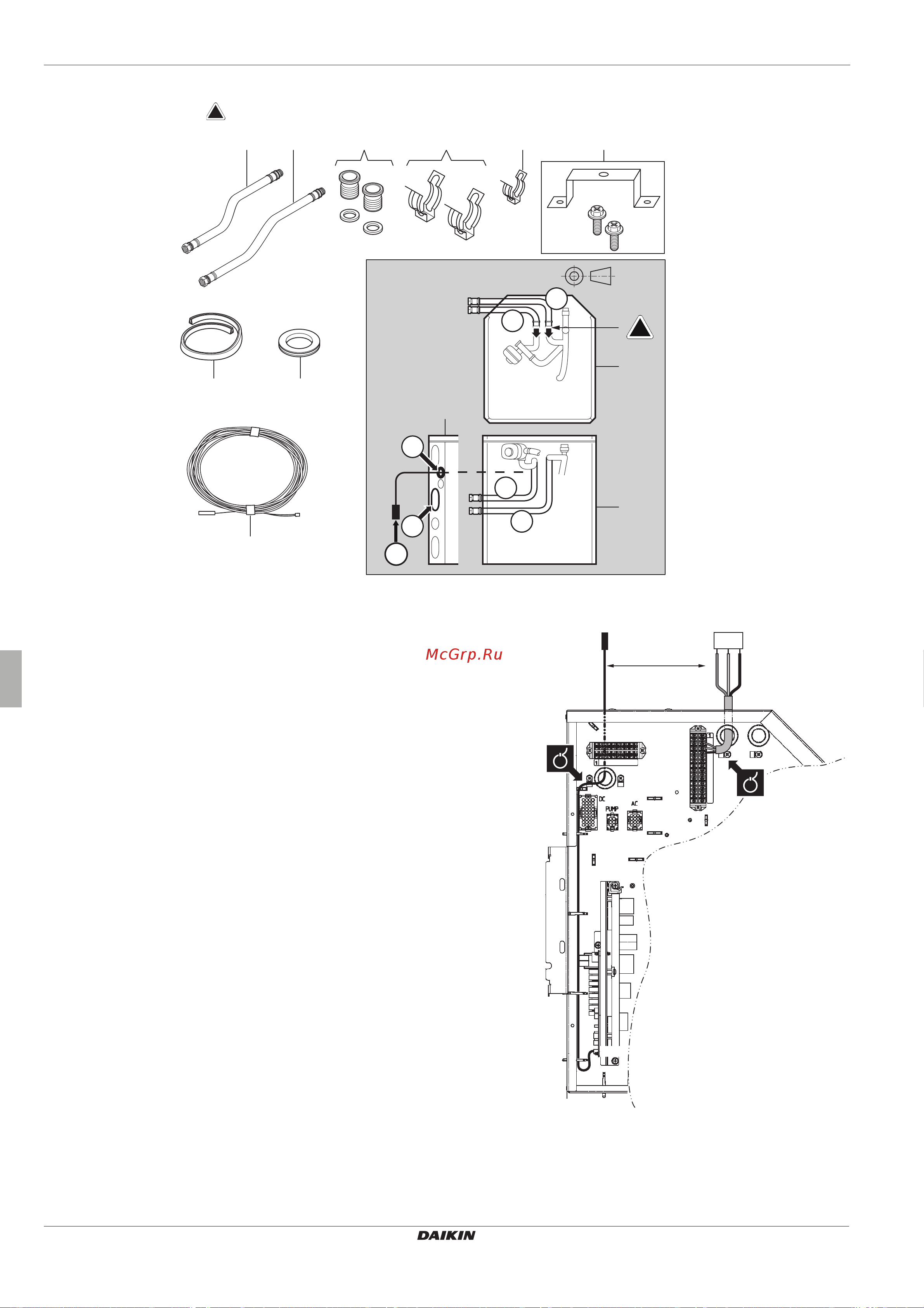

Fig. 3-13 Connection of flexible hoses in the internal unit
• Connect the thermistor cable to the switch box in the
internal unit. Make sure that the power supply is switched
off. See the electrical circuit diagram supplied with the
internal unit for this.
The distance between the thermistor cable and the mains
cable must always be at least 50 mm, so that the thermistor
cable is not subjected to any electromagnetic interference.
• Plug the connector on the thermistor cable into socket X11A
on the PCB.
• For strain relief, fasten the cable to the corresponding anchor
points with cable ties.
• When laying the cables, take care that the cables do not
obstruct the attachment of the internal unit covers.
Note: Only the relevant on-site cabling is shown.
• Insert the thermistor to a depth of 80 cm in the probe tube
(see EKSRPS3 operating and installation instructions).
Fig. 3-14 Connection of the internal unit
!
K
1
2
3
J
I
A1
A2
A1
A2
DCB
JI
K
A1
A2
E
!
BLU
BLK
BRN
NYL
3-way
valve
X11A
A3P
X2M
3
4
5
3
4
5
>50 mm
