Daikin EKHWP500A [15/24] X set up and installation

3 x Set-up and installation

• Establish the electrical connections in the switch box of the internal unit. See the following illustration for this:

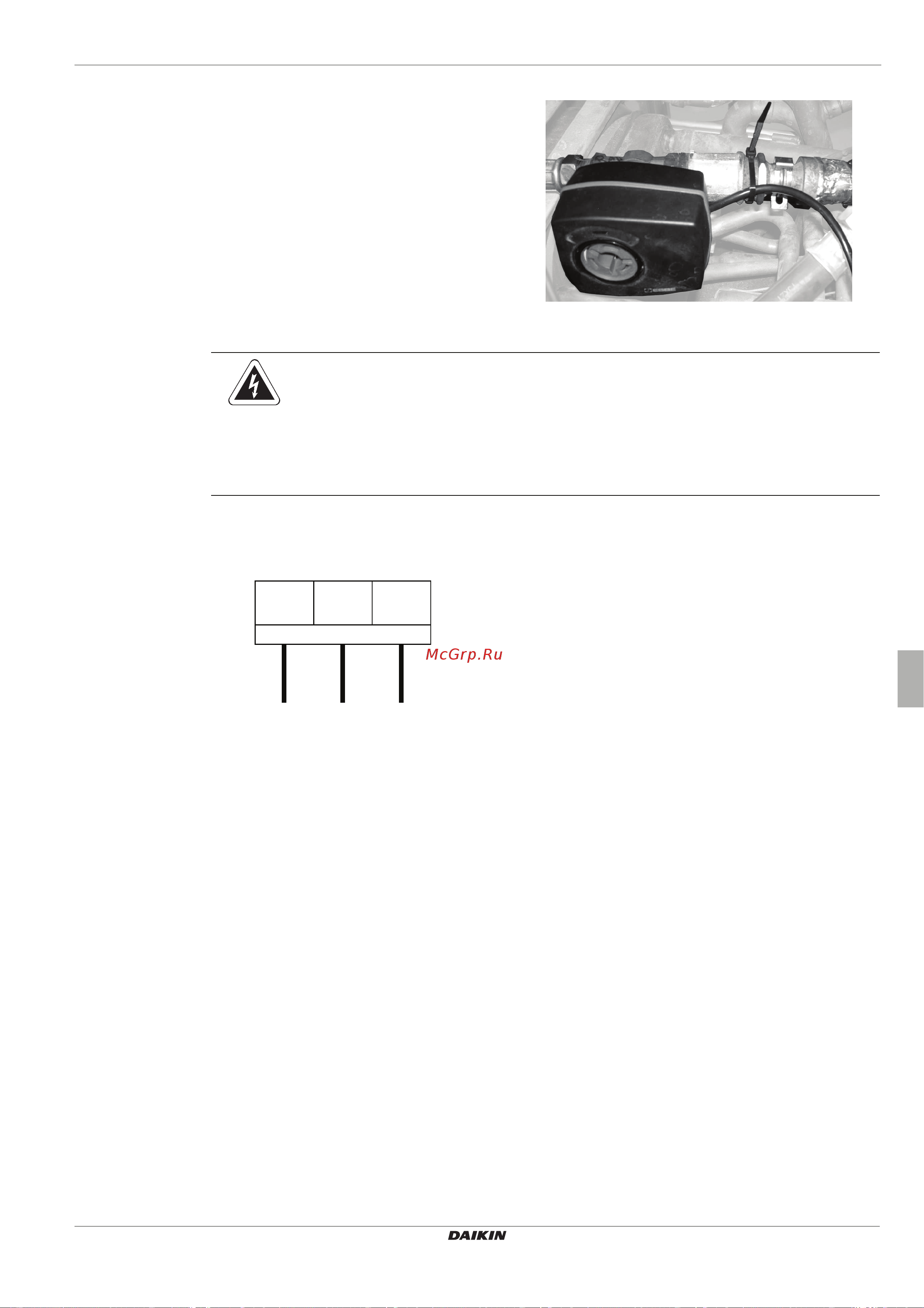

Fig. 3-12 Electrical connection of the 3-way diverter valve to the internal unit

Make sure that the cabling within the unit is carried out properly (you can find the diagram for this in the installation instructions

for the internal unit). See also the electrical circuit diagram supplied with the internal unit.

• Fasten the power supply cable securely to the body of

the 3-way diverter valve with a customer-supplied cable

tie - see Fig 3-11.

Fig. 3-11 Power supply cable for the 3-way diverter valve

WARNING!

Live parts can cause an electric shock on contact and cause life-threatening burns and injuries.

• Before beginning work on live parts, disconnect them from the power supply (fuse, switch off main

switch) and secure against switching on again.

• The electrical connection should only be performed by electrical engineers in compliance with appli-

cable standards and guidelines as well as the specifications of the energy supply company.

X2M

345

3-way switch valve

BLU

BLK

BRN

NYL
