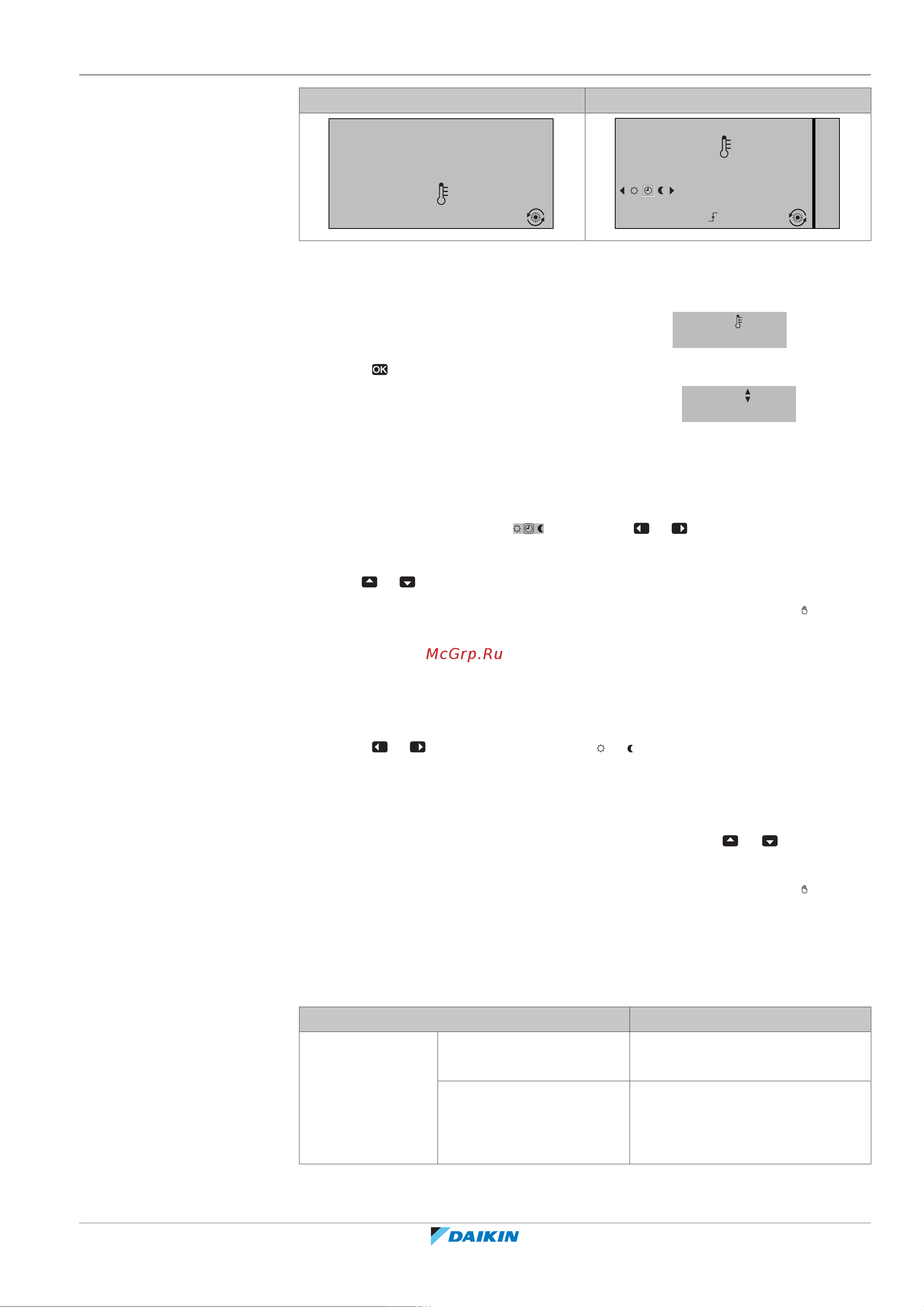

4 | Operation
User reference guide
17
CHYHBH05+08AF + EHYKOMB33AA
Daikin Altherma R Hybrid
4P471762-1B – 2020.10
User profile = Basic User profile = Detailed
15:20
20.0°C
Mon
Room
Actual temperature
15:20
20.0°C
17:30
Actual temperature
Room
Scheduled
Mon
Tue
To read out the actual and desired room temperature
1 Go to the room temperature home page (Room).
Result: You can read out the actual temperature.
20.0°C
Actual temperature
2 Press .
Result: You can read out the desired temperature.
22.0°C
Desired temperature
To temporarily overrule the room temperature schedule
1 Go to the room temperature home page (Room).
2 In the detailed home page (user profile = Detailed), select the scheduled
room temperature mode ( ) by pressing or .
Result: The room temperature follows the scheduled value.
3 Use or to adjust the temperature.
Result: The room temperature follows the manually adjusted value ( ), but will
return to the scheduled value at the next scheduled action.
To change the mode from scheduled to preset value
Prerequisite: User profile = Detailed.
1 Go to the room temperature home page (Room).
2 Press or to select a preset value ( or ).
Result: The room temperature follows the preset value (Comfort or Eco),
but will return to the scheduled value after the overrule period
(=Temperature lock: 2/4/6/8 hours or permanent).
3 If necessary, you can overrule the preset value by using or to adjust the
temperature.
Result: The room temperature follows the manually adjusted value ( ), but will
return to the scheduled value after the overrule period (= Temperature
lock: 2/4/6/8 hours or permanent).
Example: Temporarily overruling the schedule AND changing the mode to preset value
You have configured the following settings:
Settings Description
Preset values Comfort (heating) =
20°C
Desired temperature when you
are at home.
Eco (heating) = 18°C Desired temperature:
▪ When you are away
▪ During the night
