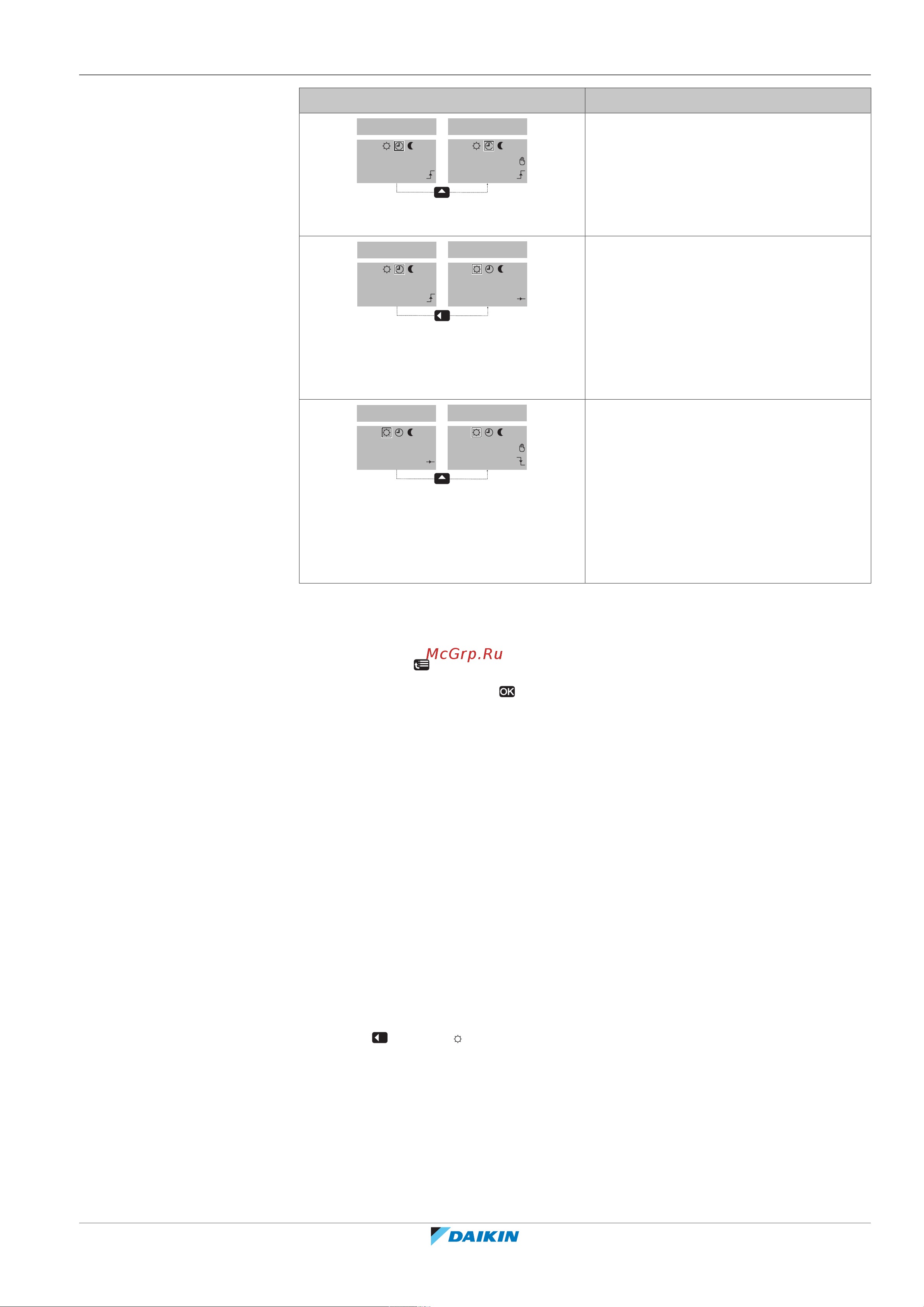

4 | Operation
User reference guide
19
CHYHBH05+08AF + EHYKOMB33AA
Daikin Altherma R Hybrid
4P471762-1B – 2020.10
Situation Description
17:00
18.0°C
17:00
19.0°C
Mon
Mon
Scheduled
Scheduled
You temporarily overrule the schedule.
Desired temperature = custom
temperature = 19°C.
At the next scheduled action (17:00),
the schedule will be used again.
17:00
18.0°C
17:20
20.0°C
Scheduled
Scheduled
Mon
Mon
You change the mode from scheduled
to preset value (Comfort
(heating)).
Desired temperature = preset value
(Comfort (heating)) = 20°C.
After 2hours, the schedule will be used
again (17:20 => 20°C).
17:20
20.0°C
17:20
21.0°C
Scheduled
Scheduled
Mon
Mon
Before you have changed the mode
from scheduled to preset value, and
now you temporarily overrule the
preset value.
Desired temperature = custom
temperature = 21°C.
After 2hours, the schedule will be used
again (17:20 => 20°C).
To set the overrule period
Prerequisite: You switched the permission level to Advanced end user.
1 Go to [7.2]: > User settings > Temperature lock.
2 Select a value and press :
▪ Permanent
▪ hours (2, 4, 6, 8)
Usage example: You have a party
If you are in the following situation:
▪ You are using the following room temperature schedule:
- 17:00 preset value (Comfort) = 20°C
- 23:00 preset value (Eco) = 18°C
▪ Tonight you have a party and you want to use the preset value (Comfort) until
02:00.
Then you can do the following:
1 Set the overrule period (Temperature lock) to 6hours.
2 At 20:00, go to the room temperature home page (Room).
3 Press to select .
Result: The preset value (Comfort) will be used until 02:00. After that, the
schedule will be used again.
Usage example: You go away for a couple of hours
If you are in the following situation:
