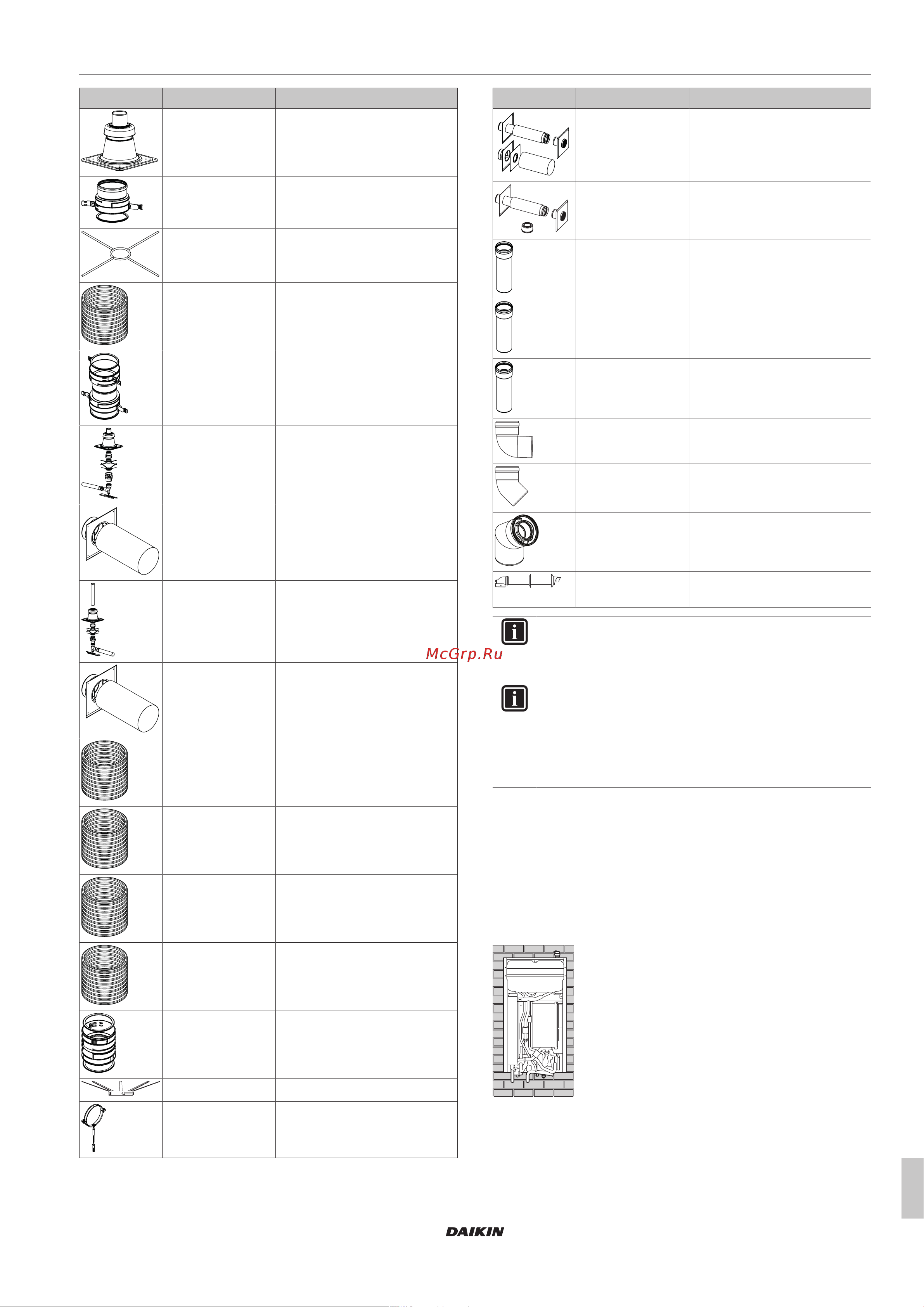

Daikin EHYKOMB33AA3 [11/44] Preparation
![Daikin EHYKOMB33AA3 [11/44] Preparation](/views2/1798425/page11/bgb.png)
6 Preparation
Installation and operation manual
11
EHYKOMB33A
Daikin Altherma hybrid heat pump – gas boiler module
4P353067-1K – 2020.10
Accessories Part number Description
EKFGP5197 Chimney top PP 130 with
included flue pipe
EKFGS0252 Adapter flex-fixed PP130
EKFGP6353 Support bracket top inox Ø130
EKFGS0250 Extension flex PP130 L=130m
EKFGP6366 Connector flex-flex PP130
EKFGP1856 Flex kit PPØ60-80
EKFGP4678 Chimney connection 60/100
EKFGP2520 Flex kit PP Ø80
EKFGP4828 Chimney connection 80/125
EKFGP6340 Extension Flex PP80 L=10m
EKFGP6344 Extension Flex PP80 L=15m
EKFGP6341 Extension Flex PP80 L=25m
EKFGP6342 Extension Flex PP80 L=50m
EKFGP6324 Connector-flex-flex PP80
EKFGP6333 Spacer PP80-100
EKFGP4481 Fixation Ø100
Accessories Part number Description
EKFGV1101 Chimney connection 60/10
airintake Dn.80 C83
EKFGV1102 Connection set 60/10-60 Flue/
Air intake Dn.80 C53
EKFGW4001 ExtensionPBM-Air 80×500
EKFGW4002 ExtensionPBM-Air 80×1000
EKFGW4004 ExtensionPBM-Air 80×2000
EKFGW4085 ElbowPPBM-Air8090°
EKFGW4086 ElbowPPBM-Air8045°
EKGFP1289 ElbowPP/GALV 60/100 50°
EKGFP1299 Kit horizontal low profile PP/
GLV 60/100 (UK only)
INFORMATION
For extra configuration options regarding the flue gas
system, visit http://fluegas.daikin.eu/.
INFORMATION
For the installation of the flue and air supply duct material,
see the manual included with the materials. Contact the
manufacturer of the relevant flue and air supply duct
materials for extensive technical information and specific
assembly instructions.
6 Preparation
6.1 Preparing the gas boiler
installation
Make sure that the hydrobox is already mounted to the wall.
It is recommended to first install:
▪ the water piping,
▪ the refrigerant piping,
▪ the electrical connection to the heat pump module.
