7 Installation
Installation and operation manual
24
EHYKOMB33A
Daikin Altherma hybrid heat pump – gas boiler module
4P353067-1K – 2020.10

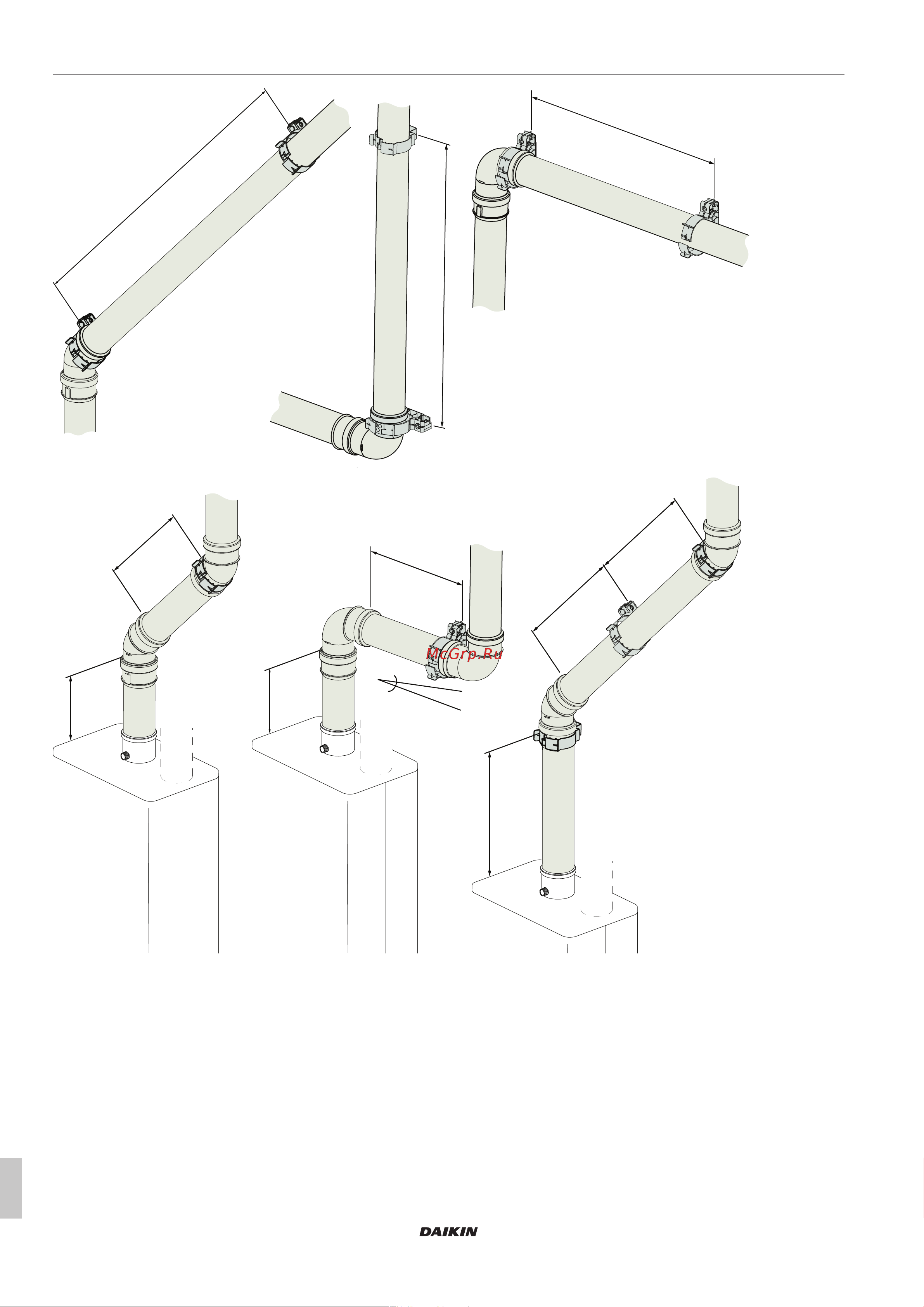

≤1000 mm
≤2000 mm
≤1000 mm
≤250 mm
≤250 mm
≤250 mm
≤250 mm
≥3° (50 mm/m)
≤1000 mm
≤1000 mm
≤500 mm
a
b
a Second clamp after the second elbow
b First clamp after the second elbow
7.8 Finishing the gas boiler installation
7.8.1 To close the gas boiler
1 Hook the top of the front panel into the top of the gas boiler.
