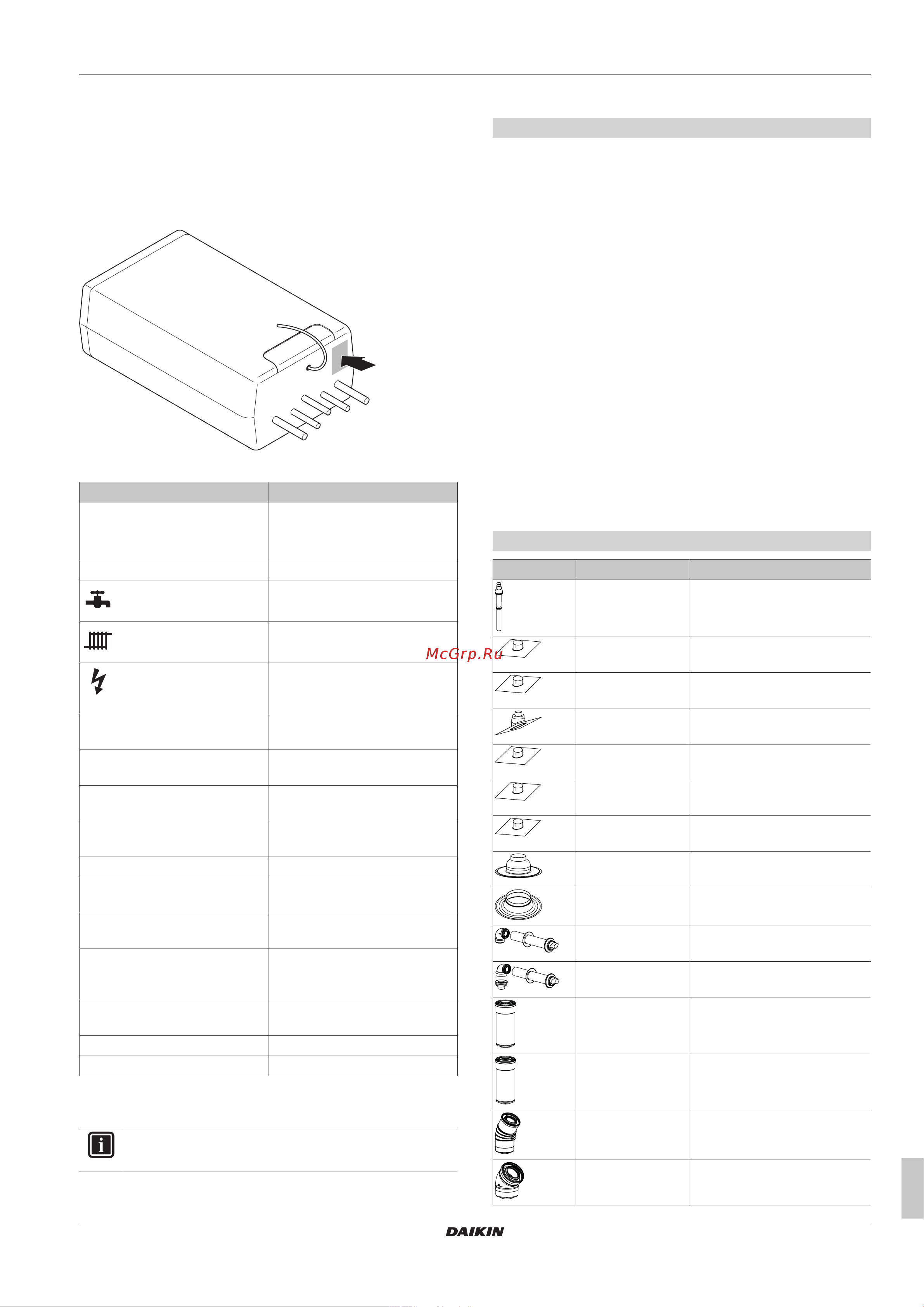

5 About the units and options
Installation and operation manual
9
EHYKOMB33A
Daikin Altherma hybrid heat pump – gas boiler module
4P353067-1K – 2020.10
5 About the units and options
5.1 Identification
5.1.1 Identification label: Gas boiler
Location
Model identification
Unit detail Description
******-yymm****** Product code-Serial No.
yy = year of production, mm =
month of production
PIN Product Identification Number
Data related to domestic hot
water
Data related to space heating
Information regarding electrical
power supply (Voltage, mains
frequency, elmax, IP-class)
PMS Permissible overpressure in
space heating circuit
PWS Permissible overpressure in
domestic hot water circuit
Qn HS Input related to gross caloric
value in kilowatts
Qn Hi Input related to net caloric value
in kilowatts
Pn Output in kilowatts
DE, FR, GB, IT, NL Countries of Destination
(EN437)
I2E(s), I2H, IIELL3P, II2H3P,
II2Esi3P
Approved unit categories
(EN437)
G20-20mbar
G25-25mbar
Gas group and gas connection
pressure as set at the factory
(EN437)
B23, …., C93(x) Approved flue gas category
(EN15502)
Tmax Maximum flow temperature in °C
IPX4D Electrical protection class
5.2 Combining units and options
INFORMATION
Certain options might not be available in your country.
5.2.1 Possible options for the gas boiler
Main options
Boiler cover plate (EKHY093467)
Cover plate to protect the piping and valves of the gas boiler.
For installation instructions, see the installation manual of the cover
plate.
Gas conversion kit G25 (EKPS076227)
Kit for the conversion of the gas boiler for use with gas type G25.
Gas conversion kit G31 (EKHY075787)
Kit for the conversion of the gas boiler for use with gas type G31
(propane).
Dual pipe conversion kit (EKHY090707)
Kit for the conversion of a concentric flue gas system to a dual pipe
system.
For installation instructions, see the installation manual of the dual
pipe conversion kit.
80/125 concentric connection kit (EKHY090717)
Kit for the conversion of 60/100 concentric flue gas connections to
80/125 concentric flue gas connections.
For installation instructions, see the installation manual of the
concentric connection kit.
Other options
Accessories Part number Description
EKFGP6837 Roof terminal PP/GLV 60/100
AR460
EKFGS0518 Weather slate steep Pb/GLV
60/100 18°-22°
EKFGS0519 Weather slate steep Pb/GLV
60/100 23°-17°
EKFGP7910 Weather slate steep PF 60/100
25°-45°
EKFGS0523 Weather slate steep Pb/GLV
60/100 43°-47°
EKFGS0524 Weather slate steep Pb/GLV
60/100 48°-52°
EKFGS0525 Weather slate steep Pb/GLV
60/100 53°-57°
EKFGP1296 Weather slate flat Aluminium
60/100 0°-15°
EKFGP6940 Weather slate flat Aluminium
60/100
EKFGP2978 Wall terminal kit PP/GLV
60/100
EKFGP2977 Wall terminal kit low profile PP/
GLV 60/100
EKFGP4651 Extension PP/GLV
60/100×500mm
EKFGP4652 Extension PP/GLV
60/100×1000mm
EKFGP4664 Elbow PP/GLV 60/100 30°
EKFGP4661 Elbow PP/GLV 60/100 45°
