17

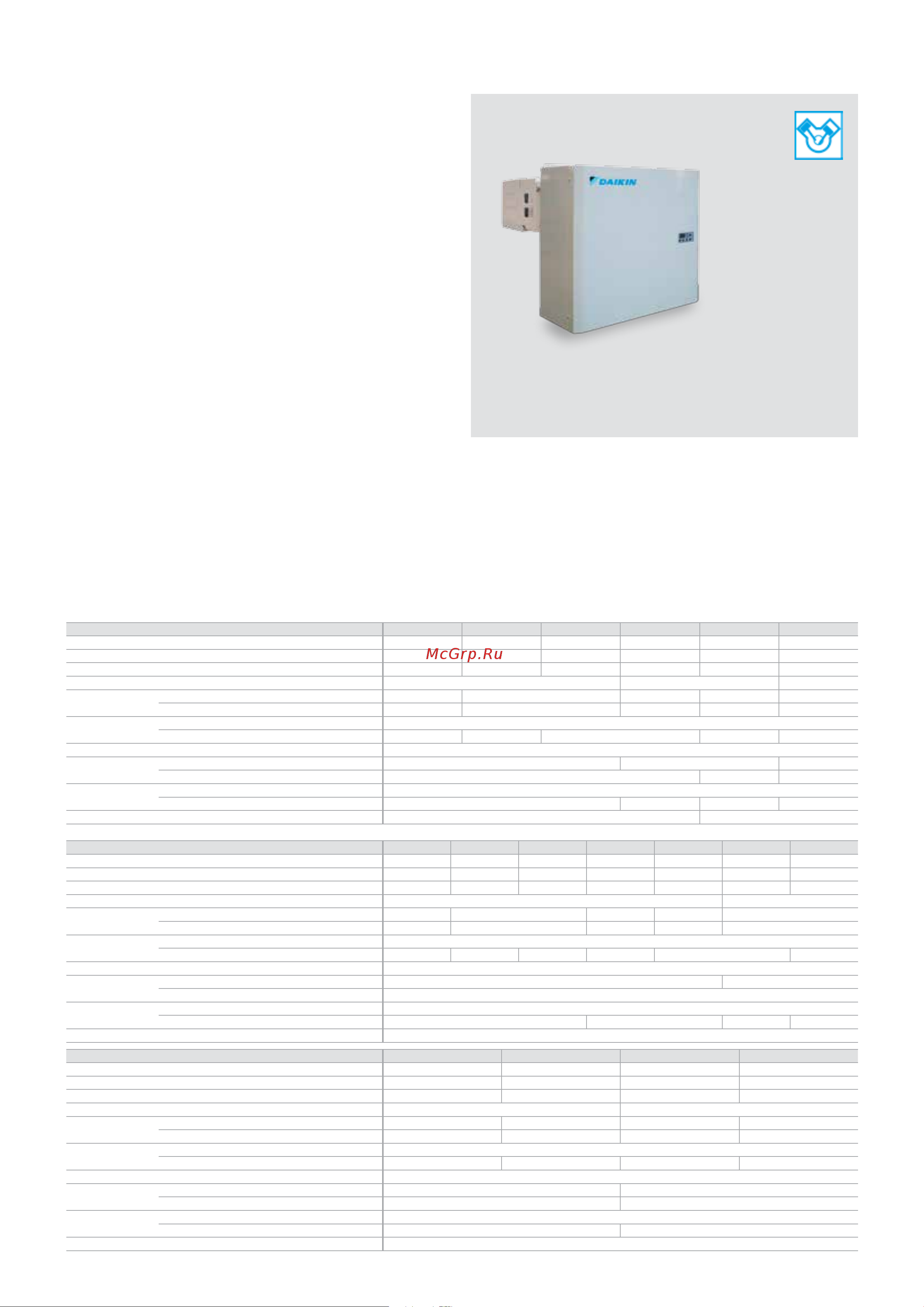

Medium Temperature Refrigeration LMSMD 030AV3 050AV3 060AV3 075AV3 100AV3 102AV3 122AV3
Refrigerating capacity
Medium temperature
R-134a Nom kW 0.838 0.952 1.112 1.388 1.491 1.768 1.920
Recomm. Cold Room Volume
Medium temperature
V 100 m³ 5.7 6.8 8.6 11.8 13.0 16.5 18.5
Power input Max. W 970 1,220 1,430 1,690 1,780 1,890 2,330
Dimensions Unit HeightxWidthxDepth mm 930x925x530 930x925x0.865
Weight Unit kg 48 49 54 55 73
Packed unit kg 63 64 69 70 90
Compressor Type Hermetic Reciprocating
Piston displacement m³/h 2.53 3.8 4.52 5.69 6.00 8.36
Defrost Hot gas
Evaporator Air ow m³/h 530 1,050
Air throw m 5
Refrigerant Type/GWP R-134a/1,430
Charge
kg/TCO2Eq
0.680/0.972 0.650/0.930 0.850/1.216 0.780/1.115
Power supply Phase/Frequency/Voltage Hz/V 1~/50/230
Medium Temperature Refrigeration LMSMD 120AW1 130AW1 150AW1 200AW1
Refrigerating capacity
Medium temperature
R-134a Nom kW 1.992 2.275 3.129 3.430
Recomm. Cold Room Volume
Medium temperature
V 100 m³ 18.5 22.7 35.7 40.3
Power input Max. W 2,420 2,790 3,070 3,380
Dimensions Unit HeightxWidthxDepth mm 930x925x865 1,030x1,150x840
Weight Unit kg 73 75 91 93
Packed unit kg 90 92 110 112
Compressor Type Hermetic Reciprocating
Piston displacement m³/h 8.36 9.37 10.52 11.81
Defrost Hot gas
Evaporator Air ow m³/h 1,050 1,370
Air throw m 5 8
Refrigerant Type/GWP R-134a/1,430.0
Charge
kg/TCO2Eq
0.8/1.115 1.6/2.288
Power supply Phase/Frequency/Voltage Hz/V 3~/50/400
LMSLN-AV/AW and LMSMD-AV/AW
Low Temperature Refrigeration LMSLN 100AV3 120AV3 170AV3 172AV3 200AW1 300AW1
Refrigerating capacity
Low temperature
R-452A Nom kW 0.579 0.807 0.922 1.193 1.526 2.090
Recomm. Cold Room Volume
Low temperature
V 100 m³ 2.2 3.9 4.9 7.6 11.4 18.1
Power input Max. W 910.00 1,300.00 2,000.00 2,080.00 2.54 3.20
Dimensions Unit HeightxWidthxDepth mm 930x925x530 930x925x865 1,030x1,150x840
Weight Unit kg 60.0 61.0 78.0 80 114
Packed unit kg 75.0 76.0 95.0 97 133
Compressor Type Hermetic Reciprocating
Piston displacement m³/h 3.03 4.54 5.99 8.3 12.9
Defrost Hot gas
Evaporator Air ow m³/h 530 1,050 1,370
Air throw m 5 5 8
Refrigerant Type/GWP R-452A/2,141
Charge
kg/TCO2Eq
0.600/1.285 0.890/1.905 0.900/1.93 1.750/3.75
Power supply Phase/Frequency/Voltage Hz/V 1~/50/230 3N~/50/400
Uni-block system
for low and medium
temperature refrigeration
For wall mounted installation in small and medium sized
cold rooms
Rapid mounting on the wall of the cold room by straddle-
mounting, which is ideal for new installations or through-wall
mounting, which is ideal for refurbishment projects
Metallic grey coloured finish of the outdoor unit
The white colour of the evaporator blends unobtrusively with the
cold room walls
Compressor compartment insulated with suitable soundproofing
material to reduce sound levels
Microchannel condensers available in order to reduce the
refrigerant charge as much as possible and ensuring higher
energy efficiency
The units are provided with a new generation control panel with
an easy-to-use interface
LMSLN-AV3/AW1 and LMSMD-AV3/AW1
