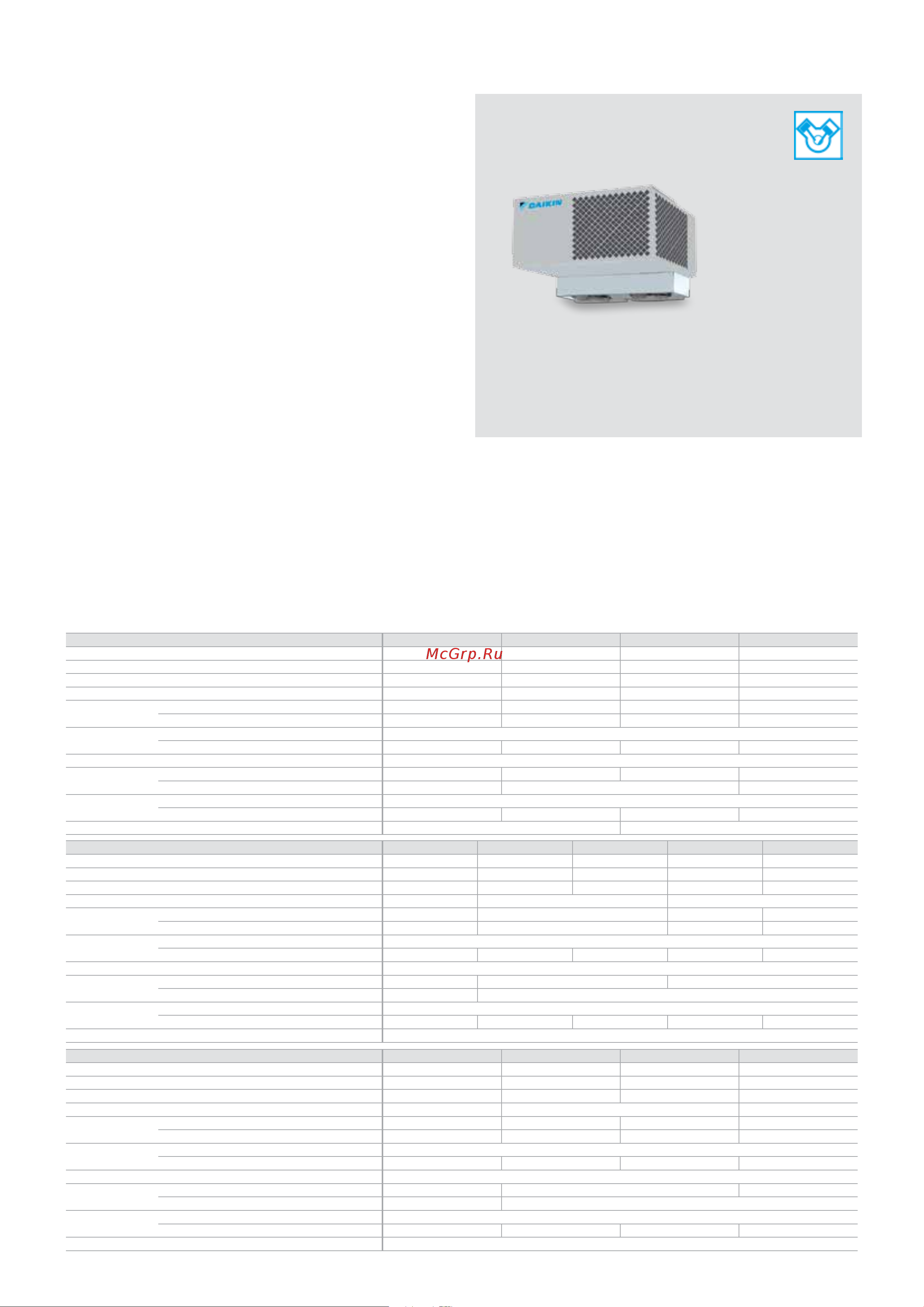

16
LMCLN-AV/AW and LMCMD-AV/AW
Low Temperature Refrigeration LMCLN 100AV3 170AV3 200AW1 300AW1
Refrigerating capacity
Low temperature
R-452A Nom kW 0.565 0.931 1.527 2.212
Recomm. Cold Room Volume
Low temperature
V 100 m³ 2.1 5 11.4 20.2
Power input Max. W 910 1,970 2,540 3,210
Dimensions Unit HeightxWidthxDepth mm 690x830x540 660x790x730 690x880x930 800x1,000x930
Weight Unit kg 48.0 68.0 87.0 102.0
Packed unit kg 61.0 82.0 222.0 124.0
Compressor Type Hermetic Reciprocating
Piston displacement m³/h 3.03 5.99 8.4 12.9
Defrost Hot gas
Evaporator Air ow m³/h 500 550 1,100 2,300
Air throw m 3 4 9.5
Refrigerant Type/GWP R-452A/2,141
Charge
kg/TCO2Eq
0.500/1.071 0.420/0.899 0.720/1.542 0.960/2.055
Power supply Phase/Frequency/Voltage Hz/V 1~/50/230 3~/50/400
Uni-block system
for low and medium
temperature refrigeration
For roof mounted installation in small and medium sized
cold rooms
Rapid mounting on the roof of the cold room
Ceiling assembly leaves the space inside the cold room
completely free
The white colour of the evaporator blends unobtrusively with the
cold room walls
Extremely fast to assemble, reducing installation time and cost
Best surface-to-capacity ratio
Remote electronic command station with easy-to-use
user interface programmable according to various system
requirements
LMCLN-AV3/AW1 and LMCMD-AV3/AW1
Medium Temperature Refrigeration LMCMD 050AV3 060AV3 075AV3 100AV3 122AV3
Refrigerating capacity
Medium temperature
R-134a Nom kW 0.836 1.091 1.302 1.761 1.979
Recomm. Cold Room Volume
Medium temperature
V 100 m³ 5.7 8.3 10.8 16.4 18.3
Power input Max. W 1,230 1,480 1,740 1,900 2,350
Dimensions Unit HeightxWidthxDepth mm 690x830x540 660x790x730 690x880x930
Weight Unit kg 42.0 59.0 74.0 75.0
Packed unit kg 55.0 73.0 95.0 97.0
Compressor Type Hermetic Reciprocating
Piston displacement m³/h 3.8 4.52 5.69 6 8.36
Defrost Hot gas
Evaporator Air ow m³/h 500 550 1,100
Air throw m 3 4
Refrigerant Type/GWP R-134a/1,430
Charge
kg/TCO2Eq
0.550/0.787 0.540/0.772 0.600/0.858 0.730/1.044 0.700/1.001
Power supply Phase/Frequency/Voltage Hz/V 1~/50/230
Medium Temperature Refrigeration LMCMD 120AW1 150AW1 200AW1 300AW1
Refrigerating capacity
Medium temperature
R-134a Nom kW 1.979 3.209 3.482 4.752
Recomm. Cold Room Volume
Medium temperature
V 100 m³ 18.3 36.9 41.1 61.1
Power input Max. W 2,430 2,930 3,220 3,670
Dimensions Unit HeightxWidthxDepth mm 690x880x930 800x1,000x930 920x1,120x1,200
Weight Unit kg 75.0 92.0 93.0 151.0
Packed unit kg 87.0 114.0 115.0 184.0
Compressor Type Hermetic Reciprocating
Piston displacement m³/h 8.36 9.37 10.52 11.81
Defrost Hot gas
Evaporator Air ow m³/h 1,100 2,300 3,450
Air throw m 4 9.5
Refrigerant Type/GWP R-134a/1,430
Charge
kg/TCO2Eq
0.700/1.001 1,150.000/1.645 1.100/1.573 2.000/2.860
Power supply Phase/Frequency/Voltage Hz/V 3~/50/400
