41

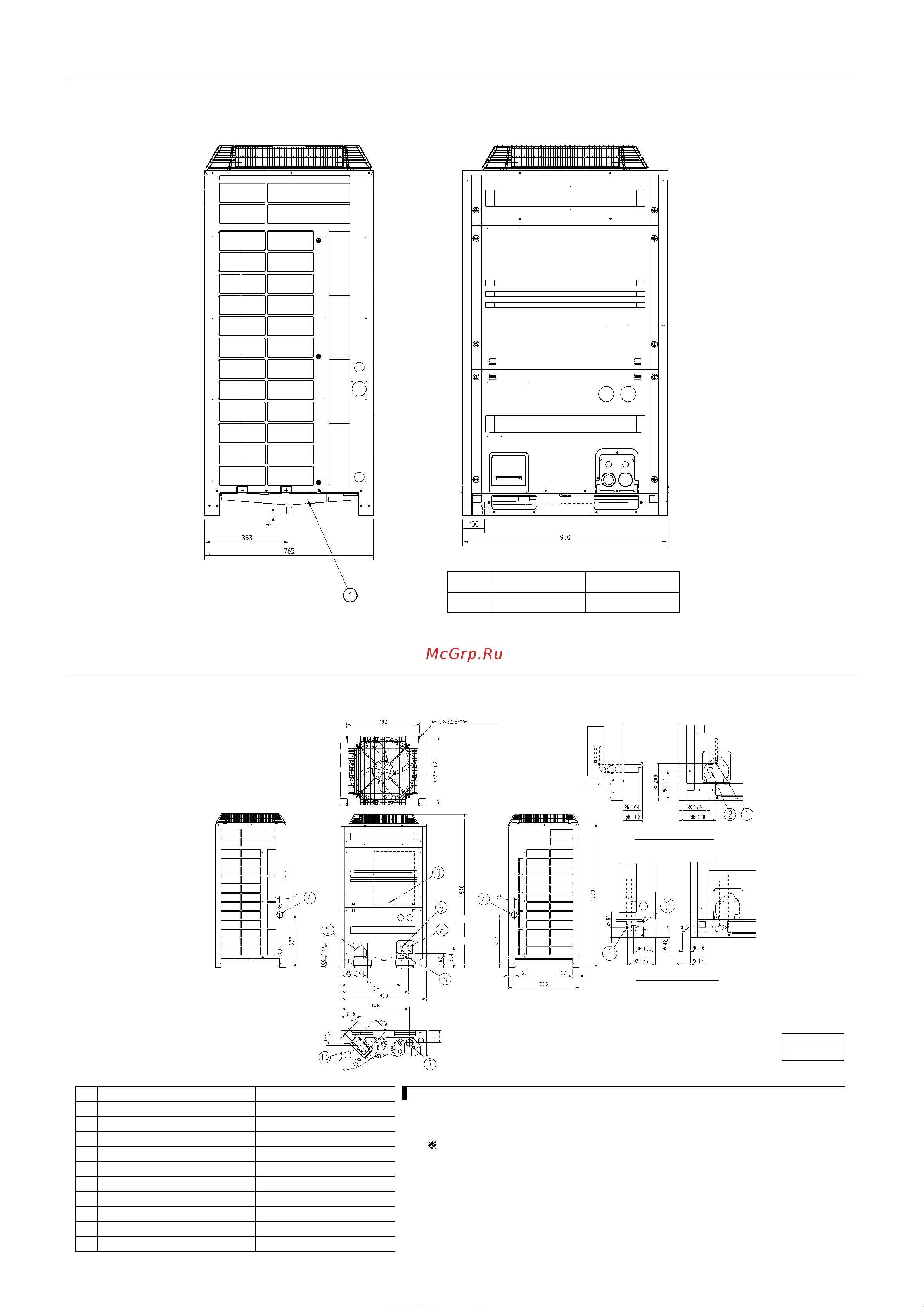

Detailed technical drawings
LREQ8-12BY1
LREQ8-12BY1
3TW27244-1
LREQ8-12BY1
Item RemarkPart name
KWC26B280Central drain pan kit1
3D076986
LREQ8-12BY1
No. Parts name Remarks
1 Liquid pipe connection port ø 12.7
2 Gas pipe connection port ø 28.6
3 Earth terminal Inside of electric component box (M8)
4 Power cord routing hole (side) ø 62
5 Power cord routing hole (front) ø 45
6 Power cord routing hole (front) ø 27
7 Power cord routing hole (bottom) ø 65.5
8 Wire routing hole (front) ø 27
9 Pipe routing hole (front)
10 Pipe routing hole (bottom)
NOTES
MODEL
LREQ8,10, 12BY1
(Foundation bolt holes)
Oblong Holes
(Pitch of foundation bolt holes)
(Knock-out hole)
(Knock-out hole)
(Knock-out hole)
(Knock-out hole)
(Knock-out hole)
Detail for front side
Detail for bottom side
(Pitch of foundation bolt holes)
1. Detail for front side and detail for bottom side
indicate the dimensions after fixing the attached piping.
2. “
“ is a size in the state where accessory piping is connected.
