21
LMSWHD-AV/
High Temperature Refrigeration LMSWHD-AV3018/AV3118 030 050 060 075
Refrigerating capacity High temperature
R-134a Nom kW 0.60 (1) 1.00 (1) 1.40 (1) 2.00 (1)
Heating capacity R-134a Nom kW 0.70 1.05 1.40 1.75
Power input Max. W 1,210 1,690 2,310 2,780
Range RH% % 60-80
Dimensions Unit HeightxWidthxDepth mm 735x400x435 735x620x435
Packed unit
HeightxWidthxDepth mm 955x495x435 955x495x655
Weight Unit kg 49 52 77 79
Packed unit kg 59 62 89 91
Compressor Type Hermetic Reciprocating
Piston displacement m³/h 1.4 2.3 3.8 5.7
Condenser Air ow m³/h 600 1,200
Defrost Air
Evaporator Air ow m³/h 600 1,200
Operation range
Cold room temperature
Min.~Max. °C 10~20
Ambient temperature
Min.~Max. °C 10~40
Refrigerant Type/GWP R-134a/1,430
Charge
kg/TCO2Eq
0.43/0.61 0.38/0.54 0.45/0.64 0.60/0.86
Power supply Phase/Frequency/Voltage Hz/V 1~/50/230
(1)When normally running: +14°C / +30°C
LMSWHD-AV3018: Version with humidifier kit included. LMSWHD-AV3118: Version without humidifier kit.

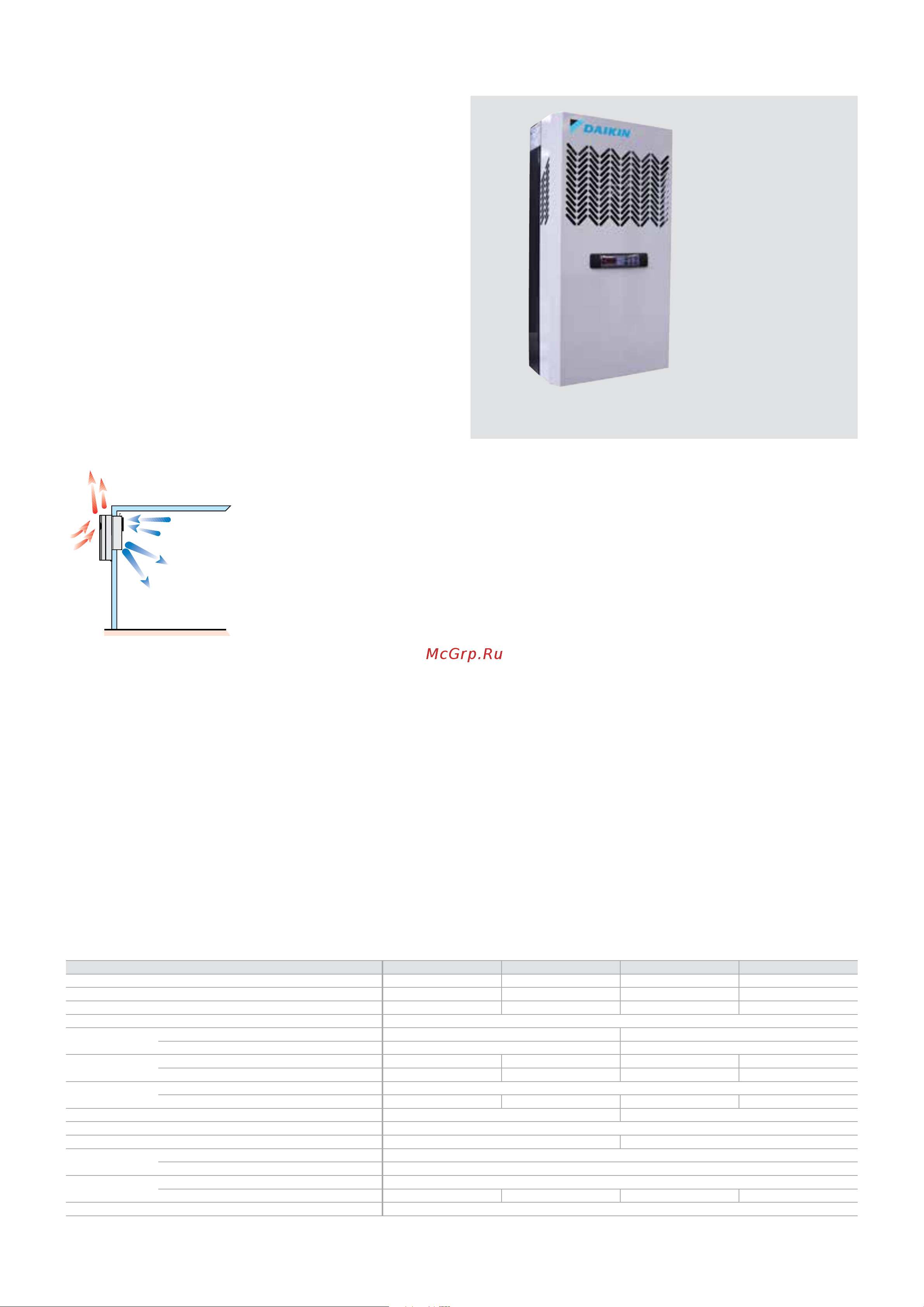

Wineblock - Monoblock units
for high temperature
refrigeration
Monoblock system suitable for through-wall installation
Accurate humidity and temperature control to guarantee the
quality of products (e.g. wines)
Integrated humidifier available depending on model to have one
unit which covers it all: perfect humidity & temperature control
Electronic controller managing both temperature and humidity of
the cold room
LMSWHD-AV3018/AV3118
Installation type
