5

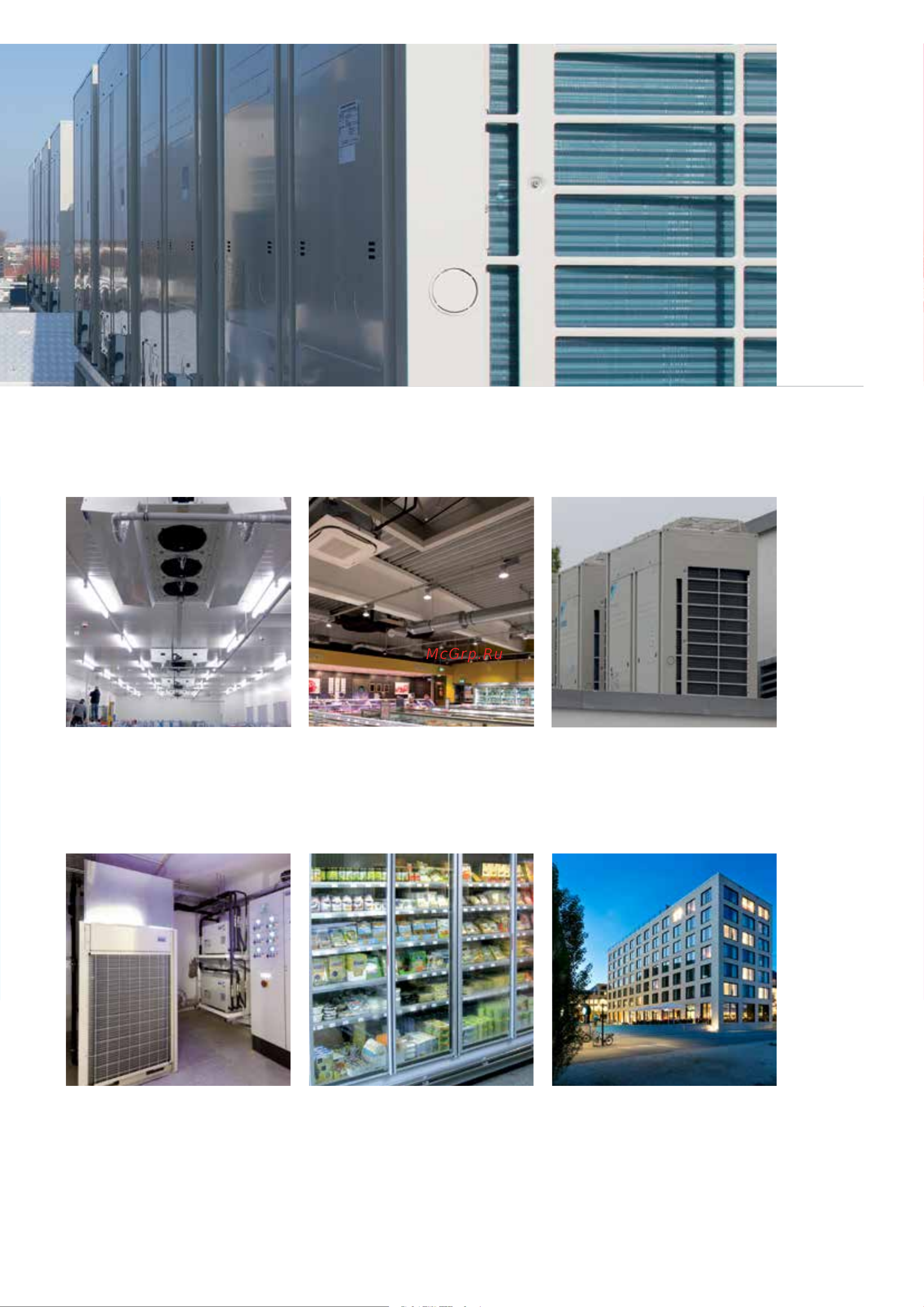

References
In a German supermarket Conveni-Pack
teams up with ZEAS to supply service counters,
fridges, an air curtain and indoor A/C units,
a cooling storage room and deep-freeze cabinets.
‘With Conveni-Pack, we have a complete and
totally reliable solution for all our heating and
air conditioning needs, as well as for refrigerating
all our fresh and frozen products.’
Food store, Austria
“We wanted a future-proof, energy efficient and
proven technology with high reliability.”
Bakery cooperative, Germany
“Freshness and healthy nutrition contribute to
patient recovery. The storage of easily perishable
goods plays a key role here. That’s why Municipal
Hospital opted for a special refrigeration
technology: ZEAS.”
Kiel Municipal Hospital, Germany
“An organic market should not just sell sustainable
food products but should also use green energy
and as little as possible. It was not just for reasons
of conscience and image that Bergfeld’s Biomarkt
in Bonn decided on ZEAS from Daikin.”
Bergfeld’s Biomarkt, Germany
“The flexible system optimally accommodates
different cooling temperatures for all refrigerating
units and can be controlled remotely. The system’s
near-silent operation guarantees that the noise
level is kept at a minimum for residents.“
Hotel 47°, Germany
