![Daikin SB.LBWWHD050AV3096 [42/56] Detailed technical drawings](/img/pdf.png)
Daikin SB.LBWWHD050AV3096 [42/56] Detailed technical drawings
![Daikin SB.LBWWHD050AV3096 [42/56] Detailed technical drawings](/views2/1801822/page42/bg2a.png)
42

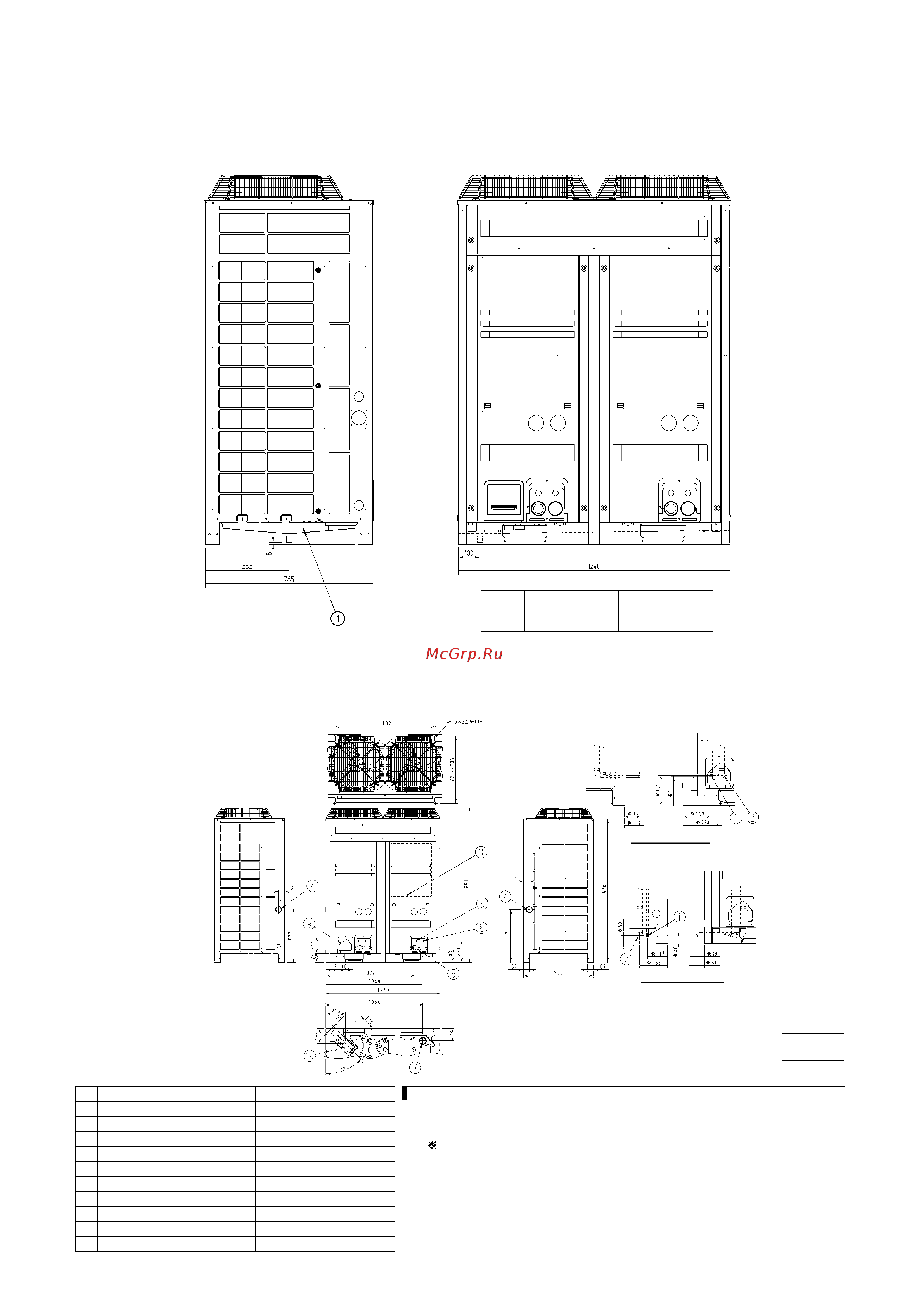

Detailed technical drawings
LREQ15-20BY1
LREQ15-20BY1
3TW27274-1
LREQ15-20BY1
Item RemarkPart name
KWC26B450Central drain pan kit1
3D076987
LREQ15,20BY1
No. Parts name Remarks
1 Liquid pipe connection port ø 12.7
2 Gas pipe connection port ø 34.9
3 Earth terminal Inside of electric component box (M8)
4 Power cord routing hole (side) ø 62
5 Power cord routing hole (front) ø 45
6 Power cord routing hole (front) ø 27
7 Power cord routing hole (bottom) ø 65.5
8 Wire routing hole (front) ø 27
9 Pipe routing hole (front)
10 Pipe routing hole (bottom)
NOTES
1. Detail for front side and detail for bottom side
indicate the dimensions after fixing the attached piping.
2. “
“ is a size in the state where accessory piping is connected.
MODEL
LREQ15, 20 BY1
(Foundation bolt holes)
Oblong Holes
(Pitch of foundation bolt holes)
(Knock-out hole)
(Knock-out hole)
(Knock-out hole)
(Knock-out hole)
Detail for front side
Detail for bottom side
(Pitch of foundation bolt holes)
(Knock-out hole)
