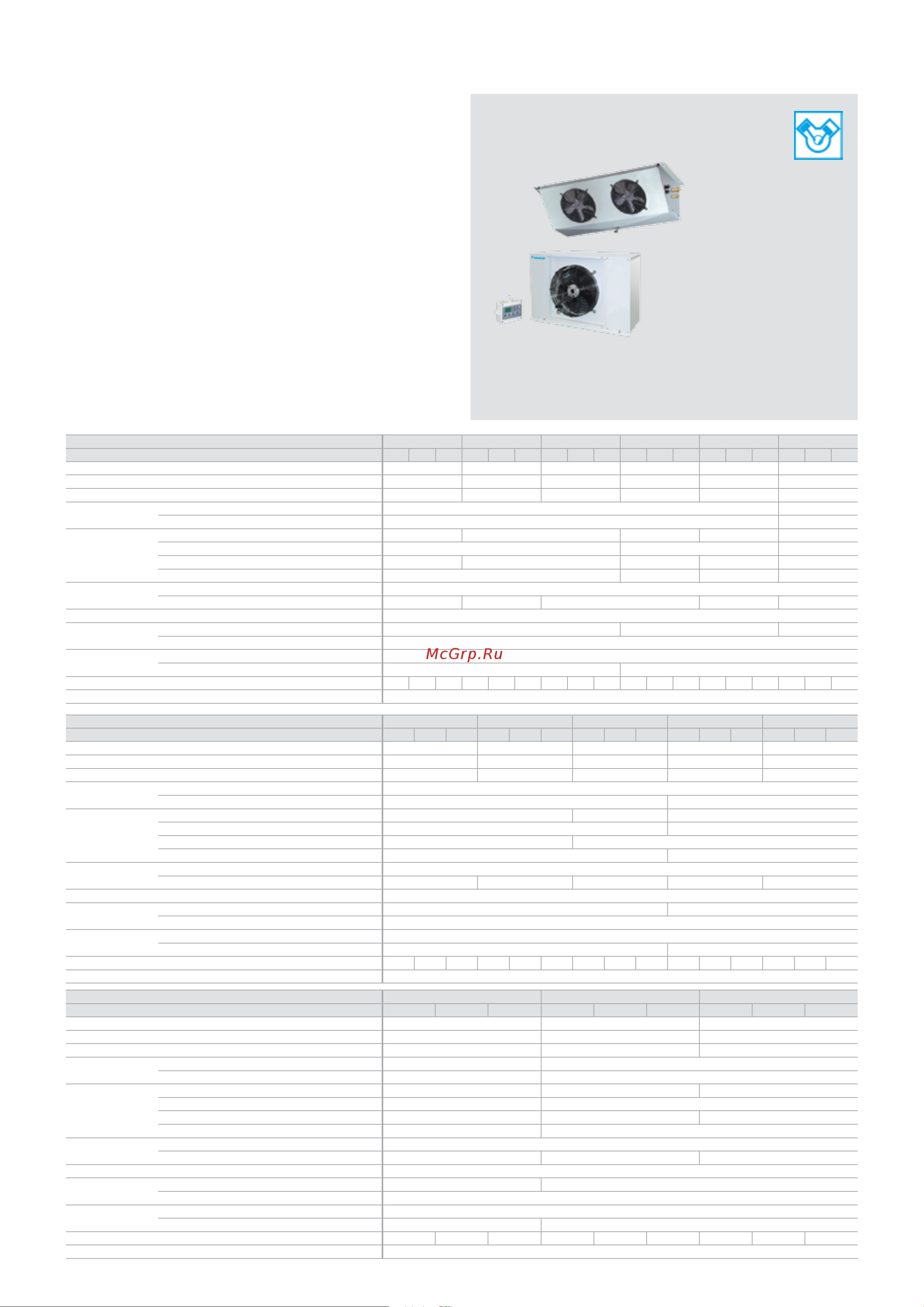

19
SB.LBTLN-AV/AW
Low Temperature Refrigeration SB.LBTLN-AV3/AW1 100 120 170 172 200 300
1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3
Refrigerating capacity
Low temperature
R-452A Nom kW 0.579 0.807 970 1.193 1.526 2.090
Recomm. Cold Room Volume
Low temperature
V 100 m³ 2.2 3.9 5.3 7.6 11.4 18.1
Power input Max. W 950 1,330 2,000 2,080 2,590 3,360
Dimensions
Condensing unit
HeightxWidthxDepth mm 640x690x860 740x760x960
Evaporator unit
HeightxWidthxDepth mm 360x690x545 360x1,440x545
Weight Condensing unit kg 50.0 52.0 63.0 65 85
Evaporator unit kg 9.0 16.0 24
Packed condensing unit kg 66.0 68.0 79.0 81.0 102.0
Packed evaporator unit kg 11.5 18.9 18.9 27.6
Compressor Type Hermetic Reciprocating
Piston displacement m³/h 3.03 4.54 5.99 8.3 12.9
Defrost Electric
Evaporator Air ow m³/h 730 1,360 2,060
Air throw m
6
Refrigerant Type/GWP R-452A/2,141.0
Charge
kg/TCO2Eq
0.715/1.531 1.280/2.740 1.500/3.212
Piping Length
m
2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10
Power supply Phase/Frequency/Voltage Hz/V 1~/50/230
Bi-block system
for low and medium
temperature refrigeration
Condensing unit for floor standing or roof mounted
installation
Condensing unit for floor standing or roof mounted installation
and ceiling mounted evaporator
Extremely fast to assemble thanks to quick connection joints
Reduced installation time and cost
Best surface-to-capacity ratio
SB.LBTLN-AV3/AW1 and SB.LBTMD-AV3/AW1
Medium Temperature Refrigeration SB.LBTMD-AV3 050 060 075 100 122
1 2 3 1 2 3 1 2 3 1 2 3 1 2 3
Refrigerating capacity
Medium temperature
R-134a Nom kW 0.952 1.112 1.388 1.768 1.992
Recomm. Cold Room Volume
Medium temperature
V 100 m³ 6.8 8.6 11.8 16.5 18.5
Power input Max. W 1,250 1,460 1,720 1,930 2,460
Dimensions
Condensing unit
HeightxWidthxDepth mm 640x690x860
Evaporator unit
HeightxWidthxDepth mm 360x690x545 360x990x545
Weight Condensing unit kg 41.0 44 62.0
Evaporator unit kg 9.0 16.0
Packed condensing unit kg 57.0 78
Packed evaporator unit kg 11.5 18.9
Compressor Type Hermetic Reciprocating
Piston displacement m³/h 3.8 4.52 5.69 6 8.36
Defrost Electric
Evaporator Air ow m³/h 730 1,360
Air throw m 6
Refrigerant Type/GWP R-134a/1,430
Charge
kg/TCO2Eq
0.715/1.022 1.280/1.830
Piping Length
m
2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10 2.5 5 10
Power supply Phase/Frequency/Voltage Hz/V 1~/50/230
Medium Temperature Refrigeration SB.LBTMD-AW1 120 150 200
1 2 3 1 2 3 1 2 3
Refrigerating capacity
Medium temperature
R-134a Nom kW 1.992 3.129 3.430
Recomm. Cold Room Volume
Medium temperature
V 100 m³ 18.5 35.7 40.3
Power input Max. W 2,380 3,220 3,530
Dimensions
Condensing unit
HeightxWidthxDepth mm 640x690x860 740x760x960
Evaporator unit
HeightxWidthxDepth mm 360x990x545 360x1,440x545
Weight Condensing unit kg 62 75 77
Evaporator unit kg 16 24
Packed condensing unit kg 78.0 92.0 94.0
Packed evaporator unit kg 18.9 27.6
Compressor Type Hermetic Reciprocating
Piston displacement m³/h 8.36 10.52 11.81
Defrost Electric
Evaporator Air ow m³/h 1,360 2,060
Air throw m 6
Refrigerant Type/GWP R-134a/1,430
Charge
kg/TCO2Eq
1.280/1.830 1.500/2.145
Piping Length
m
2.5 5 10 2.5 5 10 2.5 5 10
Power supply Phase/Frequency/Voltage Hz/V 3~/50/400
