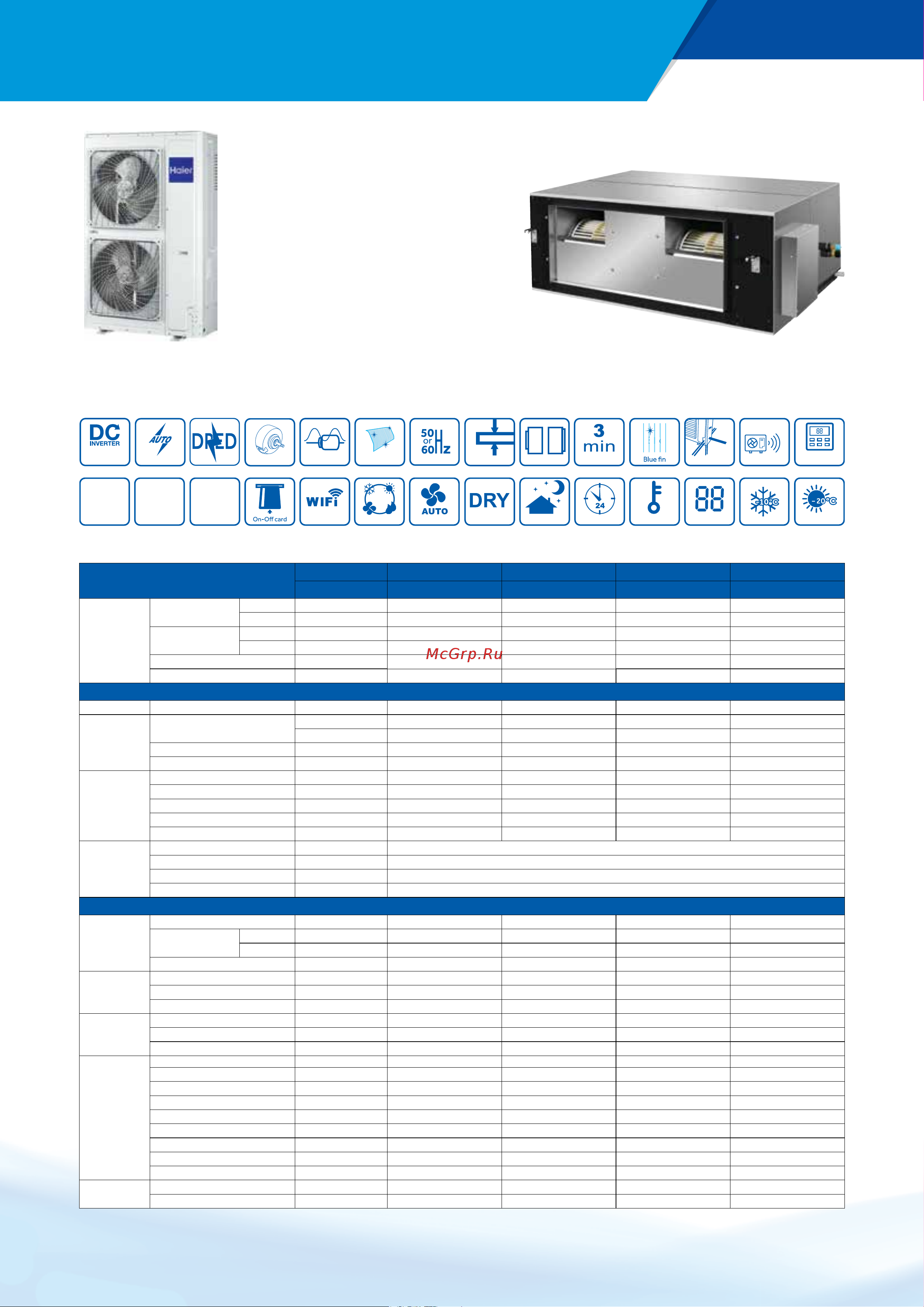

HIGH STATIC DUCTED SPECIFICATIONS
Model
Indoor unit ADH125H1ERG ADH140H1ERG ADH200H1ERG ADH250H1ERG
Outdoor unit 1UH125P1ERK 1UH140P1ERK 1UH200H1ERK 1UH250H1ERK
Nominal
performance
data
Rated capacity
Cooling
Capacity (min~max)
12.3 (3.5~15.0) 13.3 (3.5~15.0) 20.5 (6.2~23.5) 24.0 (7.2~26.5)
Heating
Capacity (min~max)
14.0 (4.0~18.0) 15.5 (4.0~19.0) 22.8 (7.2~24.8) 26.8 (8.2~28.8)
Rated power input
Cooling
Input (min~max)
3.7 (1.0~7.0) 4.15 (1.0~7.2) 6.1 (2.5~8.5) 7.47 (3.5~9.5)
Heating
Input (min~max)
3.8 (1.0~7.0) 4.29 (1.2~7.2) 6.0 (2.5~8.5) 7.18 (3.5~9.5)
EER 3.32 3.20 3.36 3.21
COP
3.68 3.61
3.80 3.73
Indoor Unit
Electrical Power Input Watt 550 600 800 920
Performance
Air fl ow (H/M/L/LL)
m3/h 3250/2750/2250/1750 3600/3100/2600/2100 4320/3780/3420/3060 5040/4500/3960/3600
l/s 905/765/625/490 1000/865/725/585 1200/1050/950/850 1400/1250/1100/1000
ESP pa 37~210 37~210 62~300 72~300
Sound pressure level (H/M/L) dB (A) 47/44/42/39 49/46/43/40 54/50/45 55/51/47
Installation
External dimensions (WxDxH) mm 1350x490x425 1350x490x425 1330x895x500 1330x895x500
Shipping dimensions (WxDxH) mm 1565x724x510 1565x724x510 1510x1037x568 1510x1037x568
Net/Shipping weight kg 61 / 72 61 / 72 96/125 96/125
Supply Air Flange mm 1046 x 306 1046 x 306 958 x 377 958 x 377
Return Air Flange mm 1163 x 353 1163 x 353 1118 x 347 1118 x 347
Controls
Wired Controller Optional YR~E17
Wired Controller (time-clock)
Optional
YR-E16a or YR-E16b
Wireless Controller Optional RE-02 & YR-HD
Wi-FI Optional KZW-W001
Outdoor Unit
Electrical
Parameters
Power supply
Ph/V/Hz
3/380-415/50 3/380-415/50 3/380~415/50 3/380~415/50
Rated Amps
Cooling
Amp
6.1 7.0 10.3 12
Heating
Amp
6.2 7.3 10 11.8
Maximum Amps
Amp
10.8 11 15.3 16.3
Performance
Air fl ow (H)
l/s
1805 1950 2890 2890
Sound power level
dB (A)
69 70 75 75
Sound pressure level
dB (A)
52 53 58 58
Installation
External dimensions (WxDxH)
mm
950 x 370 x 1350 950 x 370 x 1350 1050x413x1636 1050x413x1636
Shipping dimensions (WxDxH)
mm
1090 x 480 x 1500 1090 x 480 x 1500 1150x510x1795 1150x510x1795
Net/Shipping weight
kg
108 / 121 108 / 121 160/175 160/175
Refrigeration
Compressor type twin rotary twin rotary Twin rotary Twin rotary
Refrigerant type R410A R410A R410A R410A
Refrigerant liquid pipe
mm
9.52 9.52 12.7 12.7 (Brazed)
Refrigerant gas pipe
mm
15.88 19.05 19.05 22.22 (Brazed)
Max pipe length
m
75 75 75 75
Max Height diff erence
m
30 30 30 30
Pre Charge of refrigerant
kg
3.7 3.7 6.35 6.35
Pre~charged line length
m
30 30 30 30
Additional gas charge
g/m
45 45 45 45
Working
Temperature
Cooling (Min~Max)
°C
-15 to 50 -15 to 50 -10 to 46 -10 to 46
Heating (Min~Max)
°C
-20 to 24 -20 to 24 -20 to 24 -20 to 24
Nominal condition: as per AS/NZS3823.2
Indoor temperature (cooling): 27°C DB/19°C WB, indoor temperature (heating): 20°C DB
Outdoor temperature (cooling): 35°C DB/24°C WB, outdoor temperature (heating): 7°C DB/6°C WB
Outdoor Unit
1U200H1ERK
1U250H1ERK
Indoor Unit
ADH200H1ERG
ADH250H1ERG
180° sine wave
DC motor
Sleep mode
Evaporator
self-cleanin g
DRY function
Auto mode
Double 8 display
Auto restart
24 hours time r
Child lock
-20°C heating
Self-diagnosis
function
Built-in valve
Group
control
Central
control
BMS
WI-Fi Control
Compatible
Blue
B
u
e
Adjustable ESP
3 minutes
protection
-10°C cooling
- 13 -
