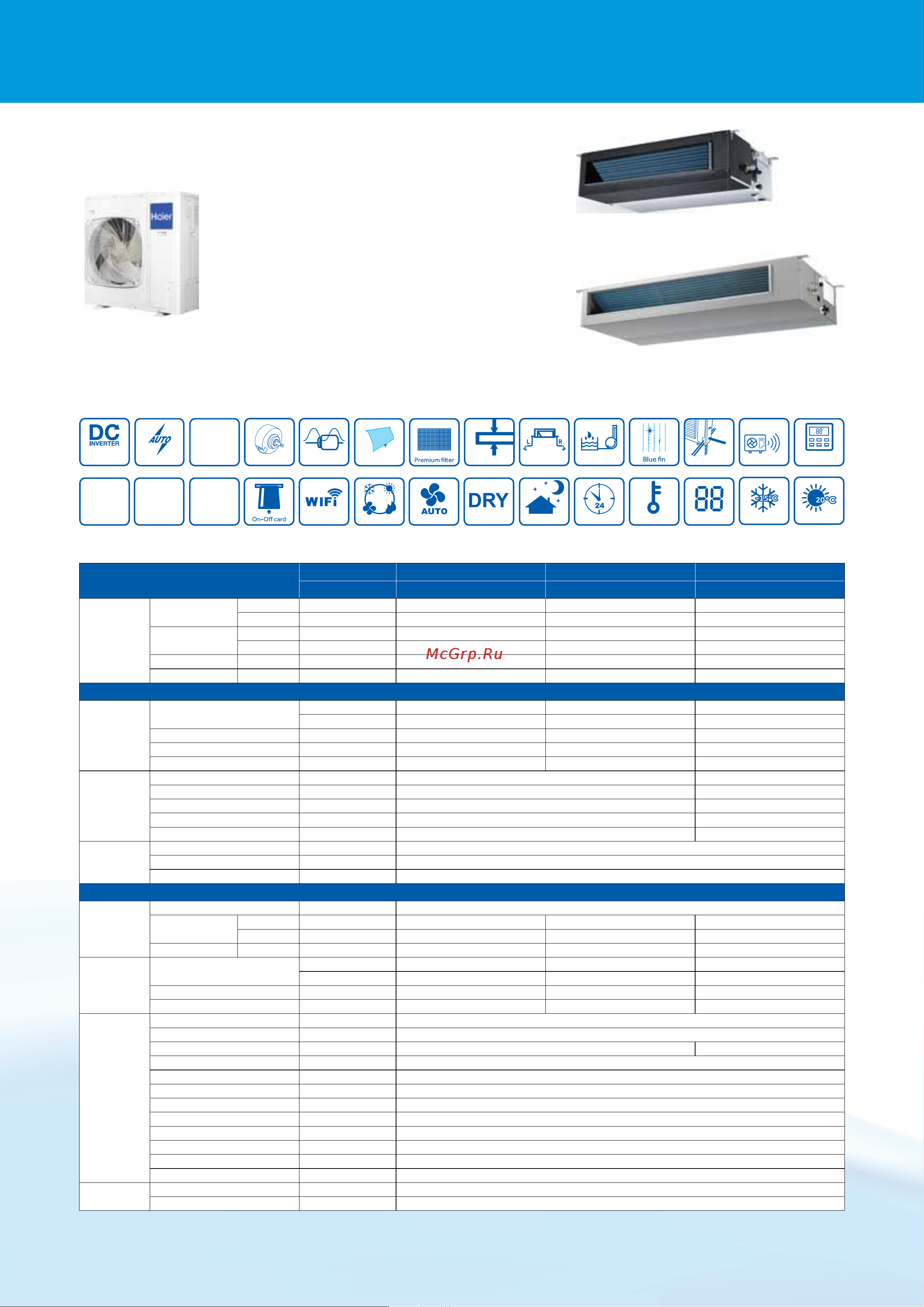

Haier ABH140K5ERG [16/28] Low profile ducted specifications
![Haier ABH140K5ERG [16/28] Low profile ducted specifications](/views2/1812951/page16/bg10.png)
Model
Indoor unit
ADH071M3ERG ADH090M1ERG ADH105M1ERG
Outoor unit
1UH071N1ERG 1UH090N1ERG 1UH105N1ERG
Rated
performance
data
Capacity
Cooling kW Nom
(min~max) 7.1 (2.0~9.0) 8.5 (2.5~10) 10.0 (2.5~11)
Heating kW Nom
(min~max) 8.0 (2.0~10.0) 9.5 (2.5~11) 10.4 (2.5~12)
Power input
Cooling kW Nom
(min~max) 2.03 (0.4~4.0) 2.50 (0.5~4.4) 2.93 (0.5~4.5)
Heating kW Nom
(min~max) 2.0 (0.4~4.0) 2.50 (0.5~4.4) 2.97 (0.5~4.5)
EER Cooling kW/kW 3.5 3.4 3.4
COP Heating kW/kW 4.0 3.8 3.5
Indoor Unit
Performance
Air fl ow (H/M/L)
m3/h 1450/1200/950/700 1300/900/700 2000/1740/1380/1280
L/S 402/333/263/194 360/250/190 555/480/380/355
External Static Pressure pa 25-150 10/30/50/70 30 to 120
Sound power level (H/M/L) dB(A) 58 60 55
Sound pressure level (H/M/L) dB(A) 38/35/32/29 40/37/34 32/28/25/23
Installation
External dimensions (WxDxH) mm 957x655x250 1500x700x250
Shipping dimensions (WxDxH) mm 1170x860x340 1710x865x320
Net/Shipping weight kg 31.2/36.8 49/61
Supply air Flange mm 800 x 145 1286 x 168
Return Air Flange mm 850 x 235 1435 x 235
Controller
Wired Controller Optional YR-E17 / YR-E16A / YR-E16B
Wireless Controller Optional RE-02/YR-HD
Wi-Fi Optional KZW-W001
Outdoor Unit
Electrical
Power supply Ph/V/Hz 1/220~240/50
Rated Current
Cooling Amps 8.8 11.1 13.6
Heating Amps 9.2 11.1 12.7
Maximum Current Amps 17.5 19.2 21
Performance
Air fl ow (H)
m3/h 3200 3500 4000
L/S 890 975 1115
Sound power level dB(A) 64 66 68
Sound pressure level dB(A) 47 50 52
Installation
External dimensions (WxDxH) mm 950x370x965
Shipping dimensions (WxDxH) mm 1050x450x1095
Net/Shipping weight kg 80/92 82/94
Compressor type Twin rotary
Refrigerant type R410A
Refrigerant liquid pipe mm 9.52
Refrigerant gas pipe mm 15.88
Max pipe length m 50
Max height between I.U.&O.U m 30
Refrigerant pre-charged kg 2.5
Pre-charged line length m 20
Additional gas charge g/m 45
Working
temp.
Cooling (Min-Max) °C -15 to +50
Heating (Min-Max) °C -20 to +24
Indoor Unit
ADH105M1ERG
180° sine wave DC motor
Sleep mode
Evaporator
self-cleaning
DRY function
Auto mode
Double 8 display
Drain
water pump
Auto restart
24 hours timer
Child lock
-20°C heating
-15°C cooling
Self-diagnosis
function
Built-in valve
Central
control
BMS
WI-Fi Control
Compatible
B
u
e
Two-way drainAdjustable ESP
Low Noise
Auto Fan
Group
control
Blue
DRED
Outdoor Unit
1UH071N1ERG
1UH090N1ERG
1UH105N1ERG
Indoor Unit
ADH071M3ERG
ADH090M1ERG
Nominal condition: as per AS/NZS3823.2
Indoor temperature (cooling): 27°C DB/19°C WB, indoor temperature (heating): 20°C DB
Outdoor temperature (cooling): 35°C DB/24°C WB, outdoor temperature (heating): 7°C DB/6°C WB
LOW PROFILE DUCTED SPECIFICATIONS
- 16 -
