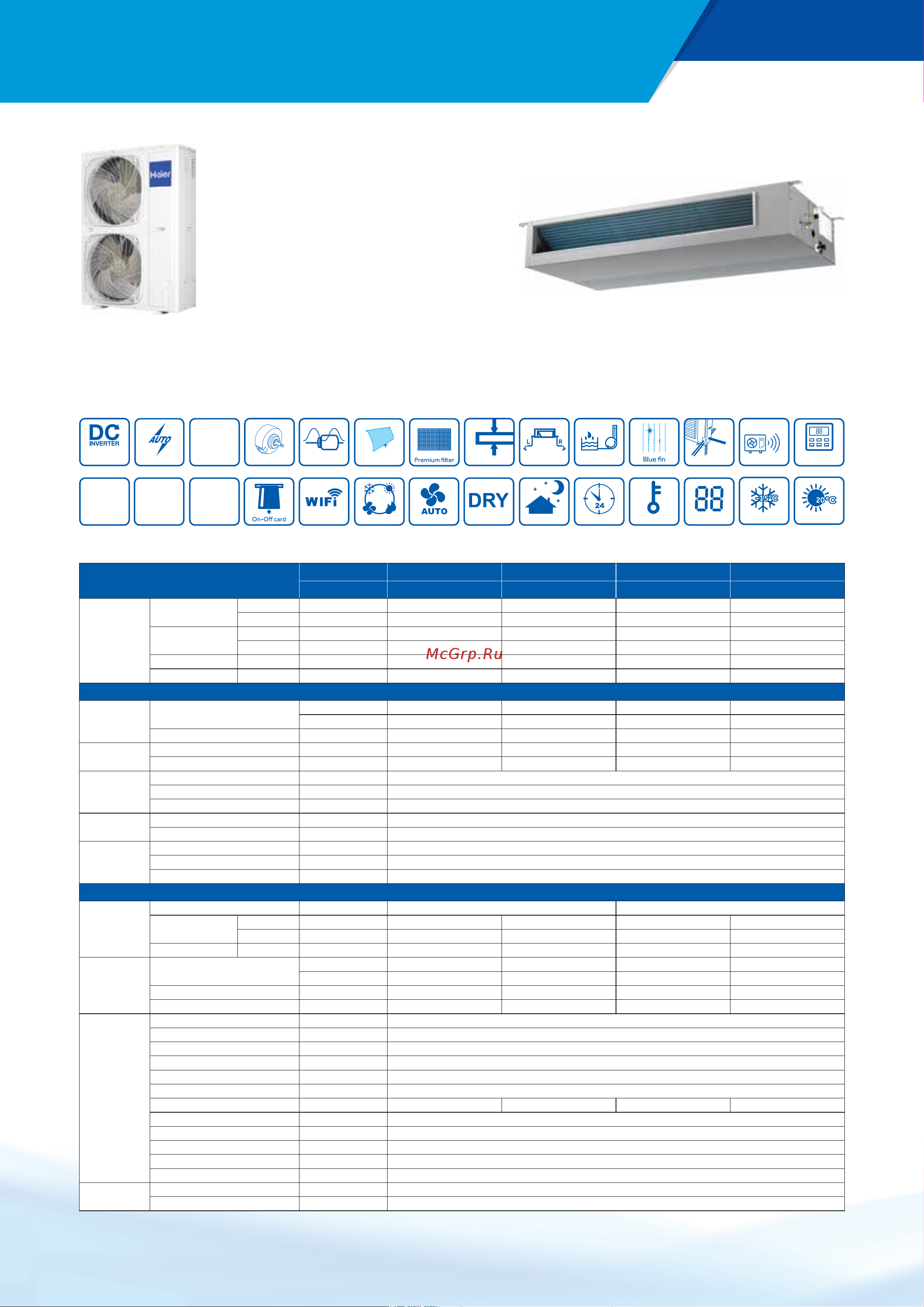

Haier ABH140K5ERG [17/28] Low profile ducted specifications
![Haier ABH140K5ERG [17/28] Low profile ducted specifications](/views2/1812951/page17/bg11.png)
Outdoor Unit
1U125P1ERG
1U140P1ERG
1U125P1ERK
1U140P1ERK
Model
Indoor unit
ADH125M1ERG ADH140M1ERG ADH125M1ERG ADH140M1ERG
Outdoor unit
1UH125P1ERG 1UH140P1ERG 1UH125P1ERK 1UH140P1ERK
Rated
Performance
data
Capacity
Cooling kW Nom
(min~max) 12.5 (3.5~15.0) 13.4 (3.5~16.0) 12.5 (3.5~15.0) 13.4 (3.5~15.5)
Heating kW Nom
(min~max) 13.7 (4.0~18.0) 15.0 (4.0~19.0) 13.7 (4.0~18.0) 15.0 (4.0~19.0)
Power input
Cooling kW Nom
(min~max) 3.67 (1.0~6.5) 4.05 (1.0~6.5) 3.67 (1.0~6.5) 4.05 (1.0~6.5)
Heating kW Nom
(min~max) 3.91 (1.0~6.5) 4.29 (1.2~6.5) 3.91 (1.0~6.5) 4.29 (1.2~6.5)
EER Cooling kW/kW 3.4 3.3 3.4 3.3
COP Heating kW/kW 3.5 3.5 3.5 3.5
Indoor Unit
Performance
Air fl ow (H/M/L/LL)
m3/h 2250/1960/1680/1500 2500/2160/1780/1500 2250/1960/1680/1500 2500/2160/1780/1500
L/S 625/540/465/415 690/600/490/415 625/540/465/415 690/600/490/415
External Static Pressure pa 30 to 120 30 to 120 30 to 120 30 to 120
Sound
Sound power level dB(A) 62 64 62 64
Sound pressure level
(H/M/L) dB(A) 39/36/33/31 41/36/33/31 39/36/33/31 41/36/33/31
Installation
External dimensions
(WxDxH) mm 1500x700x250
Shipping dimensions
(WxDxH) mm 1710x865x320
Net/Shipping weight kg 52/63
Flange
Connection
Supply Air mm 1286 x 168
Return Air mm 1435 x 235
Controller
Wired Controller Optional YR-E17 / YR-E16A / YR-E16B
Wireless Controller Optional RE-02/YR-HD
Wi-Fi Optional KZW-W001
Outdoor Unit
Electrical
Power supply Ph/V/Hz 1/220~240/50/60 3/380~415/50/60
Rated Current
Cooling Amps 17.0 18.0 6.1 7.0
Heating Amps 17.5 19.0 6.5 7.3
Maximum Current Amps 30.0 32 10.8 11.0
Performance
Air fl ow (H)
m3/h 6500 7000 6500 7000
L/S 1810 1945 1810 1945
Sound power level dB(A) 69 70 69 70
Sound pressure level dB(A) 52 53 52 53
Installation
External dimensions
(WxDxH) mm 950x370x1350
Shipping dimensions
(WxDxH) mm 1090x480x1500
Net/Shipping weight kg 108/121
Compressor type Twin rotary
Refrigerant type R410A
Refrigerant liquid pipe mm 9.52
Refrigerant gas pipe mm 15.88 19.05 15.88 19.05
Max pipe length m 75
Max height between I.U.&O.U m 30
Refrigerant pre-charged kg 3.7
Pre-charged line length m 30
Additional gas charge g/m 45
Working
temp.
Cooling (Min-Max) °C -15 to +50
Heating (Min-Max) °C -20 to +24
Indoor Unit
ADH125M1ERG
ADH140M1ERG
180° sine wave DC motor
Sleep mode
Evaporator
self-cleaning
DRY function
Auto mode
Double 8 display
Drain
water pump
Auto restart
24 hours timer
Child lock
-20°C heating
-15°C cooling
Self-diagnosis
function
Built-in valve
Central
control
BMS
WI-Fi Control
Compatible
B
u
e
Two-way drainAdjustable ESP
Low Noise
Auto Fan
Group
control
Blue
DRED
Nominal condition: as per AS/NZS3823.2
Indoor temperature (cooling): 27°C DB/19°C WB, indoor temperature (heating): 20°C DB
Outdoor temperature (cooling): 35°C DB/24°C WB, outdoor temperature (heating): 7°C DB/6°C WB
LOW PROFILE DUCTED SPECIFICATIONS
- 17 -
