YR-HBS01
Model
Indoor unit ABH125K5ERG ABH125K5ERG
Outdoor unit 1UH125P1ERG 1UH125P1ERK
Rated
performance
data
Nominal capacity
Cooling kW nom (min~max) 12.0 (3.5~14.0) 12.0 (3.5~14.0)
Heating kW nom (min~max) 13.0 (4.0~17) 13.0 (4.0~17)
Rated power input
Cooling kW nom (min~max) 3.83 (1.0-6.0) 3.83 (1.0-6.0)
Heating kW nom (min~max) 4.05 (1.0-6.0) 4.05 (1.0-6.0)
EER WxW 3.13 3.13
COP WxW 3.21 3.21
Star Rating (Cooling/Heating) 1.5 / 1.5 1.5 / 2.0
Indoor Unit
Performance
Air fl ow (H/M/L)
m3/h 1950/1600/1440/1200 1950/1600/1440/1200
L/S 540/440/400/330 540/440/400/330
Sound power level (H/M/L) dB(A) 64 64
Sound pressure level (H/M/L) dB(A) 47/44/38/34 47/44/38/34
Installation
External dimensions (W/D/H) mm 840/840/288
Shipping dimensions (W/D/H) mm 990/990/380
Weight Net/Shipping kg 32/38
Wireless Controller Standard YR-HBS-01
Wired Controller Optional YR-E17 / YR-E16A / YR-E16B
Wi-Fi Optional KZW-W001
Panel
Panel Model
PB-950KB (standard panel)
PB-950MB (Movement sensor panel)
External dimensions (WxDxH) mm 950x950x50
Shipping dimensions (WxDxH) mm 1000x1000x110
Weight Net/Shipping kg 6.5/9
Outdoor Unit
Electrical
Power supply Ph/V/Hz 1/220-240 / 50 3/380-400/50
Rated Current
Cooling Amps 17.0 6.1
Heating Amps 17.2 6.2
Maximum Current Amps 30.0 10.8
Performance
Air fl ow (H)
m3xh 6500
L/S 1805
Sound power level dB(A) 69
Sound pressure level dB(A) 52
Installation
External dimensions (WxDXH) mm 950x370x1350
Shipping dimensions (WxDXH) mm 1090x480x1500
Weight Net/Shipping kg 105/118 108/121
Compressor type Rotary
Refrigerant type R410A
Refrigerant liquid pipe mm 9.52
Refrigerant gas pipe mm 15.88
Max pipe length m 75
Max drop between I.U.&O.U m 30
Refrigerant pre- charged kg 3.7
Pre-charged line length m 30
Additional gas charge g/m 45
Working
temp.
Cooling (Min-Max) °C -15 to +50
Heating (Min-Max) °C -20 to +24
180° sine wave
DC motor
Sleep mode
DRY function
Auto mode Auto-swing
Double 8 display
4 fan settings
Auto restart
24 hours time r
Child lock
Branch outle t
-20°C heating-15°C cooling
Built-in valve
Group
control
Central
control
BMS
WI-Fi Control
Compatible
Blue
B
u
e
4 Way Independent
Airflow
Drain Water Pump
Nominal condition: as per AS/NZS3823.2
Indoor temperature (cooling): 27°C DB/19°C WB, indoor temperature (heating): 20°C DB
Outdoor temperature (cooling): 35°C DB/24°C WB, outdoor temperature (heating): 7°C DB/6°C WB

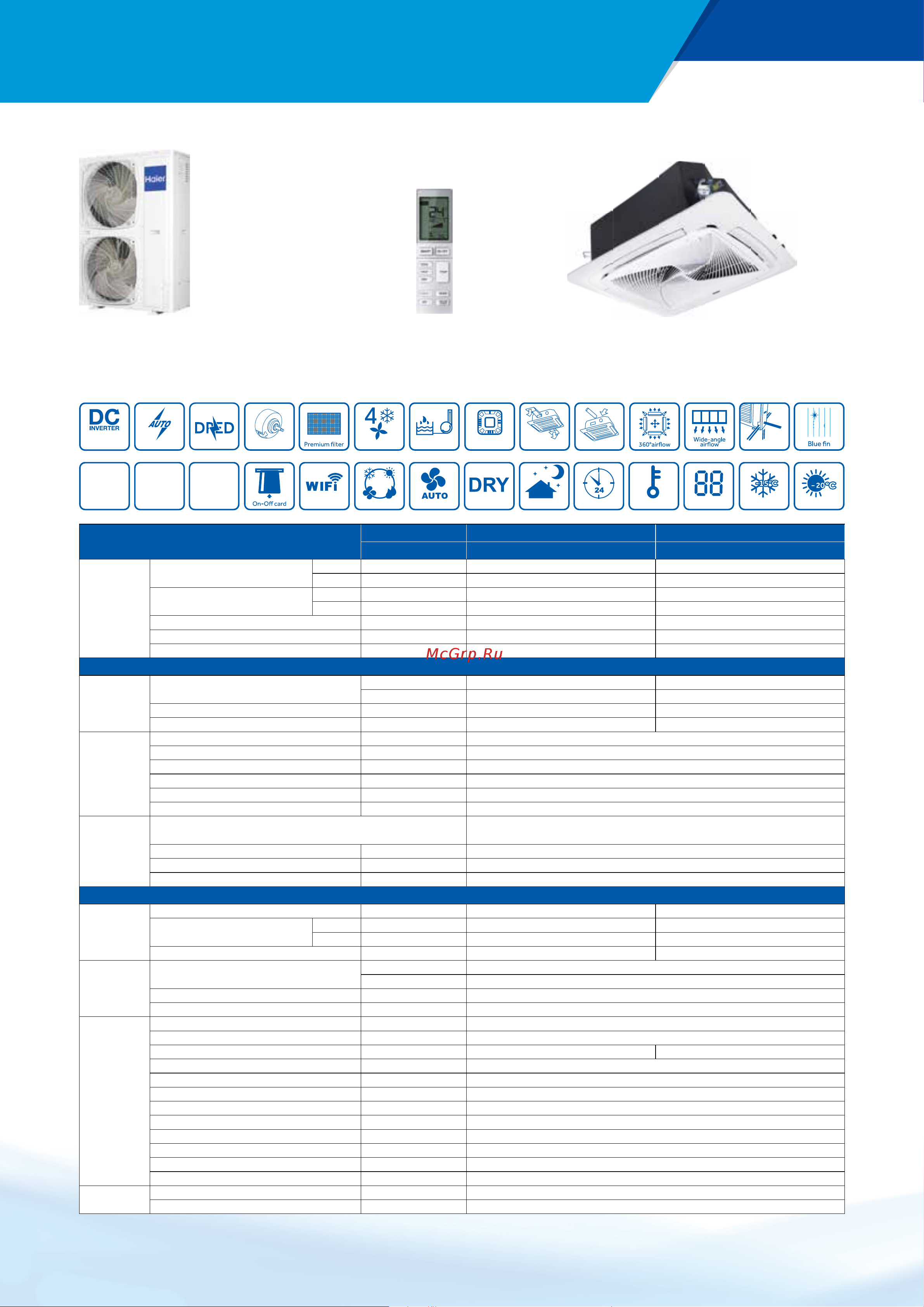

CASSETTE SPECIFICATIONS
Outdoor Unit
1U125P1ERG
1U125P1ERK
- 21 -
