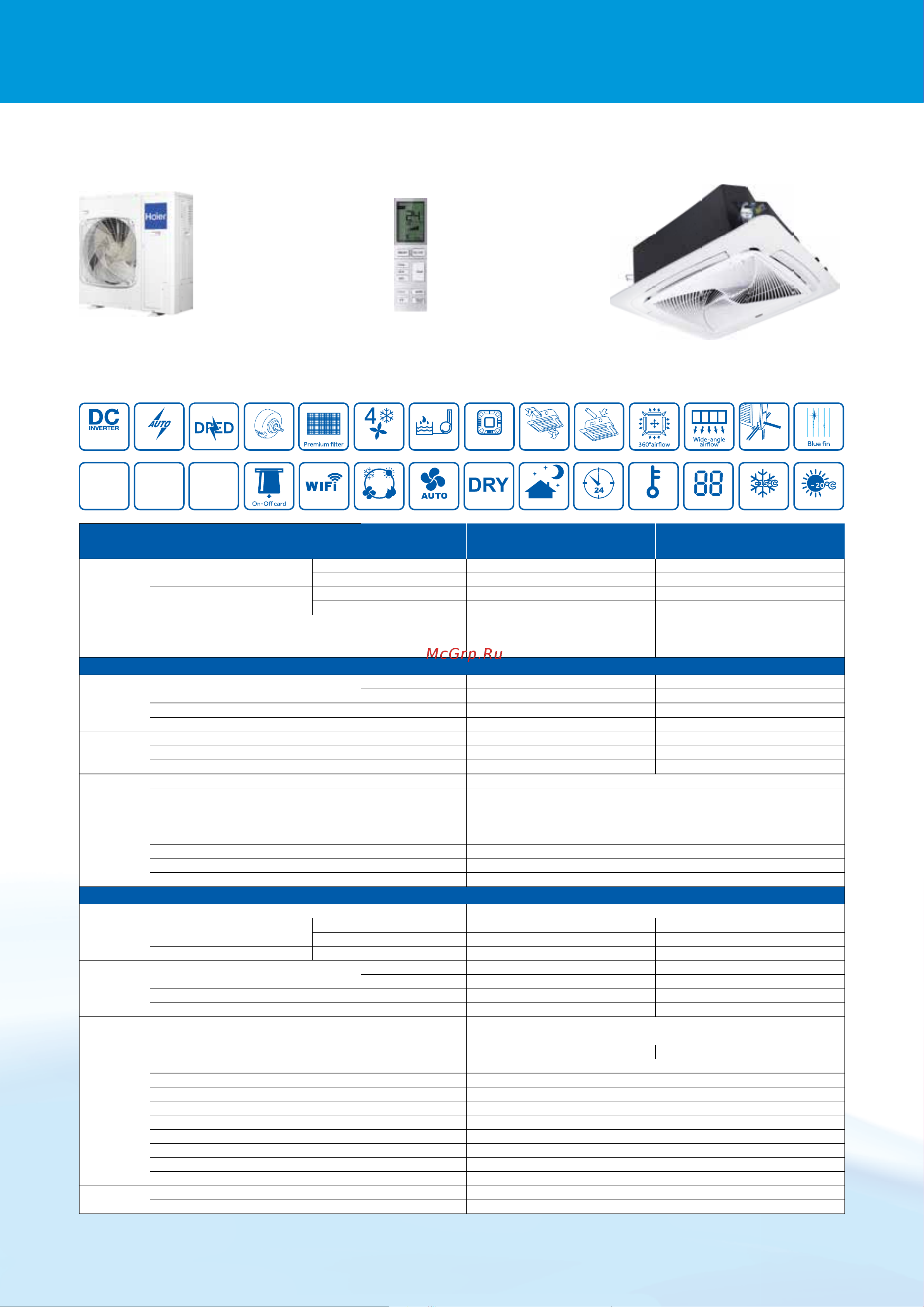

Haier ABH140K5ERG [20/28] Cassette specifications
![Haier ABH140K5ERG [20/28] Cassette specifications](/views2/1812951/page20/bg14.png)
YR-HBS01
Model
Indoor unit ABH071H5ERG ABH105K5ERG
Outdoor unit 1UH071N1ERG 1UH105N1ERG
Rated
performance
data
Nominal capacity
Cooling kW nom (min~max) 7.1 (2.0~8.0) 10.0 (2.5~11)
Heating kW nom (min~max) 7.8 (2.0~9.0) 10.6 (2.5~11.3)
Rated power input
Cooling kW nom (min~max) 2.08 (0.4~4.0) 3.19 (0.5~4.0)
Heating kW nom (min~max) 2.10 (0.4~4.0) 3.20 (0.5~4.0)
EER W/W 3.41 3.13
COP W/W 3.71 3.31
Star Rating (Cooling/Heating) 2.5 / 3.0 1.5 / 2.0
Indoor Unit
Performance
Air fl ow (H/M/L)
m3/h 1360/1260/1070/820 1680/1530/1320/1190
L/S 378/350/297/228 467/425/367/331
Sound power level (H/M/L) dB(A) 62 62
Sound pressure level (H/M/L) dB(A) 35/33/29/26 45/42/38/34
Installation
External dimensions (W/D/H) mm 840x840x246 840x840x288
Shipping dimensions (W/D/H) mm 990x990x310 990x990x380
Weight Net/Shipping kg 31 / 36 32 / 38
Controller
Wireless Controller Standard YR-HBS-01
Wired Controller Optional YR-E17 / YR-E16A / YR-E16B
Wi-Fi Optional KZW-W001
Panel
Panel Model
PB-950KB (standard panel)
PB-950MB (Movement sensor panel)
External dimensions(W/D/H) mm 950x950x50
Shipping dimensions(W/D/H) mm 1000x1000x110
Weight Net/Shipping kg 6.5/9
Outdoor Unit
Electrical
Power supply Ph/V/Hz 1/220-240/50
Rated Current
Cooling Amps 9.1 13.6
Heating Amps 9.1 13.6
Maximum Current Amps 17.5 20
Performance
Air fl ow (H)
m3/h 3200 4000
L/S 885 1110
Sound power level dB(A) 64 68
Sound pressure level dB(A) 47 52
Installation
External dimensions (WxDxH) mm 950x370x965
Shipping dimensions (WxDxH) mm 1050x480x1130
Weight Net/Shipping kg 80/92 82/94
Compressor type Rotary
Refrigerant type R410A
Refrigerant liquid pipe mm 9.52 (3/8)
Refrigerant gas pipe mm 15.88 (5/8)
Max pipe length m 50
Max drop between I.U.&O.U m 30
refrigerant pre- charged kg 2.5
Pre-charge line length m 20
Additional gas charge g/m 45
Working
temp.
Cooling(Min-Max)
°C
-15 to +50
Heating(Min-Max)
°C
-20 to +24
180° sine wave
DC motor
Sleep mode
DRY function
Auto mode Auto-swing
Double 8 display
4 fan settings
Auto restart
24 hours time r
Child lock
Branch outle t
-20°C heating-15°C cooling
Built-in valve
Group
control
Central
control
BMS
WI-Fi Control
Compatible
Blue
B
u
e
4 Way Independent
Airflow
Drain Water Pump
Nominal condition: as per AS/NZS3823.2
Indoor temperature (cooling): 27°C DB/19°C WB, indoor temperature (heating): 20°C DB
Outdoor temperature (cooling): 35°C DB/24°C WB, outdoor temperature (heating): 7°C DB/6°C WB
CASSETTE SPECIFICATIONS
Outdoor Unit
1UH071N1ERG
1UH105N1ERG
- 20 -
