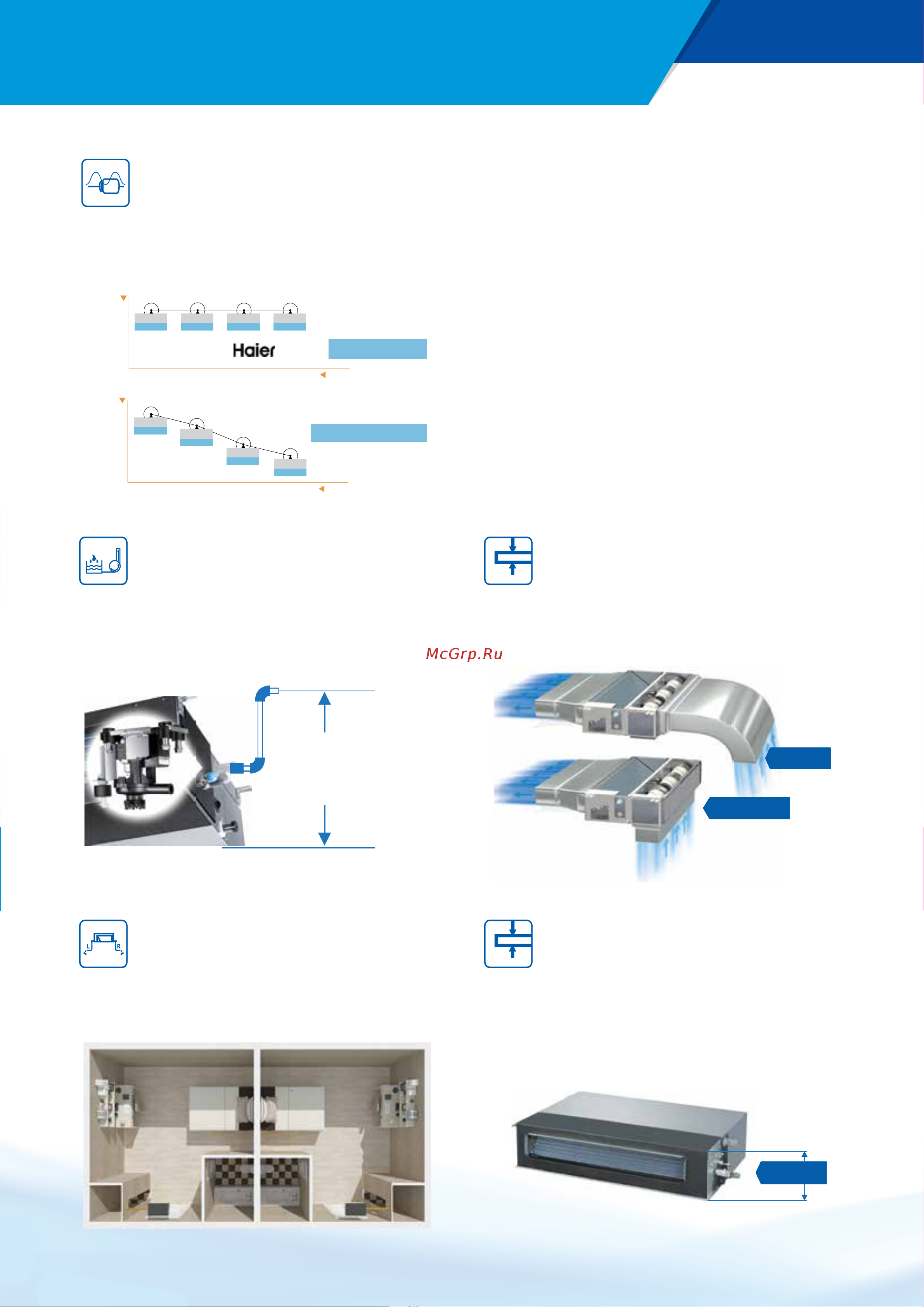

Bottom return
Rear return
250mm
Super slim
Ultra slim design of 250mm. Designed to fi t into
tight spaces where a normal ducted system is
not suitable.
Max.
750mm
High lift drain pump
Manufactured with high quality inbuilt
condensate pump that has the capability of
water lift up to 750mm to allow for a fl exible installation
Left or right drain outlet
In addition to the pump drain outlet, there is also
two gravity drain connections provided on the
left and on the right.
Return air choices
Clever design allows the rear return air to be
easily converted to bottom return air. The
supplied air fi lter can be relocated to the bottom.
Air Flow
2500
2000
50pa 70pa 100pa 120pa
ESP
1500
2500
100%
m/h³ 2500
100%
m/h³ 2500
100%
m/h³2500
100%
m/h³
100% airflow at 120pa
Air Flow
2500
2000
50pa 70pa 100pa 120pa
ESP
1500
100%
2500
m/h³
90%
2250 m/h³
76%
1900 m/h³
68%
1700 m/h³
Only 68% airflow at 120pa
Competition
Airflow comparison between Haier and competitor
Consistent airfl ow
The indoor units can contain up to 3 fans to provide consistent
airfl ow for diff erent ductwork installations. Haier testing has
proven no loss in airfl ow at increased static pressure .installations.
