Panasonic WH-MXF12D3E8 [107/118] To remove bottle complete
![Panasonic WH-MXF12D3E8 [107/118] To remove bottle complete](/views2/1832911/page107/bg6b.png)
107

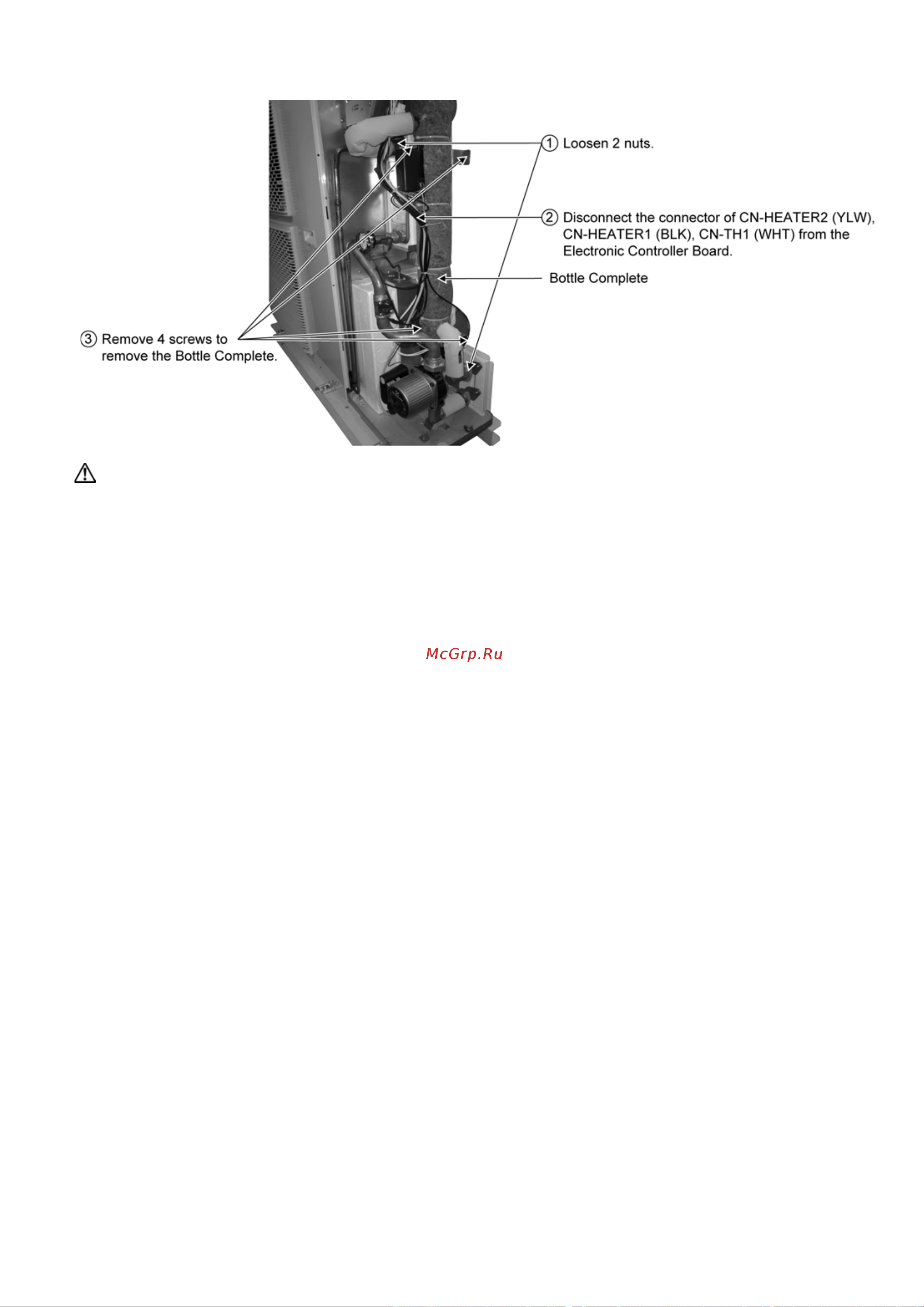

17.10 To Remove Bottle Complete
When reinstall the water pipe, use grease or water at the joining.
