Panasonic WH-MXF12D3E8 [14/118] Setting up the special functions
![Panasonic WH-MXF12D3E8 [14/118] Setting up the special functions](/views2/1832911/page14/bge.png)
14

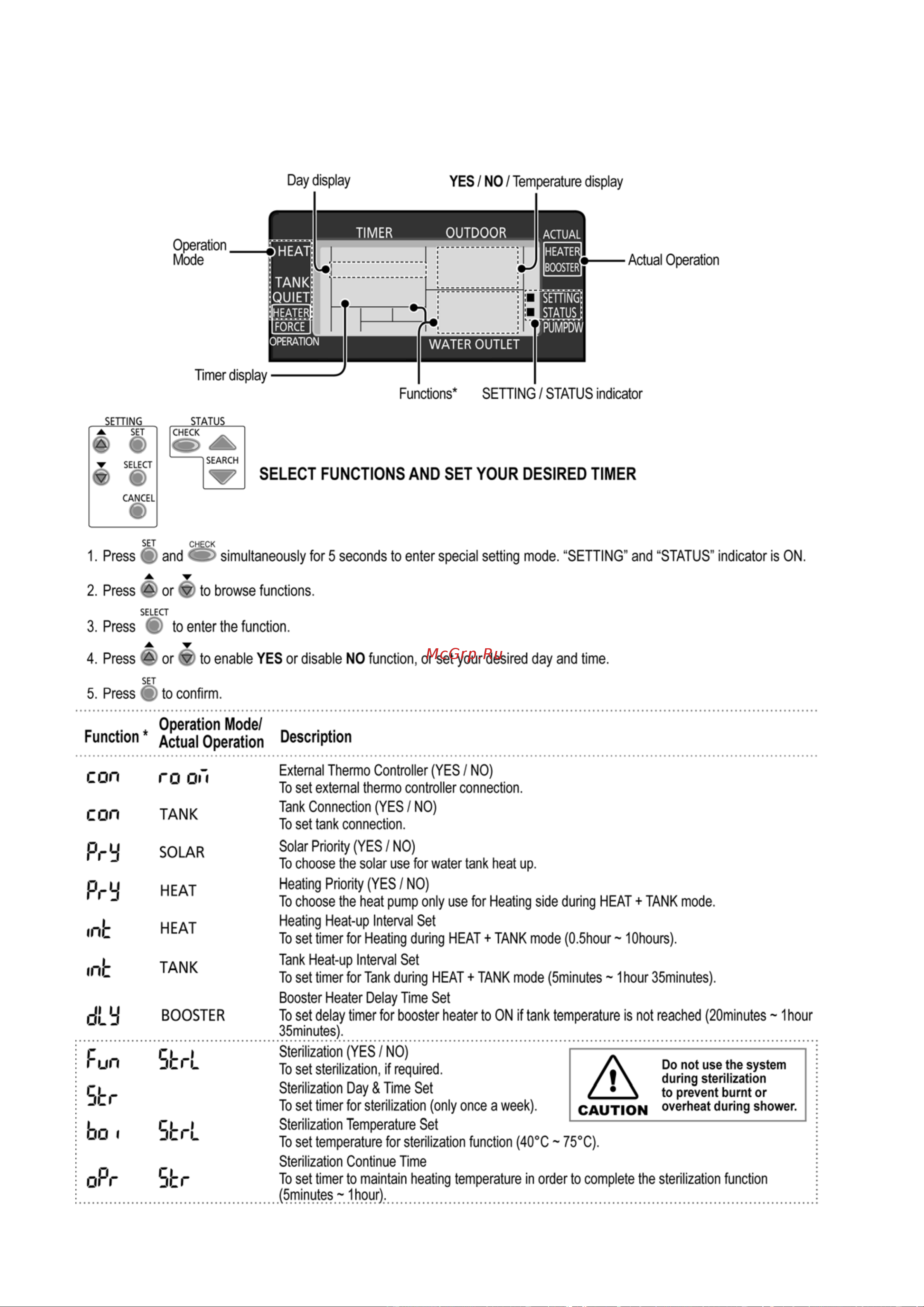

4.1.3 Setting Up The Special Functions
• After initial installation, you can manually adjust the settings. The initial setting remains active until the user changes it.
• The remote control can be used for multiple installations. Some functions may not be applicable to your unit.
• Ensure the operation LED is in OFF condition before setting.
