Panasonic WH-MXF12D3E8 [85/118] 6 compressor rotation failure f14

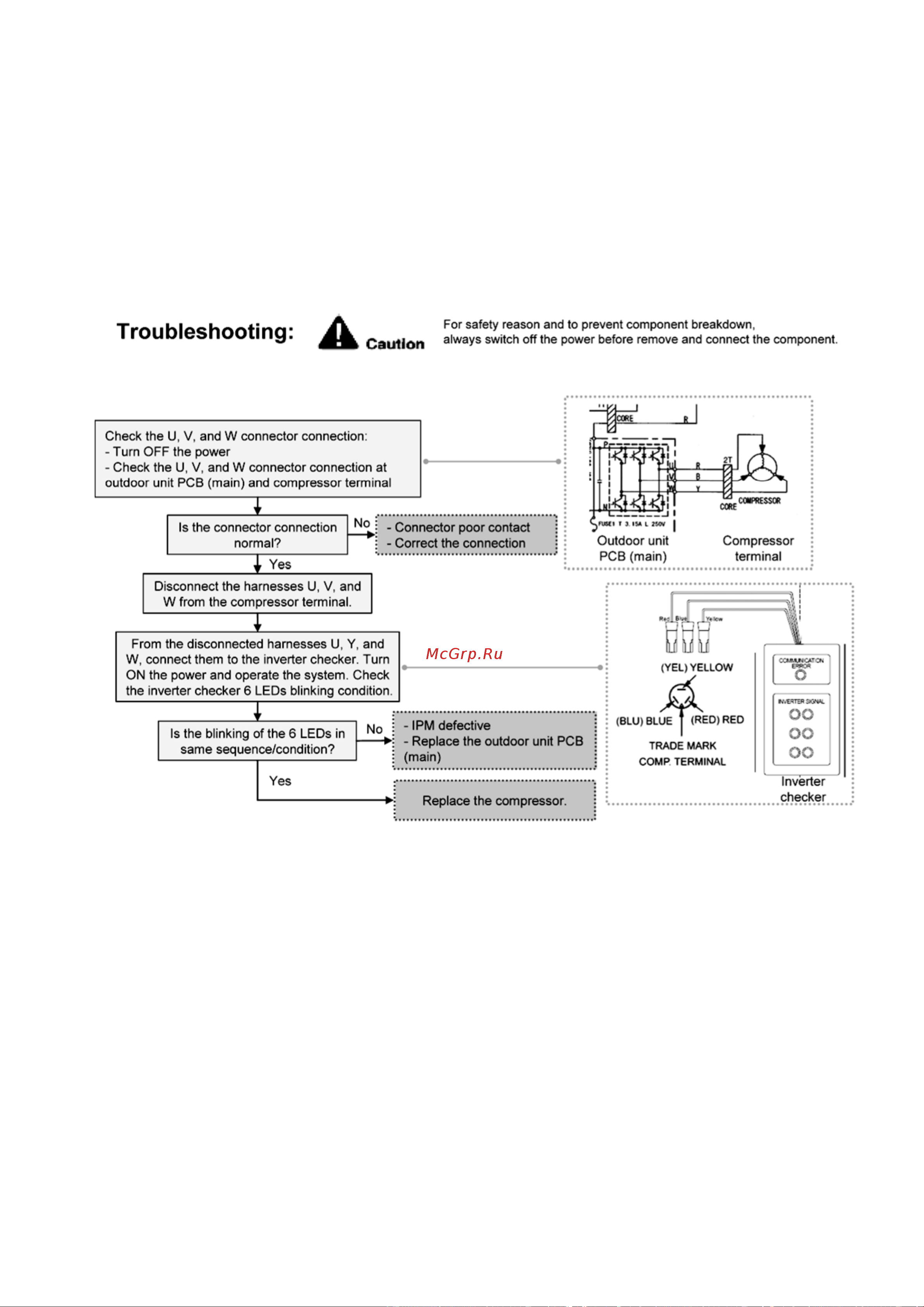

16.5.16 Compressor Rotation Failure (F14)

Malfunction Decision Conditions:

A compressor rotation failure is detected by checking the compressor running condition through the position

detection circuit.

Malfunction Caused:

1. Compressor terminal disconnect.

2. Faulty outdoor unit PCB (main).

3. Faulty compressor.

Abnormality Judgment:

Continue 4 times in 20 minutes.
