Panasonic WH-MXF12D3E8 [89/118] 0 ipm overheating f22
![Panasonic WH-MXF12D3E8 [89/118] 0 ipm overheating f22](/views2/1832911/page89/bg59.png)
89

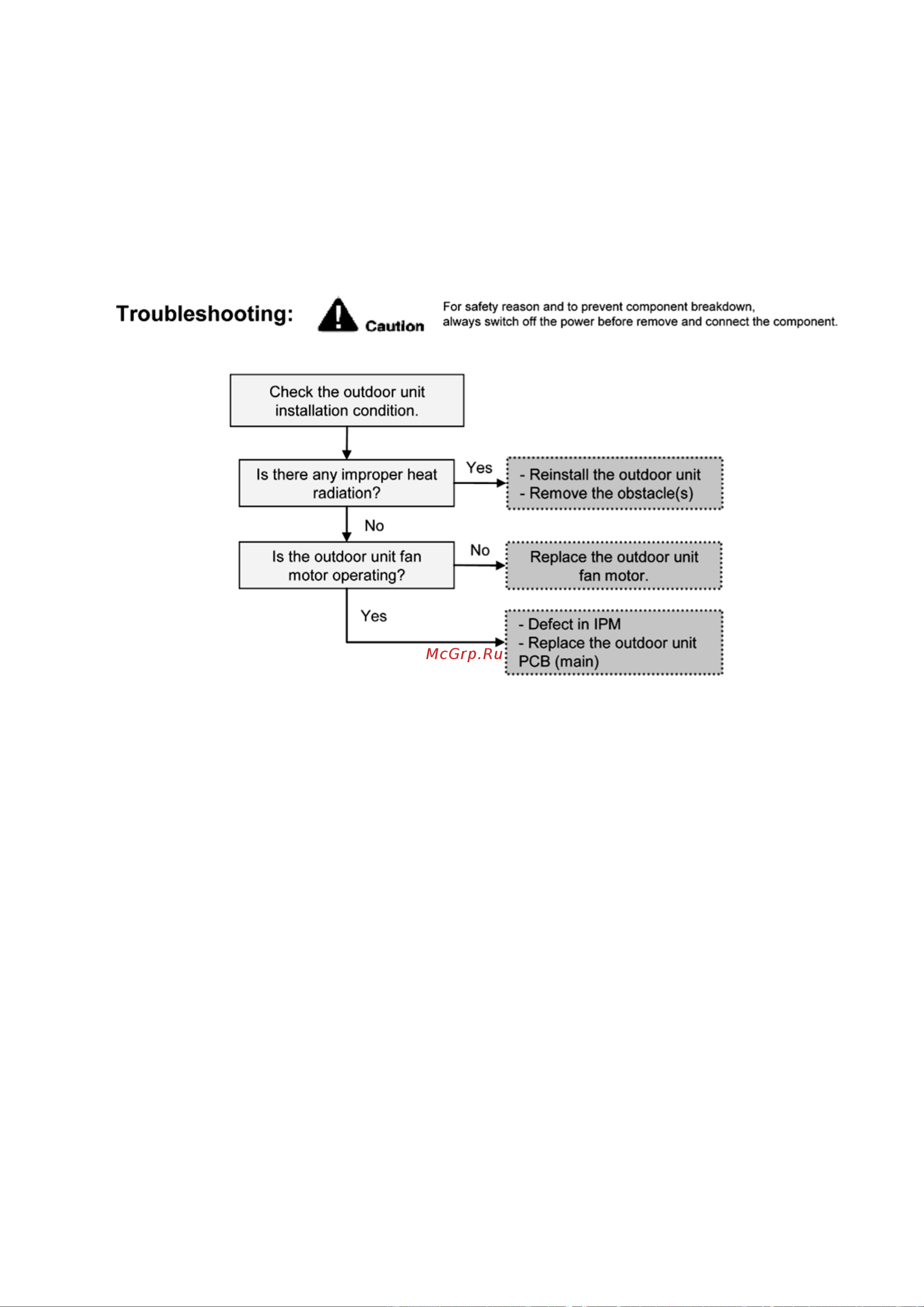

16.5.20 IPM Overheating (F22)
Malfunction Decision Conditions:
During operation of cooling and heating, when temperature 95°C is detected by the outdoor IPM temperature
sensor.
Malfunction Caused:
1. Faulty outdoor unit fan motor.
2. Faulty outdoor unit PCB (main).
Abnormality Judgment:
Continue 3 times in 30 minutes.
