11.4.3.4 Disposal of Mono bloc Unit Drain Water
• When a Drain elbow is used, please ensure to follow below:
o The unit should be placed on a stand which is taller than 50mm.
o Cover the 8 holes (ø20mm) with Rubber cap

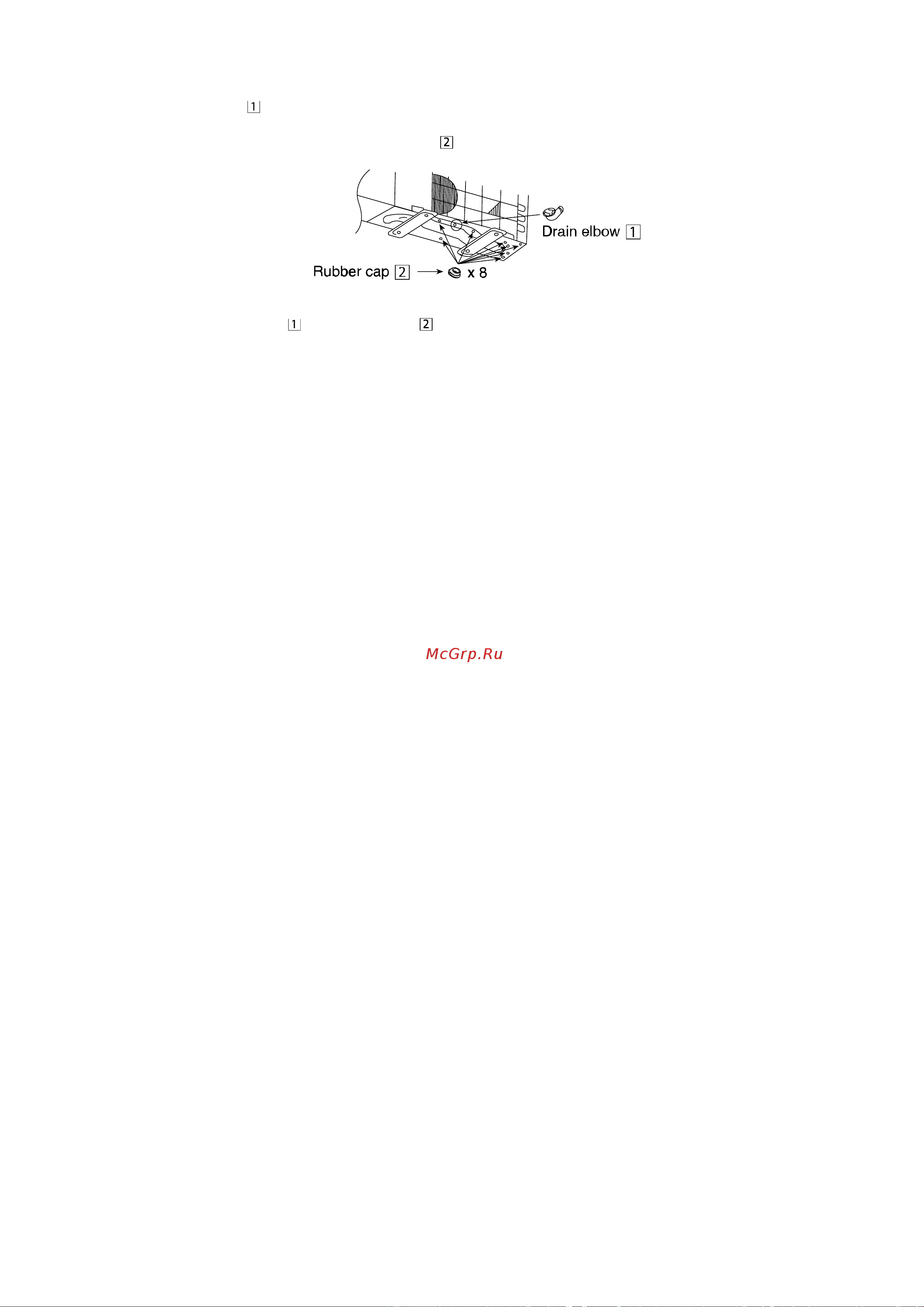

(refer to illustration below)
• If the unit is used in an area where temperature falls below 0°C for 2 or 3 consecutive days, it is recommended
not to use the Drain elbow
and Rubber cap , for the drain water freezes and the fan will not rotate.
