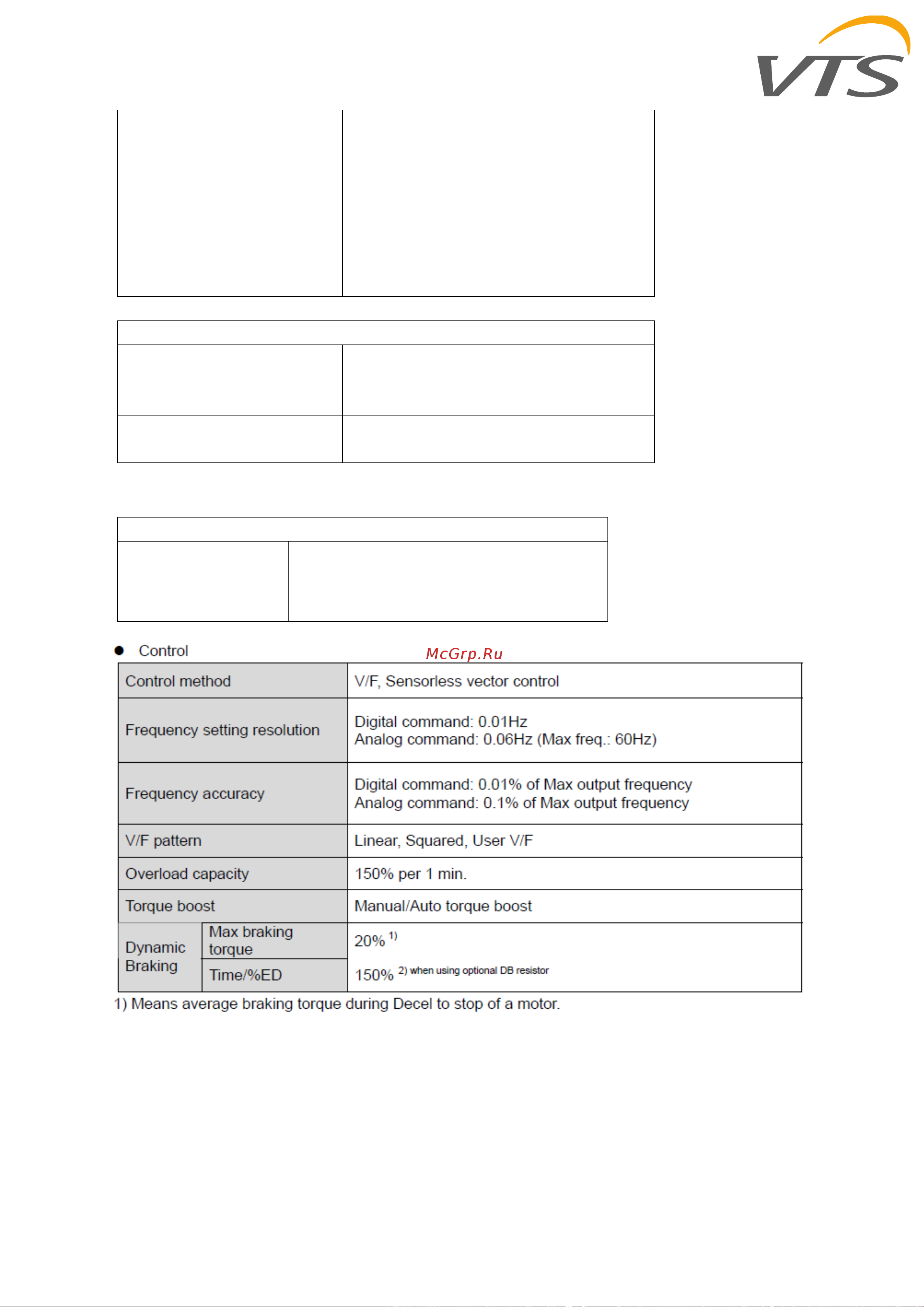

OMM-VTS-ver.6.3 (08.2022)
www.vtsgroup.us 43
Termination
Daisy-chained bus, without dropout lines
Isolation
Bus interface isolated from drive
Transfer rate
1.2 to 76.8 kbit/s
Communication Type
Serial, asynchronous, half duplex
Protocol
Modbus TRU (EIA-485);
Protocol – cont.
Johnson Controls N2;
Siemens Building Technology FLN (P1);
BACnet (MS/TP)
Programmable Control Connections
AC input chokes
External option
For reducing THD in partial loads and to
comply with EN/IEC 61000-3-12
AC output chokes
External option
To achieve longer motor cables
Table 33 LS: Frequency converter – Specs
Mains Connection
Voltage range
3 phase, 380 to 480V + 10% - 15%
Frequency input
50-60 [Hz] ± 5%
