Installation
12 309572ZAT
Installation
Description
The heated hose maintains proper fluid temperature
while spraying.
Fluid hoses are marked with red tape for
ISO/hardener/minor volume side, blue tape for
RES/resin/major volume side. Fittings have different
sized threads to prevent incorrect connection, which can
cause fluid crossover and permanently damage the
hose.
Hoses are 50 ft (15.2 m) or 25 ft (7.6 m) long. The whip
hose is 10 ft (3 m) long or less.
NOTE: To heat the major volume hose only in a wide
ratio system, see 15F144 Hose Wire Jumper, page 29.
Connect Whip Hose to Gun or Gun Manifold
NOTE: Install hose in a helix configuration for:
• Easy gun movement
• Large spraying motion
• Ability to spray in tight areas and odd angles
• Reduced operator fatigue
• Maximum hose life

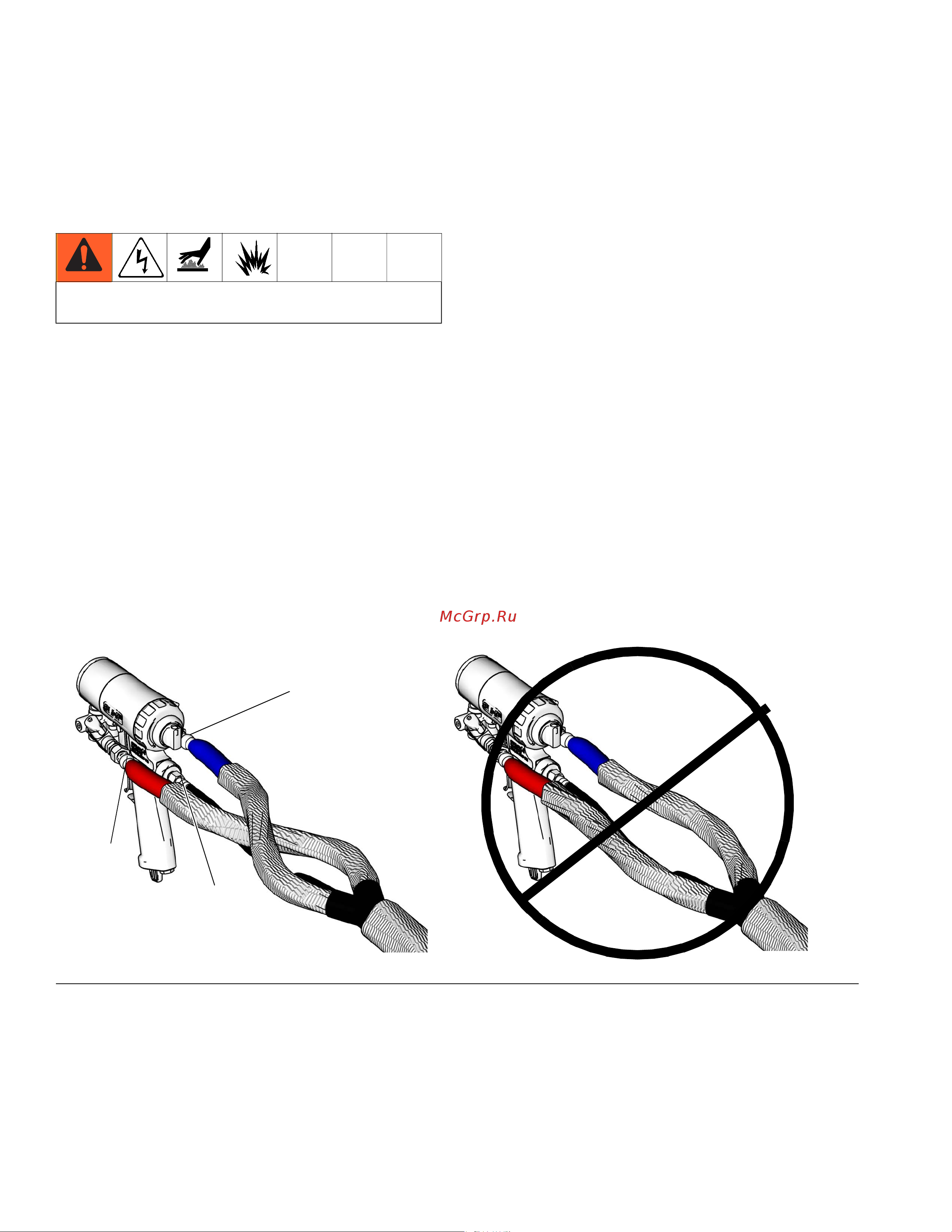

1. Overlap A and B component hoses and assemble to
gun or gun manifold fittings as shown in FIG. 1.
2. Tighten fittings to A and B component hoses.
Ensure hose remains flat after fittings are tightened.
Loosen and retighten fittings as necessary to
eliminate any torque on hoses. This will help
This hose must be used with an FTS and cable to
provide grounding.
FIG. 1
Tighten
Tighten
Tighten
TI12158a
TI14721a
