Installation
309572ZAT 15

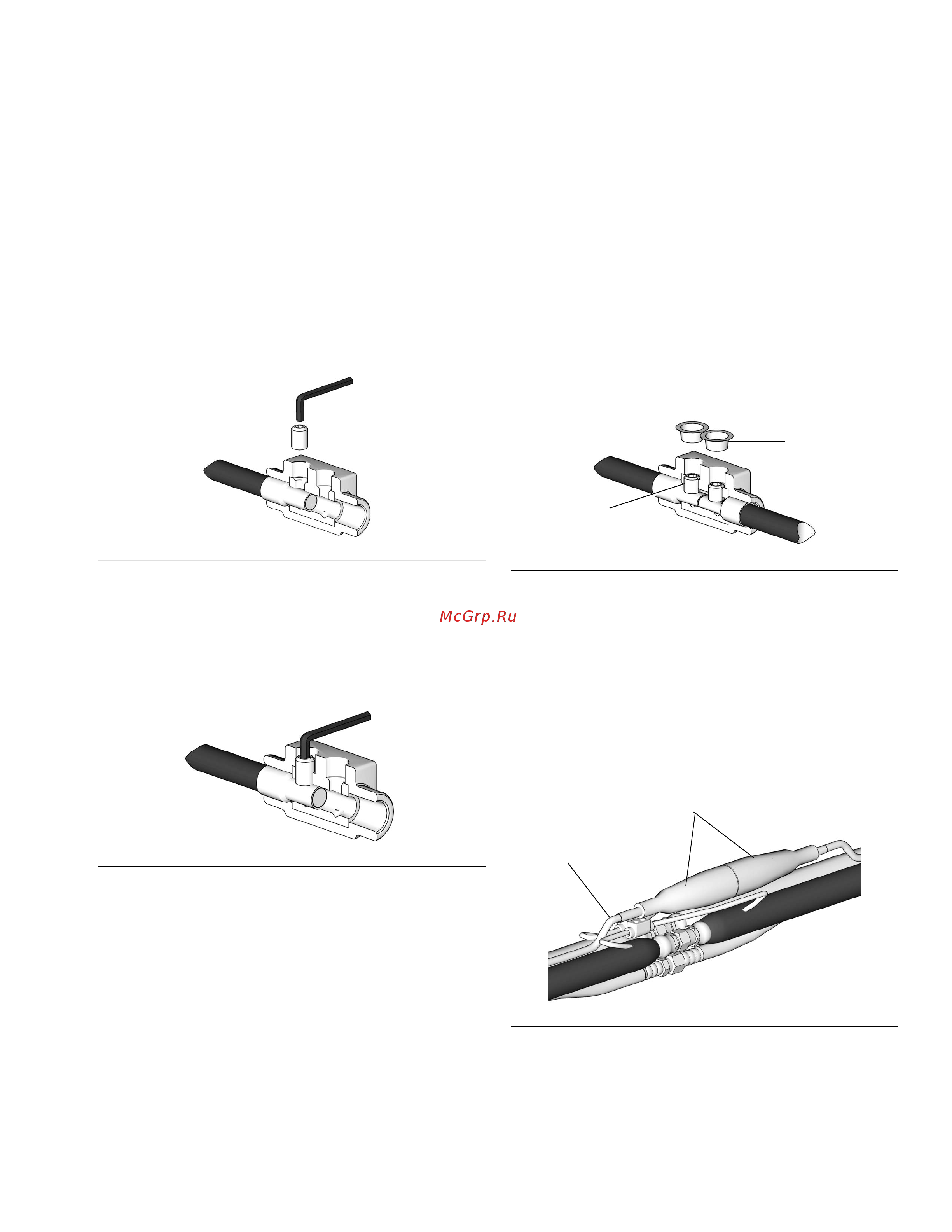

5. Connect the hoses to each other. Pair electrical
wires as follows: A-Hose to A-Hose; B-Hose to
B-Hose.
NOTE: When connecting first hose section to
proportioner, wire pairing does not make a difference.
NOTE: When connecting hose to the proportioner,
always check the hoses for leaks (see page 20).
a. Insert one wire from heated hose into
connector. Ensure that ferrule is mating with
connector insert. See F
IG. 8.
b. Thread in setscrew and use hex wrench to
torque setscrew to 60 in-lbs (6.78 N•m)
NOTE: To reach approximately 60 in-lbs (6.78 N•m),
complete 4.5 revolutions with hex wrench after setscrew
comes in contact with ferrule.
c. Insert remaining wire from pair into connector;
ensure proper insertion depth. Thread setscrew
and torque to 60 in-lbs (6.78 N•m); see sub-step
B. See F
IG. 8 and FIG. 9.
d. Repeat sub-steps A through C for remaining
wire pair.
e. Re-torque all four setscrews to 60 in-lbs (6.78
N•m).
NOTE: When torqued to 60 in-lbs (6.78 N•m) setscrews
will be approximately flush with connector. See F
IG. 10.
f. Insert cap plugs over setscrews. See F
IG. 10.
g. Wrap connector and wire on each side of
connector in black electrical tape to help seal
out moisture. Ensure 1 in. (25.4 mm) of wire on
each side of connector is wrapped.
6. For non-RTD hoses only, connect thermocouple
cables (4). Slide insulator sleeves (S) over
connection. Leave slack in cables as stress relief to
prevent cable failure.
F
IG. 8: Insert Wire and Setscrew
F
IG. 9: Torque Setscrew
TI9770A
TI9779A
FIG. 10
F
IG. 11
Cap plugs
Setscrews
TI9771A
TI2683B
S
4
