Operation
22 309572ZAT

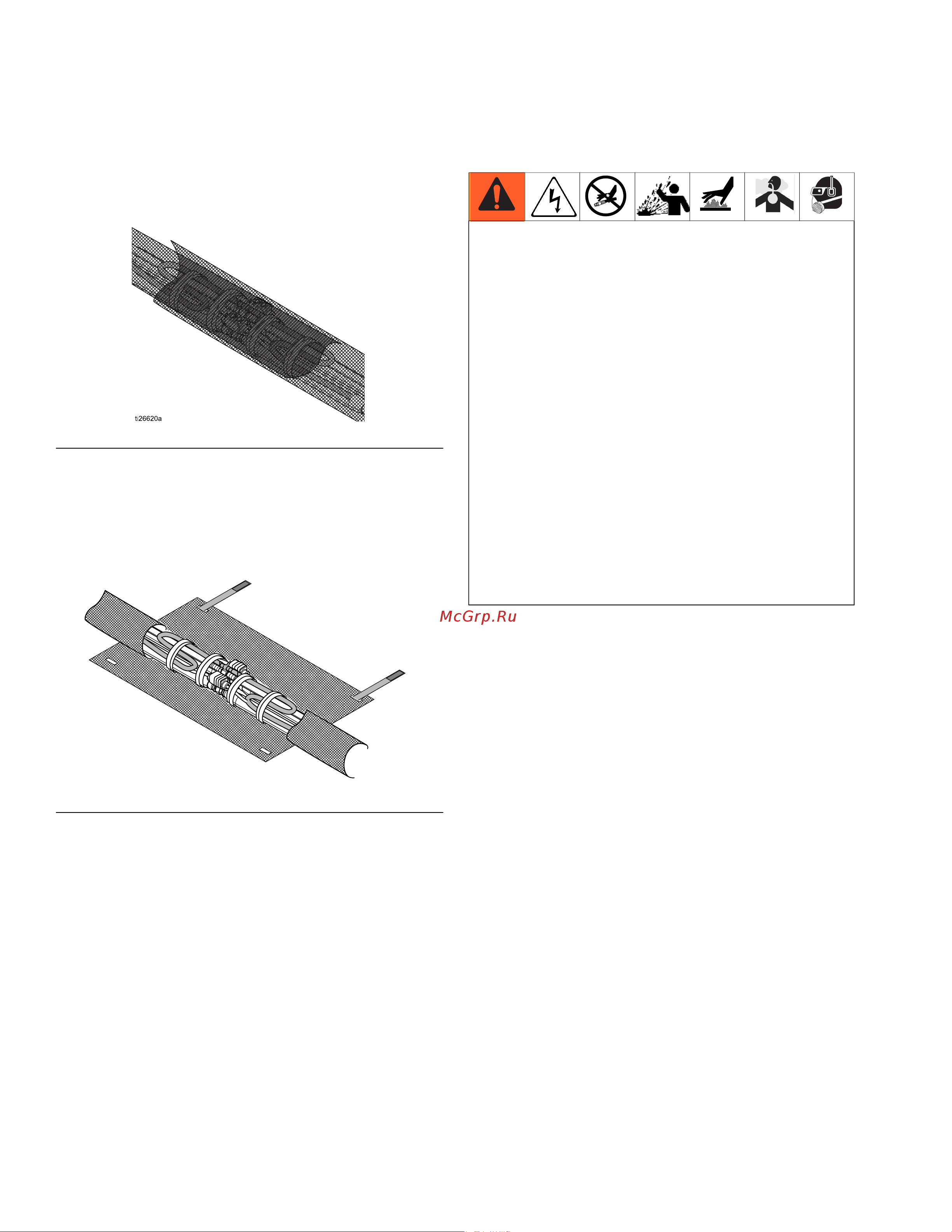

4. For hoses that include the standard braided
protective scuff cover, unroll excess cover over
hose and electrical connections. Tape securely.
5. For hoses that include Xtreme-Wrap protective
scuff, lay the protector flat and center over the joint.
With the straps on each side secured, wrap the
sleeve over the joint.
Operation
1. Connect air hose (3) to main air supply, if equipped.
2. Connect to spray gun.
NOTE: For best handling of gun, see page 12 for proper
hose connection.
3. Connect whip air hose to gun air inlet if equipped.
See gun manual.
4. Follow setup, startup, and operation procedures in
proportioner manual.
F
IG. 16
F
IG. 17
WLE
Do not operate a coiled hose. A coiled hose creates
uneven heat buildup which can result in hose rupture
and cause serious injury, including fluid injection.
Maximum hose operating temperature is 180°F
(82°C). If using hose without an FTS, measure hose
temperature to ensure it does not exceed 180°F
(82°C).
Hose must be properly supported to avoid excessive
strain due to weight, bending, sharp edges, or stress
caused by running over a roof edge.
Fluids subjected to heat in confined spaces, including
hoses, can create a rapid rise in pressure due to the
thermal expansion. Over-pressurization can result in
equipment rupture and serious injury.
• Open a valve to relieve the fluid expansion during
heating.
• Replace hoses proactively at regular intervals
based on your operating conditions.
