Comprag AV5510 [16/96] Connection to the compressed airline

Version 1.4

3.4 Connection to the compressed airline

Provide the throughput capacity of the compressed-air line in accordance with the perfor- mance of

the compressor. In order to avoid damage associated with seal failure of the compressed-air line, the

compressor should be connected via a exible hose. All components of the compressed-air line must

have a working pressure no less than the compressor’s nominal pressure. Use a pressure vessel with

a capacity corresponding to the compressor’s performance and the compressed air consumer.

3.5 Connecting to power supply

The compressor is not supplied with a power cable. The cable size must be chosen to ensure

that the maximum voltage drop not exceed 5 % of the nominal voltage value. Cable length

must not exceed 25 m. Ambient temperature in the facility must not exceed 40°C. The cable

must be sheathed with a re retardant compound. An isolating switch must be tted within

reach of the compressor to facilitate connection

and maintenance.

The compressor must be earthed and protected against short

cir- cuits in each phase, impermissible voltage uctuation and

phase failure.

The power cable has to be fed into the compressor.

1 2

3 4

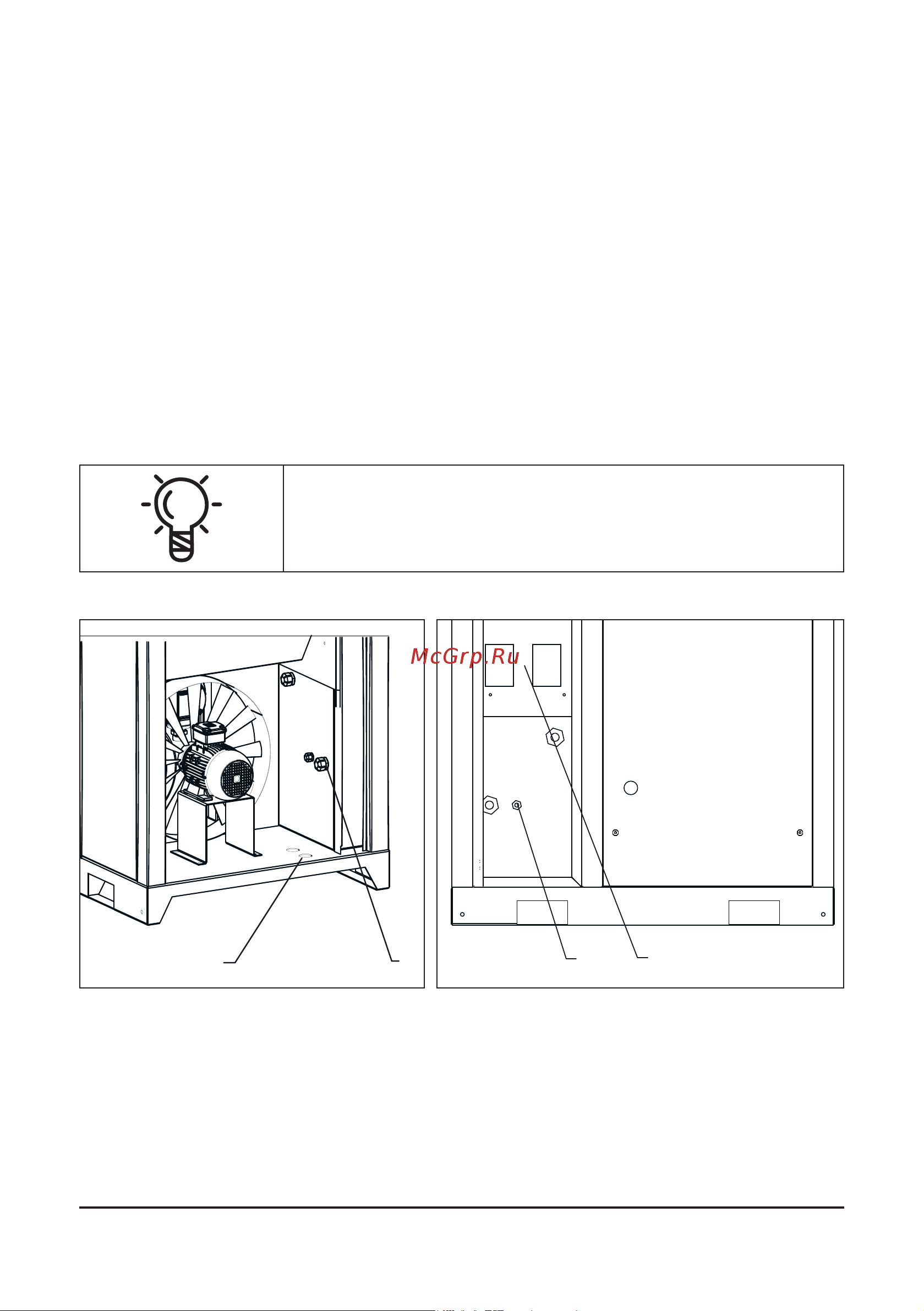

Fig. 3.5.1 Power cable connection

Remove the left side panel, pass the cable under the compressor into the orice (1) and ca-

ble gland (2). Connect the power supply cables to the terminal 4. The earth wire of the power

cable must be connected to the corresponding earthing bolt 3.

Fig. 3.5.2 Power cable terminal

connection
