TUF GAMING X570-PRO (WI-FI)
Инструкция по эксплуатации Страница: 43

Asus TUF GAMING X570-PRO (WI-FI) [43/68] Chapter 2

TUF GAMING X570-PRO (WI-FI)

2-9

Chapter 2

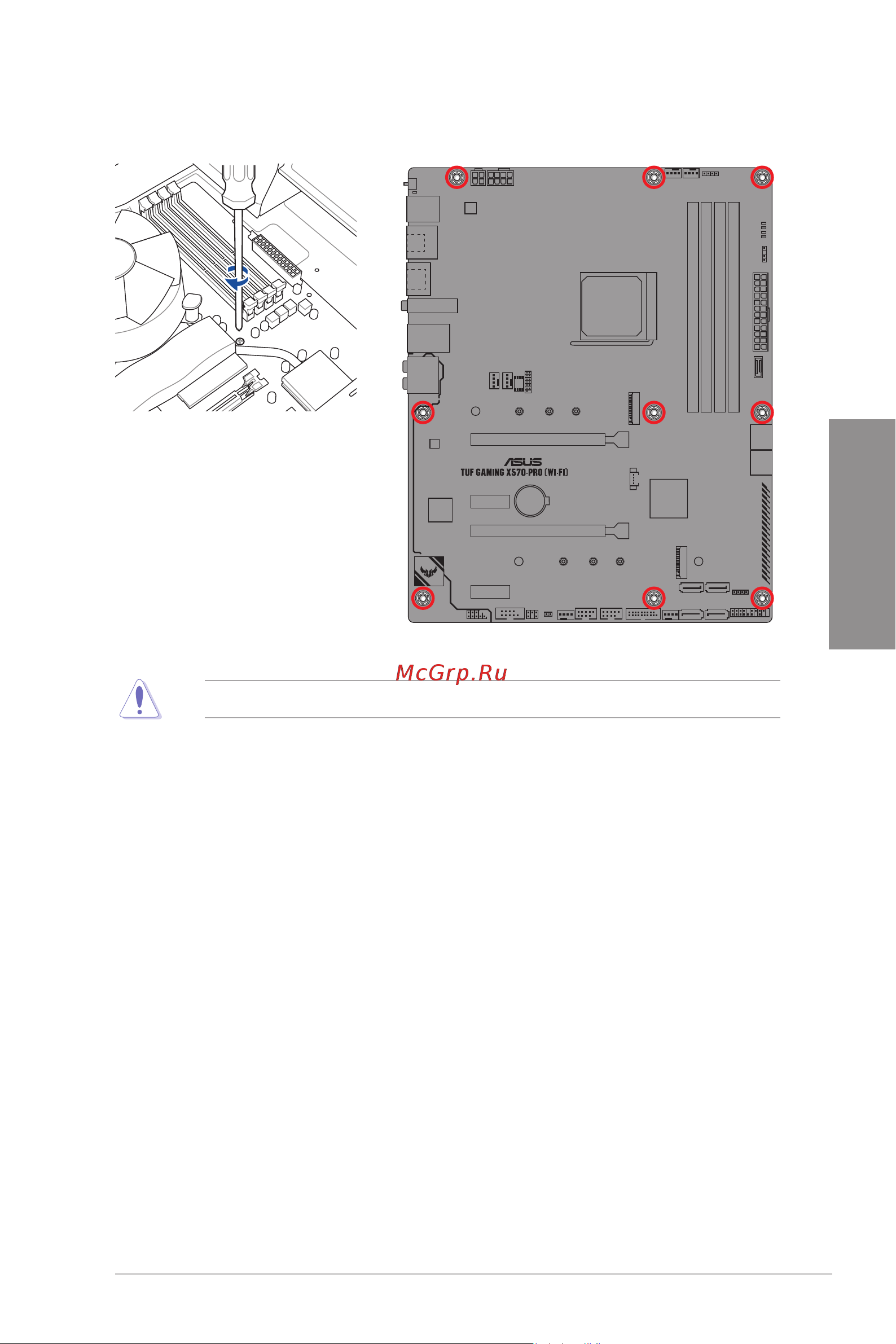

3. Place nine (9) screws into the holes indicated by circles to secure the motherboard to

the chassis.

DO NOT over tighten the screws! Doing so can damage the motherboard.
